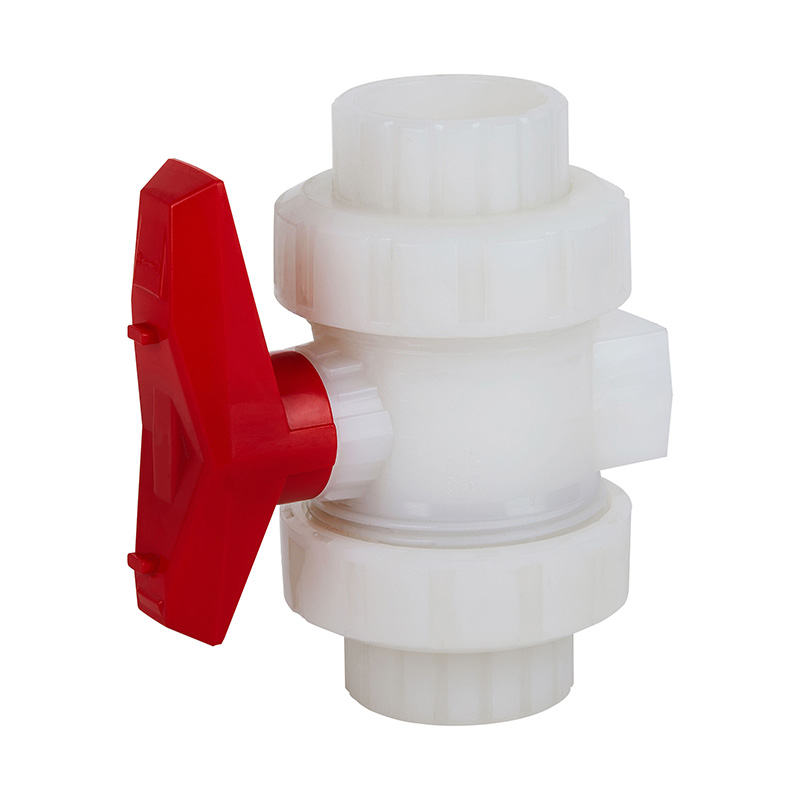

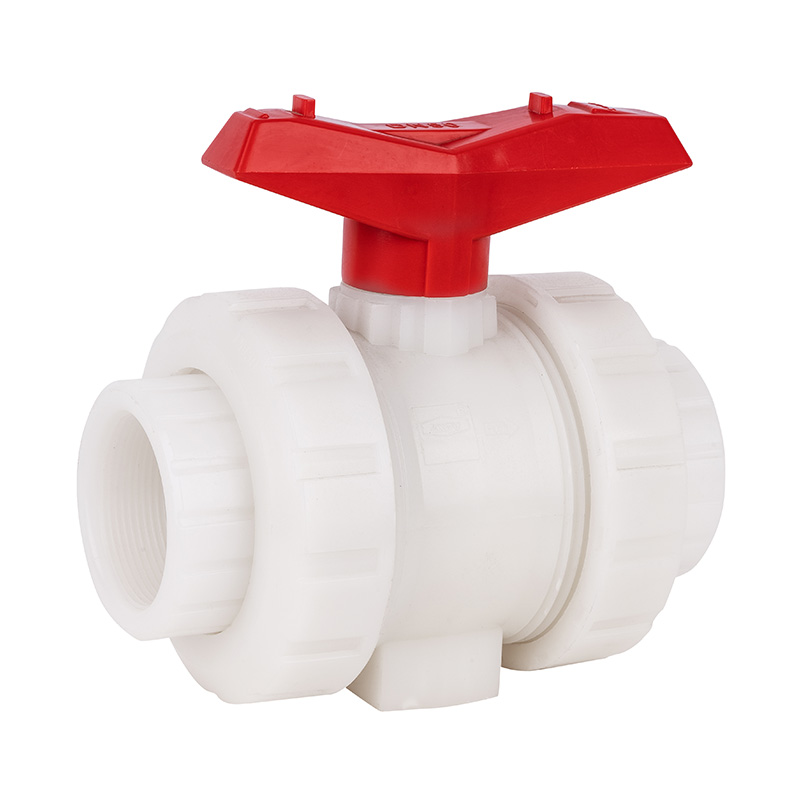

PVDF Q61F-10F Socket Ball Valve DN15-100 GB Standard

PVDF Q61F-10F Socket Ball Valve DN15-100 GB Standard

Albus 20mm-110mm summus temperatus super durabile Latin PVDF Duplex Unionis Socket Ball Valve 1.0-1.6Mpa ISO STD valvae Plasticae industriae Latin
Exemplar Number: Q61F-10F,Q11F-10F
Typus: SPHAERISTERIUM VALVES
Color: Alba
Applicationem: General
Materia: Plastic
Temperature Media: High Temperature
Potentia: Manual
Media: Acid
Portus Size: DN15-100 1/2"-4" 20mm-110mm
Structura: Ball
Product nomen: Socket Union pila valvae
Corpus materiale: PVDF
Connection: Unionis
Pressura Classis: 1.0Mpa（10bar）
Sarcina: Standard Carton Box
Design Standard: ISO STD
Sigillum Material: PTFE Sigillum
Delivery Time: 7 Days
MOQ: 1 Piece

Contact Us
PREV：PVC-U Q61F-10U Socket Ball Valve DN15-100 GB Standard
DEINDE：PPH Q61F-10S Socket Ball Valve DN15-100 GB Standard
Prod*uct Features structuralis

1. In PTFE sedes valvae pilae duplicatae unionis arcte accommodari possunt.
2. Duplex o-anulus duplex Leak praesidium praebent.
3. Exquisita species, superficies lenis, processus subtilis, pleno consilio fluxus.

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Pars Materia Tabula

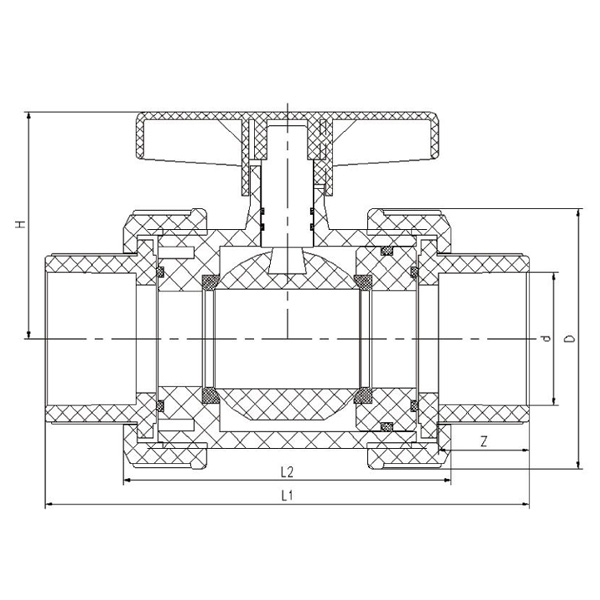

Socket Ball Valvae Conventus Detail Tractus

Nec. Nomen Material
1 Palpate Alloy materia
2 signantes anulum EPDM,FPM
3 Stem FRPP, PVDF, PVC-U,PVC-C,PPH
4 Ball FRPP, PVDF, PVC-U,PVC-C,PPH
5 signantes anulum EPDM,FPM
6 Tabule iungere FRPP, PVDF, PVC-U,PVC-C,PPH
7 retentis Nucis FRPP, PVDF, PVC-U,PVC-C,PPH
8 sigillum sede FRPP, PVDF, PVC-U,PVC-C,PPH
9 Signatum pila PTFE
10 Corpus FRPP, PVDF, PVC-U,PVC-C,PPH
11 signantes anulum EPDM,FPM
12 signantes anulum EPDM,FPM

Dimension List

DN D d L1 L2 Z H
15 48 20 105 80 17.5 42
20 60 25 127 92.5 23 52
25 72 32 144.5 107 26.5 61.5
32 82.5 40 171.5 114 36 80
40 100.5 50 183.5 128.5 34.5 87.5
50 112 63 201.5 146.5 38 95
65 133 75 232.5 159.5 44.5 113.5
80 154 90 284 190 53 130
100 172 110 340 230 65.5 153.5
