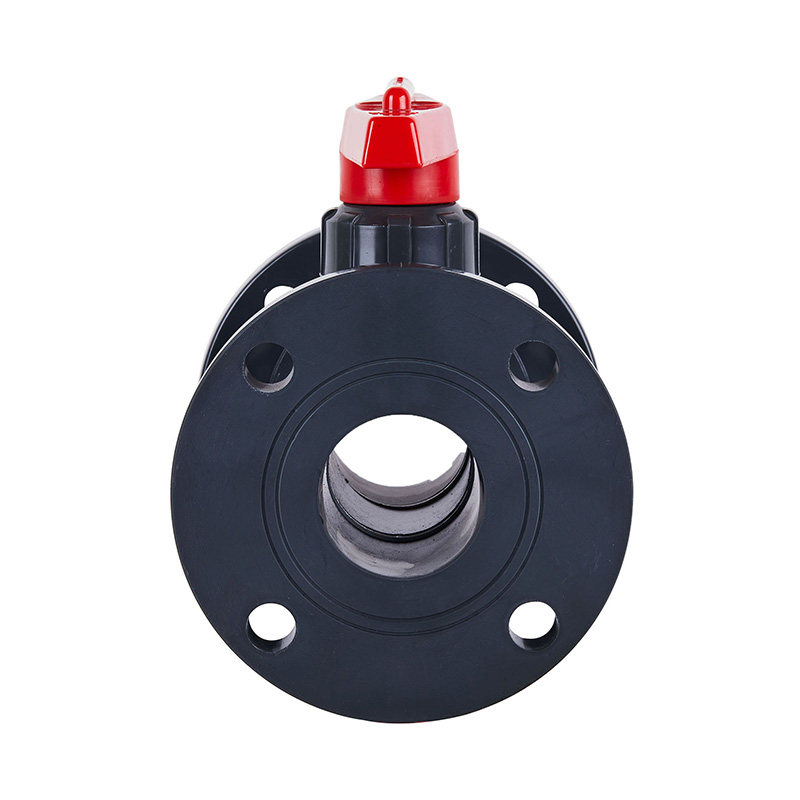

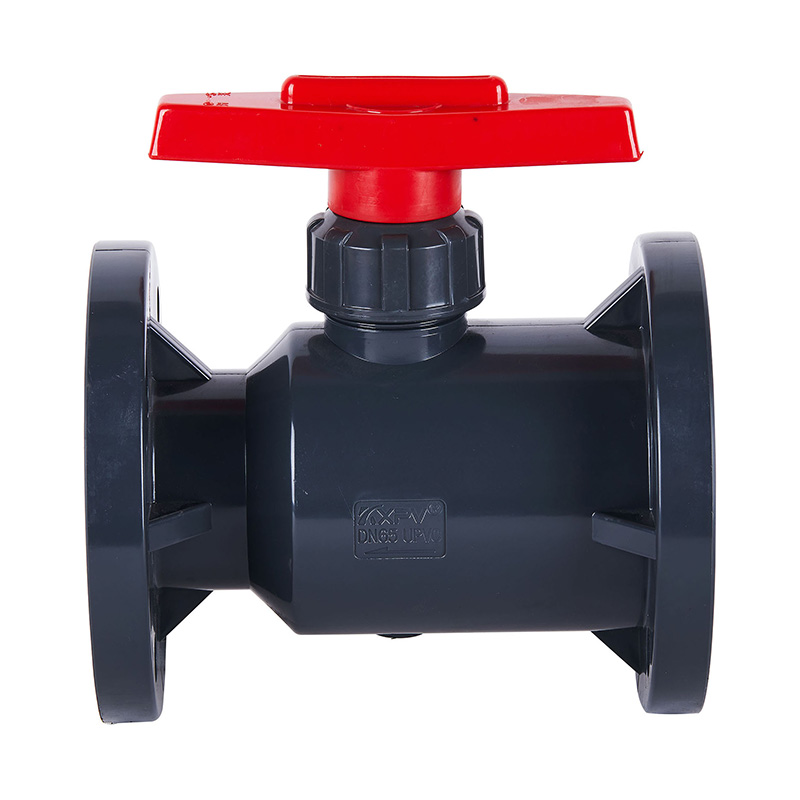

    PVC-U Q41F-10U Flanged Ball Valve DN15-300 GB Standard

    PVC-U Q41F-10U Flanged Ball Valve DN15-300 GB Standard

    Summus qualitas, summus temperatus, chemicus repugnant PVC-U valvae pilae flangae. PVC ANSI vexillum valvae industrialis sanitate plasticae.
    Exemplar Number: Q41F-10U
    Materia: Plastic
    Connection Form: Flange
    Modus incessus: Manual
    Pressura nominal: 10 kg
    Channel: Recta per Type
    Structura: fixa Ball Valve
    Munus: Industrial Ritus
    Temperatus: High Temperature
    Applicationem: Industrial Ritus, aqua Industrial Ritus
    Specification: DN15-DN100
    Latin: ANSI
    HS Code: 8481804090

    Pressura Classis: 1.0Mpa（10bar）

    Contact Us
    PREV：FRPP Q61F-10S Socket Ball Valve DN15-100 GB Standard
    DEINDE：PVDF Q41F-10F Flanged Ball Valve DN15-300 GB Standard
    Prod*uct Features structuralis

    1. Engineering series plasticae globulus valvae FRPP, PVDF, PVC-C, PVC-U, PPH etc. corrosio resistentiae plasticae thermoplasticae, quae in unam iniectionem fingitur formatae, validam facultatem habet ad corrosionem resistendi.
    2. Sigillum reliable, foramen parvum ac claudens Aureus Apertura et Aureus claudendi.
    3. Parva resistentia fluida, Open/prope cito.
    4.Simple structura, species pulchra.

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

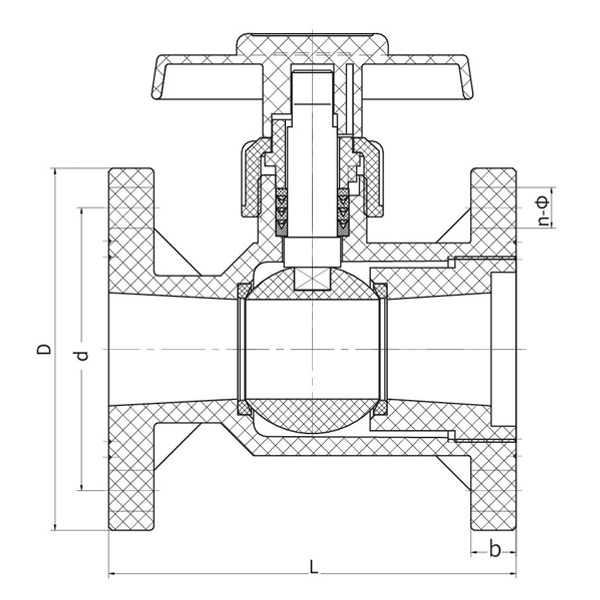

    Boddily forma Ball Valvae Conventus Detail Tractus

    Pars Materia Tabula

    Nec. Nomen Material
    1 Palpate Alloy materia
    2 retentis Nucis FRPP、PVDF、PVC-U、PVC-C、PPH
    3 Locating anulum FRPP、PVDF、PVC-U、PVC-C、PPH
    4 Stem FRPP、PVDF、PVC-U、PVC-C、PPH
    5 Sigillum caulis PTFE
    6 Signatum pila PTFE
    7 sigillum sede FRPP、PVDF、PVC-U、PVC-C、PPH
    8 Ball FRPP、PVDF、PVC-U、PVC-C、PPH
    9 Corpus FRPP、PVDF、PVC-U、PVC-C、PPH
    Dimension List

    DN(mm) D d L b n-φ
    GB JIS ANSI GB JIS ANSI GB JIS ANSI
    15(1/2") 95 95 65 70 120 15 4-15 4-φ15
    20(3/4") 105 100 100 75 75 69.9 120 16 4-φ15 4-φ15 4-16
    25(1") 120 125 110 85 90 79.4 130 16 4-φ15 4-φ19 4-φ16
    32 (11/4") 135 135 115 100 100 88.9 145 18 4-Φ18 4-Φ19 4-16
    40 (11/2") 145 140 125 110 105 98.4 168 20 4-p18 4φ19 4-φ16
    50(2") 160 155 150 125 120 120.7 180 20 4-φ19 4-φ19 4-18
    65(21/2") 180 175 180 145 140 139.7 225 22 4-19 4-Φ19 4-φ18
    80(3") 195 185 190 160 150 152.4 255 25 8-φ18.5 8-19 4-φ18
    100(4") 229 210 229 180 175 190.5 280 25 8-Φ18.5X20 8-Φ19 8-Φ18.5X20
    125(5") 254 250 254 210 210 215.9 350 30 8-Φ18.5X20 8-Φ23 8-φ22
    150(6") 280 280 280 240 240 241.3 400 30 8-Φ24X27 8-Φ24X27 8-Φ24X27
    200(8") 335 330 335 295 290 298.5 400 35 8-Φ23 12-Φ23 8-Φ22
    250(10") 400 400 400 350 355 362 450 38 12-φ23X26 12-φ25 12-φ26
    300(12") 440 440 400 400 450 38 12-Φ23 16-Φ25
