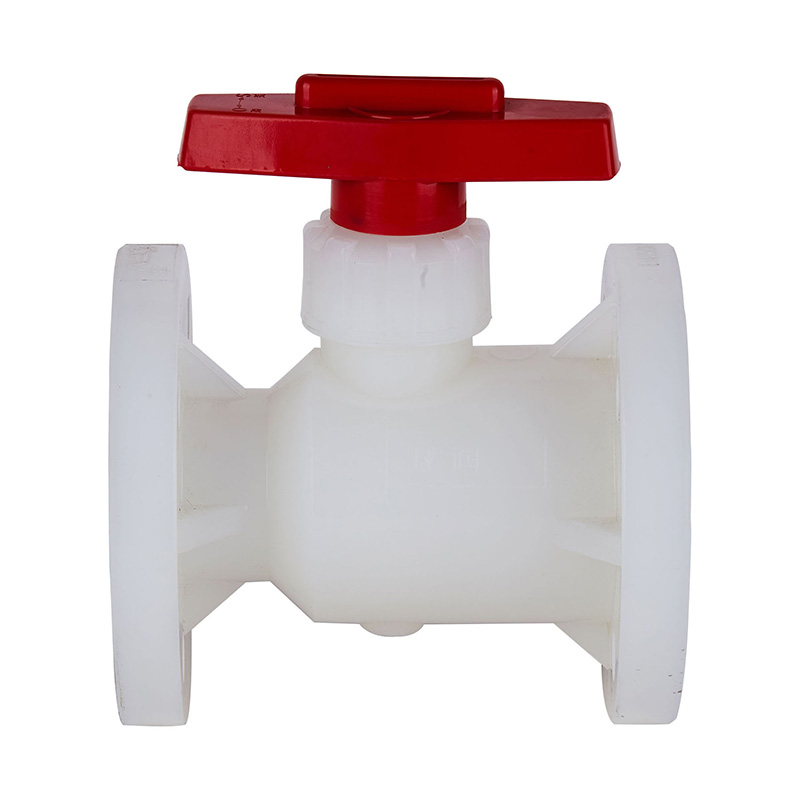

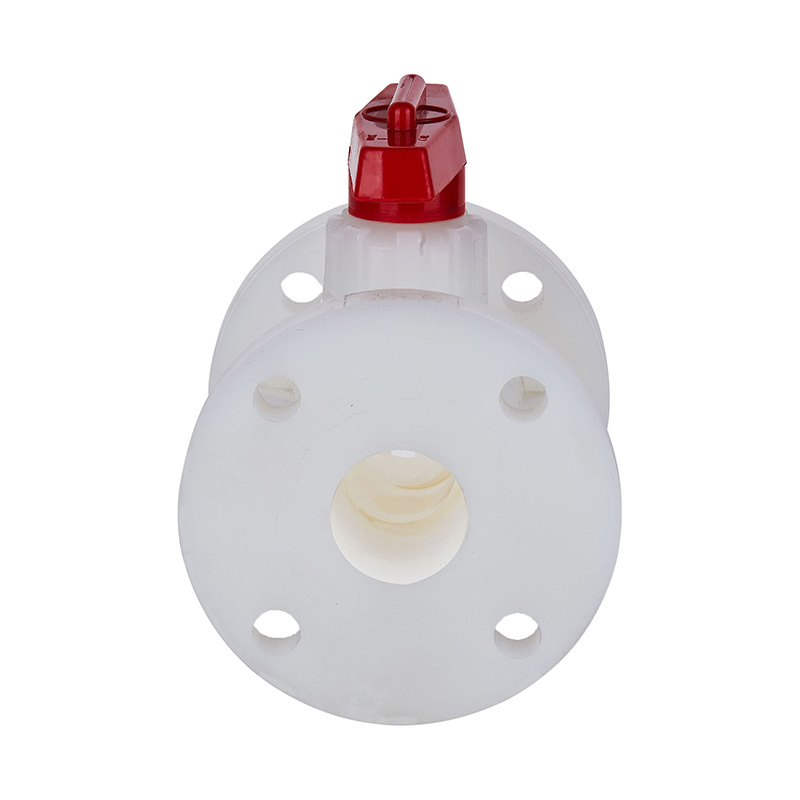

Plastic PVDF segmentum trunnion Flange Ball Valve
Exemplar NO.:Q41F-10F
Type: BALL VALVES, 2way
Material: Plastic
Color: White
Connection Form:Flange
Coegi Modus: Manual
Nominal Pressura: 10kg
Channel: Recta per Type
Structura: fixa Ball Valve
Corpus materiale: PVDF
Munus: bypass-Valve
Temperature: High Temperature
Applicationem: Industrial Ritus, aqua Industrial Ritus
Specification: DN15-DN300
Standard: ANSI
Sigillum Material: PTFE
Origin: Beilun Ningbo China
HS Code: 8481804090
MOQ:2 Pc
| Features principalis structuralis |
1. Engineering seriei plasticae valvae globuli FRPP, PVDF, CPVC, UPVC, PPH etc. corrosio resistentiae plasticae th*ermoplasticae quae in unam iniectionem fingitur formatur et validam facultatem ad corrosionem resistendi habet.
2. Sigillum reliable, foramen parvum ac claudens torques Apertura et torques claudendi.
3. Parva resistentia fluida, Open/prope cito.
4. Simplex structura, pulchra species.
| App temperatus tenetur album |
| Materia | Medium temperatus°C | Materia | Medium temperatus°C |
| CPVC | -20℃~ 95℃ | PPH | -20℃~ 110℃ |
| UPVC | -0℃~ 65℃ | PVDF | -40℃~ 150℃ |
| FRPP | -14℃~ 90℃ |
Corporaliter forma Ball Valvae Conventus Detail Tractus
| Pars Materia Tabula |
| Nec. | Nomen | Material |
| 1 | Palpate | Aluminium alloy |
| 2 | retentis Nucis | FRPP、PVDF、UPVC、CPVC、PPH |
| 3 | Interiorem Plug | FRPP、PVDF、UPVC、CPVC、PPH |
| 4 | Stem | FRPP、PVDF、UPVC、CPVC、PPH |
| 5 | Sigillum caulis | PTFE |
| 6 | Signatum pila | PTFE |
| 7 | sigillum sede | FRPP、PVDF、UPVC、CPVC、PPH |
| 8 | Ball | FRPP、PVDF、UPVC、CPVC、PPH |
| 9 | Corpus | FRPP、PVDF、UPVC、CPVC、PPH |
| Dimension List |
| DN (mm) | D1 | D | L | h | n | Φ | ||||||
| GB | JIS | ANSI | GB | JIS | ANSI | GB | JIS | ANSI | ||||
| 15(1/2") | 95 | 65 | 70 | 2.38 | 120 | 15 | 4 | 4 | 4 | 14 | 15 | 16 |
| 20 (3/4") | 105 | 75 | 75 | 2.76 | 120 | 16 | 4 | 4 | 4 | 14 | 15 | 16 |
| 25 (1) | 120 | 85 | 90 | 3.13 | 130 | 16 | 4 | 4 | 4 | 14 | 19 | 16 |
| 32 (11/4") | 135 | 100 | 100 | 3.45 | 145 | 18 | 4 | 4 | 4 | 18 | 19 | 16 |
| 40 (11/2") | 145 | 110 | 105 | 3.88 | 168 | 20 | 4 | 4 | 4 | 18 | 19 | 16 |
| 50 (2) | 160 | 125 | 120 | 4.74 | 180 | 20 | 4 | 4 | 4 | 18 | 19 | 19 |
| 65 (21/2"). | 180 | 145 | 140 | 5.49 | 225 | 22 | 4 | 4 | 4 | 18 | 19 | 19 |
| 80 (3). | 195 | 160 | 150 | 6 | 260 | 25 | 8 | 8 | 4 | 18 | 19 | 19 |
| 100 (4") | 215 | 180 | 175 | 7.5 | 280 | 25 | 8 | 8 | 8 | 18 | 19 | 19 |
| 125 (5). | 245 | 210 | 210 | 8.5 | 350 | 30 | 8 | 8 | 8 | 18 | 23 | 22 |
| 150 (6) | 280 | 240 | 240 | 9.51 | 400 | 30 | 8 | 8 | 8 | 22 | 23 | 22 |
| 200 (8). | 335 | 295 | 290 | 11.75 | 400 | 35 | 8 | 12 | 8 | 22 | 23 | 22 |
| 250 (10") | 390 | 350 | 355 | 14.25 | 450 | 38 | 12 | 12 | 12 | 22 | 25 | 25 |
| 300 (12") | 445 | 400 | 400 | 17 | 450 | 38 | 12 | 16 | 12 | 22 | 25 | 25 |
| Locus: | China |
| Negotium Type: | Manufacturer, Exporter |
| Brands: | |
| Testimonium: | |
| Exemplar: | |
| Termini solucionis et traditio; | |
| Ordo minimi quantitatis: | |
| Pretium: | Consultatio |
| Stipare singula: | |
| Delivery time: | |
| Solucionis modum: |
A Lorem Manufacturer cum Quality Products, Rationabile Price et Bonum Services.
