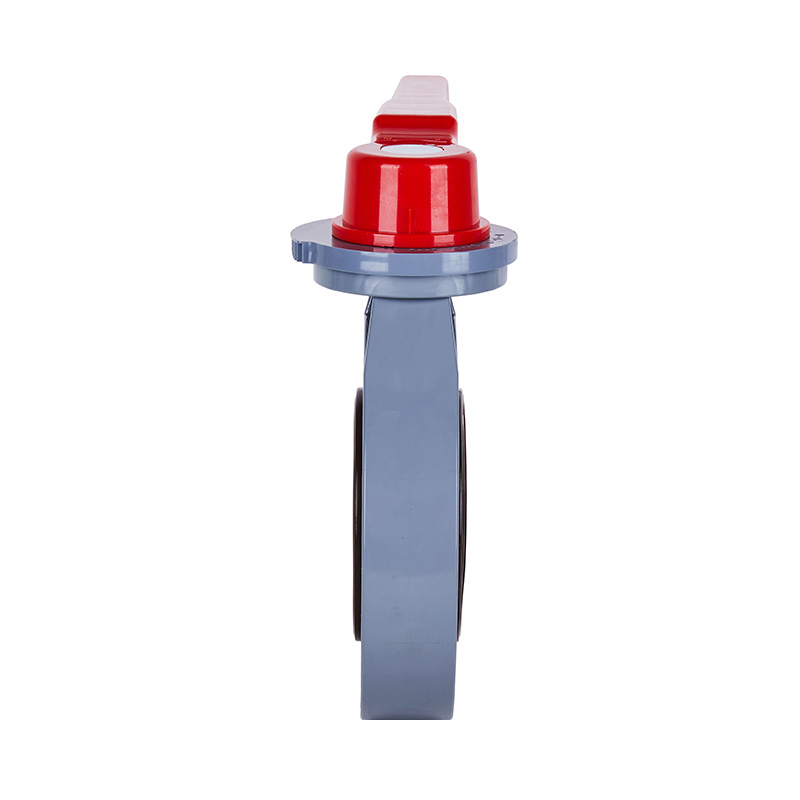

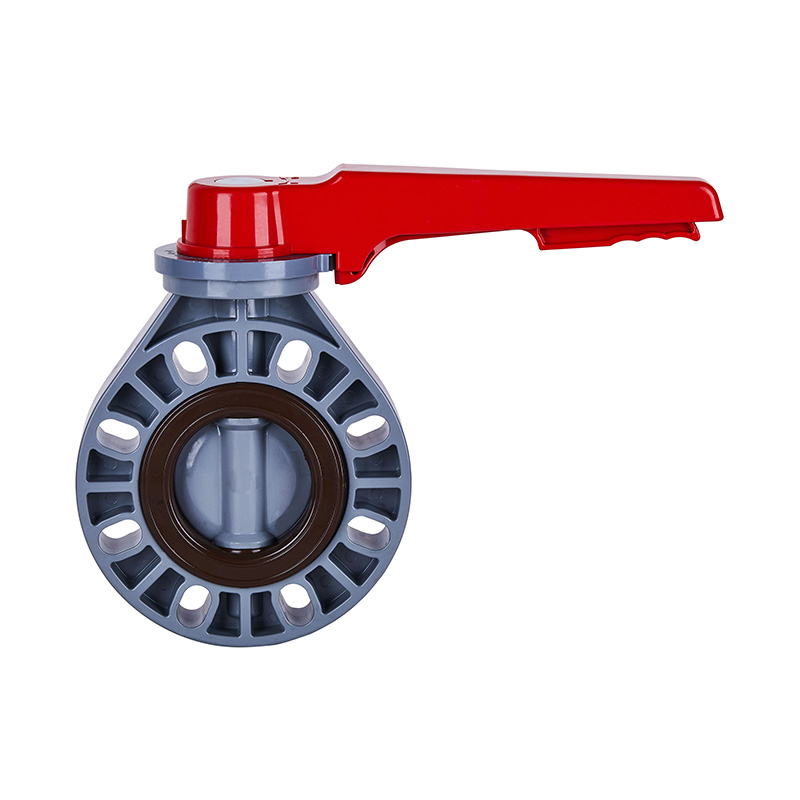

    PVC-C D71X-10V Palpate Papilio Valve DN40-200 1-1/2'-8' ANSI Standard

    PVC-C D71X-10V Palpate Papilio Valve DN40-200 1-1/2"-8" ANSI Standard

    Custom Brand New PVC-C Hand Lever Smooth Stem DN15-200 Butterfly Valve, Gray, DIN, JIS, ANSI Standard, 4-Inch Flanged Plastic Valve ANSI Standard
    Brand: KXPV
    Exemplar: D71X-10V
    Applicationem: General
    Materia: Plastic
    Color: Gray / Black / Red
    Medium Temperature: High, Medium
    Pressura: Medium
    Potentia Supple: Manuale
    Medium: Acid
    Portus Location: DN40-DN150
    Structure: Gloria
    Corpus Materialium: PVC-C
    Connection: Flanged finis
    Standard: GB/T27725
    Usus: Industrial
    Laborans Temperature: -20~95℃
    Delivery Time: 7 Days
    Minimum Order Quantity: 1 Piece

    Pressura Classis: 1.0Mpa（10bar）

    Contact Us
    PREV：PVDF D71X-10F Palpate Papilio Valve DN40-200 1-1/2"-8" ANSI Standard
    DEINDE：PVC-U D71X-10U Palpate Papilio Valvae DN40-200 1-1/2"-8" ANSI Standard
    Product Features structuralis
    1. Plectrum compactum et leve est, facile disgregat et conservatur, et quovis loco institui potest.
    2. Simplex et compacta compages cum torque operante humili, permittens celeri XC° gyrationis ad foramen velox.
    3. Linear fluxus habet cum optima regula perficiendi

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Pars Materia Tabula

    Nec. Nomen Materia Qty.
    PVC-C PVC-U PVDF PPH FRPP
    1 Palpate Admisce materia 1
    2 Locating rod Admisce materia 1
    3 Positioning plate Admisce materia 1
    4 Nucis Cup FRPP PPH FRPP 4
    5 Corpus PVC-C PVC-U PVDF PPH FRPP 1
    6 Disc PVC-C PVC-U PVDF PPH FRPP 1
    7 signantes rubber FPM EPDM FPM EPDM 1
    8 Stem Steel 1
    9 Pin Steel 1

    Dimension List

    Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
    1½»(40) 148 96 110 41.5 39 4-Φ19*25
    2"(50) 162 108 125 48.5 43 4-Φ19*26
    2½» (65) 180 128 145 63 45 4-Φ19*26
    3»(80) 196 148 160 75.5 45 8-Φ19*24
    4"(100) 225 168 191 95 56.5 8-Φ19*29
    5» (125) 255 200 216 120 65 8-Φ23*31
    6"(150) 285 225 241 143.5 75 8-Φ23*31
    8"(200) 340 280 299 195 85 8-Φ23*32
    JIS:12-Φ23*27
