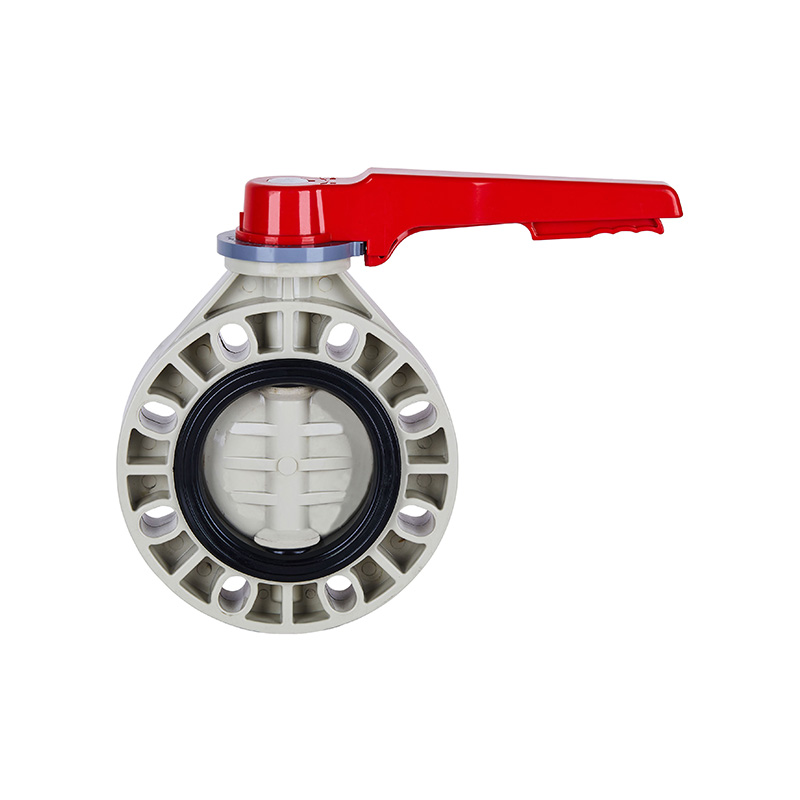

PPH Type B Palpate Papilio Valvae DN40-200

PPH Type B Palpate Papilio Valvae DN40-200

FRPP / Rpp manus Rota Type Papilio CYMBALON Manual Centrum signavit Mollis obsignatum DN40-DN150 Plastic Lever palpate Valvae pro Industrialand hospitii Usu

Coegi Modus: Manual

Connection Form: laganum

Structura: Centre signare

Forma sigilli: Force signati

Valvae Caulis: Normal

Opus Pressura: Minimum Pressura (Pn <1.6mpa)

Opus Temperature: Normal Temperature (-40° C

Materiam Sigilli Superficies: Mollis obsignatum

Applicatio: Industrialis Ritus, Aquae Industrialis Ritus, Familia Ritus

Caulis: Steel, Steel

Trademark: KXPV

Specification: DN40- DN150

Origin: Beilun Ningbo China

HS Code: 8481804090

PREV：CPVC Type B Palpate Papilio Valvae DN40-200
NEXT：PVDF manus rota genus papilio valvae 0086 180 6712 3173 Nobis loquere
  • Descriptio
  • Additional Information
  • Praecipua structural Features

    1. Plectrum parvum et leve est, facile disgregat et reparatur, et quovis loco institui potest.

    2. Structura simplex & compacta est, & Aureus operans parvus est, & velociter 90° gyrationis aperitur.

    3. Fluxus notae rectae tendunt ac commensurationem perficiendi bonum est.

    Pars Materia Tabula

    Nec.

    Nomen

    Materia

    1

    manubrium caput

    Alloy materia

    2

    Sexangulus nut

    Ferro, Diver

    3

    Manus Whell

    Alloy materia

    4

    Stem

    Ferro, Diver

    5

    Ver

    Steel

    6

    Adjust positioning laminam

    Alloy materia

    7

    Pin

    Steel

    8

    Locating rod

    Alloy materia

    9

    Corpus

    FRPP, PVDF, CPVC, UPVC, PPH

    10

    signantes rubber

    EPDM,FPM

    11

    Disc

    FRPP, PVDF, CPVC, UPVC, PPH

    Palpate Papilio Valvae Conventus Detail Drawin

    Pars Material Tabula

    NO.

    partes Nomen

    Material

    Qty.

    1

    Capulus

    Admisce Material

    1

    2

    Locating Rod

    Admisce Material

    1

    3

    Positioning plate

    Admisce Material

    1

    4

    Nucis Cup

    FRPP

    4

    5

    Corpus

    FRPP, PVDF, CPVC, UPVC, PPH

    1

    6

    Disc

    FRPP, PVDF, CPVC, UPVC, PPH

    1

    7

    Flexilis sigillum

    EPDM, FPM

    1

    8

    Stem

    Ferro, Diver

    1

    9

    Pin

    Stell

    1

    Dimension List

    DN

    D1

    D2

    D3

    T

    n-Φ

    40

    148

    110

    41.5

    39

    4-Φ19

    50

    162

    125

    48.5

    43

    4-Φ19

    65

    180

    145

    63

    45

    4-Φ19

    80

    196

    160

    75.5

    45

    8-Φ19

    100

    225

    180

    95

    56.5

    8-Φ19

    125

    255

    210

    120

    65

    8-Φ2

    150

    285

    240

    143.5

    75

    8-Φ23

    200

    340

    295

    195

    85

    8-Φ23
