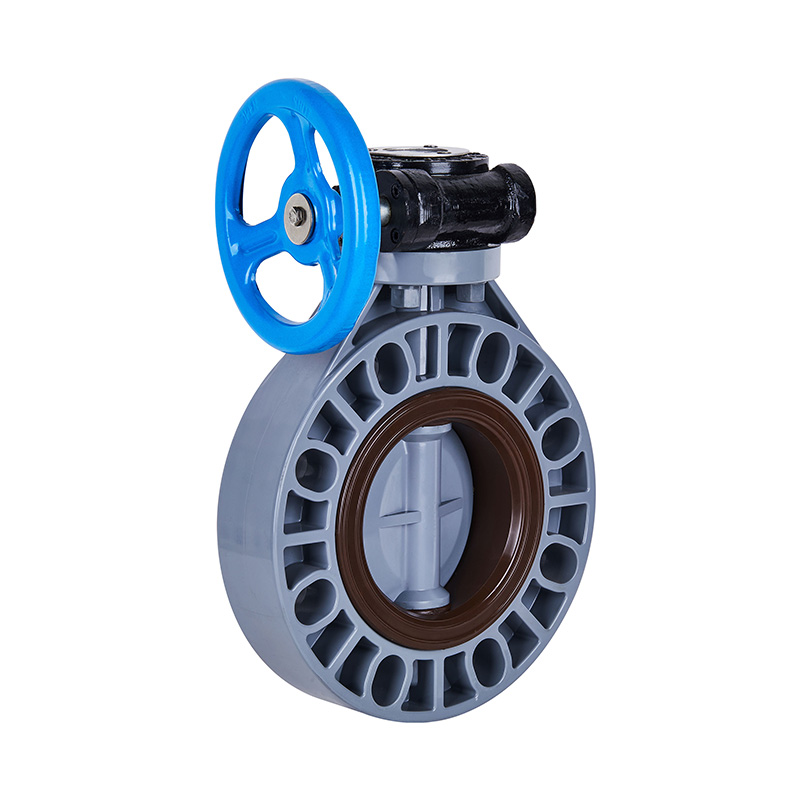

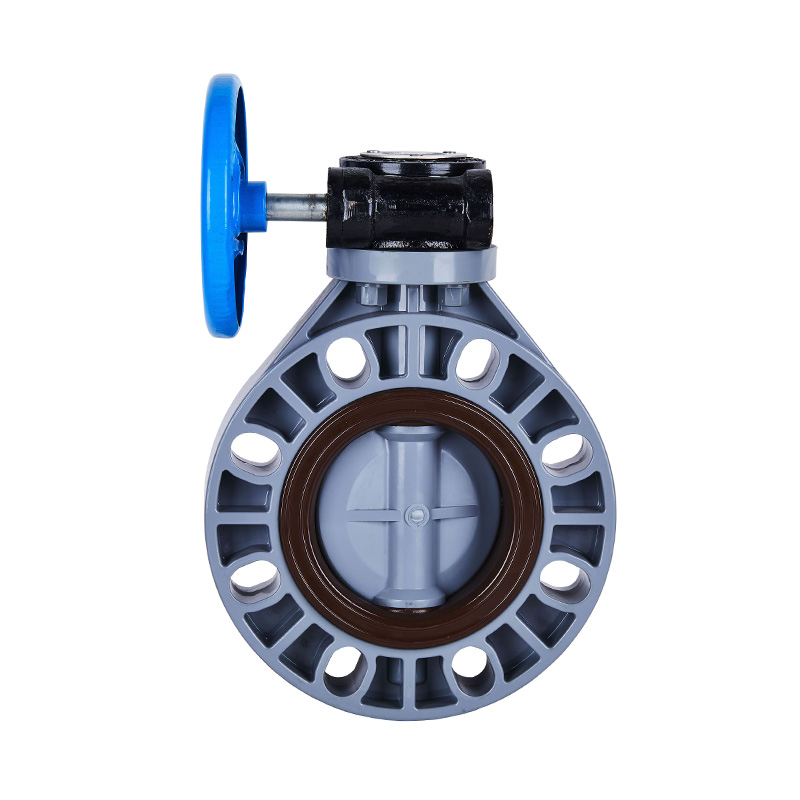

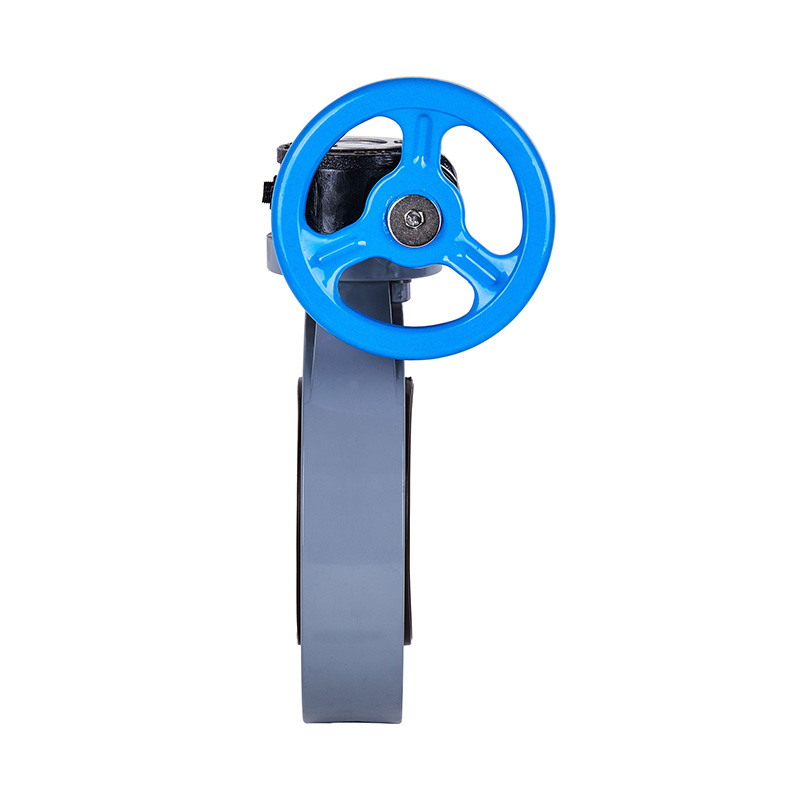

PVC-C D371X-10V Worm-Gear Butterfly Valve DN40-1000 40A-1000A JIS Standard

PVC-C D371X-10V Worm-Gear Butterfly Valve DN40-1000 40A-1000A JIS Standard

Custom Brand New PVC-C Worm Gear Smooth Shaft DN40-1000 Butterfly Valve, Gray, DIN, JIS, ANSI Standard, 4-inch Flange End Plastic Valve
Nomen notam: KXPV
Exemplar: D371X-10V
Applicationem: General
Materia: Plastic
Color: Gray, nigrum, rubrum
Media Temperature: High, Medium
Pressura: Medium
Potentia Supple: Manuale
Media: Acid
Portus Size: DN40-1000
Constructio: Gloria
Corpus Materialium: PVC-C
Connection: Flange finis
Standard: GB/T27725
Applicationem: Industrial
Temperatus operans: -20°C ad 95°C
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Pressura Classis: 1.0Mpa（10bar）

Contact Us
PREV：PVDF D371X-10F Gloria Valvae Worm-Gear DN40-1000 40A-1000A JIS Standard
DEINDE：PVC-U D371X-10U Worm-Gear Butterfly Valve DN40-1000 40A-1000A JIS Standard
Product Features structuralis
1. Plectrum compactum et leve est, facile disgregat et conservatur, et quovis loco institui potest.
2. Simplex et compacta compages cum torque operante humili, permittens celeri XC° gyrationis ad foramen velox.
3. Linear fluxus habet cum optima regula perficiendi

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

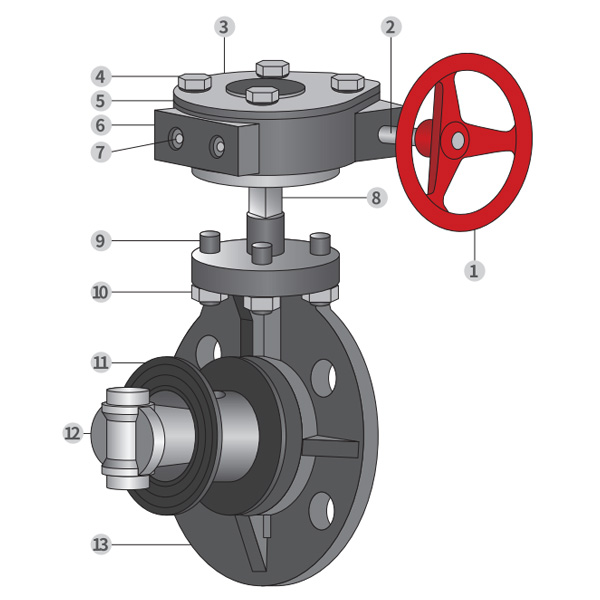

Pars Materia Tabula

Nec.

Nomen

Materia

1

Rota aluminium offensionis

2

Vermis calces ursi Steel

3

Data Ipate aluminium

4

Exagonum fulmen Steel, StainlessSteel

5

Vermis calces opere aluminium offensionis

6

Vermis calces aluminium offensionis

7

Terminus fulmine Steel, StainlessSteel

8

Stem Steel, StainlessSteel

9

Duplex praevenirent Steel, StainlessSteel

10

Sexangulus nut Steel, StainlessSteel

11

signantes rubber EPDM,FPM
12 Valvae Plate FRPP, PVDF, PVC-C, PVC-U, PPH
13 Corpus FRPP, PVDF, PVC-C, PVC-U, PPH

Vermis calces Type Gloria Valvae Conventus Detail Tractus

Pars Material Tabula

NO.

partes Nomen

Materia

Qty.

1

Rota ferrea

1

2

Vermis calces ferrea

1

3

Pin Steel

1

4

Nucis Cup FRPP

4

5

Corpus FRPP, PVDF, PVC-C, PVC-U, PPH

1

6

Valvae Plate FRPP, PVDF, PVC-C, PVC-U, PPH

1

7

signantes rubber EPDM，FPM

1

8

Stem Steel, StainlessSteel

1

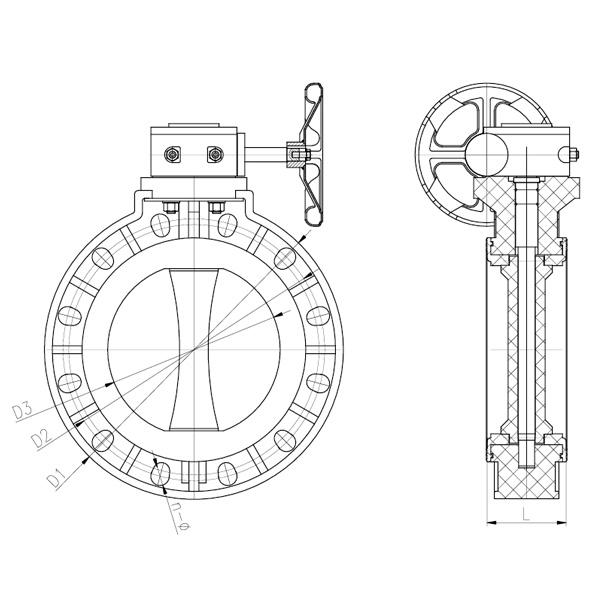

Dimension List

DN (mm) D1 D2 D3 L n-ø
GB JIS ANSI GB JIS ANSI
32(1 1/4") 140 100 100 3.45 35 35 4-ø17X25 4-ø17X25 4-ø17X25
40(1 1/2") 148 110 105 3.88 41.5 39 4-ø19X25 4-ø19X25 4-ø19X25
50(2") 162 125 120 4.74 50 40 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
65(2 1/2"） 180 145 140 5.49 64 42 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
80(3") 198 160 150 6 77 42 8-ø19X25 8-ø19X24 4-ø19X25
100(4")） 225 180 175 7.5 96 52 8-ø19X32 8-ø19X32 8-ø19X32
125(5"） 255 210 210 8.5 120 61 8-ø23X33 8-ø23X33 8-ø23X33
150(6") 285 240 240 9.51 145 71 8-ø23X34 8-ø23X34 8-ø22X34
200(8"） 340 295 290 11.75 196.5 81 8-ø23X33.5 12-ø23X27 8-ø23X33.5
250(10") 395 350 355 14.25 245.5 110 12-ø23X32.5 12-ø25X32.5 12-ø25X32.5
400(16") 597 515 510 21.26 399 140 16-ø27X43 16-ø27 16-ø30X43
450 (18") 635 560 565 22.76 446 150 20-ø26X28.5 20-ø26X28.5 16-ø32X34. 5
500(20") 700 620 620 25 494 150 20-ø26X44 20-ø26X44 20-ø32X44
700(28") 928 820 840 34.02 670 185 24-ø31X44 24-ø33 24-ø35
800(32"） 1060 950 950 38.5 755 220 24-ø41X60 28-ø33X38 24-ø41X60
1000(40"） 1210 1160 1160 46.26 935 236 28-ø36X52 28-ø39 32-ø41
800 (32") 1060 950 950 38.5 755 220 24-Φ41X60 28-Φ33X39 24-Φ41X60
1000 (40") 1230 1160 1160 46.26 935 236 28-Φ36X52 28-Φ39 32-Φ41
