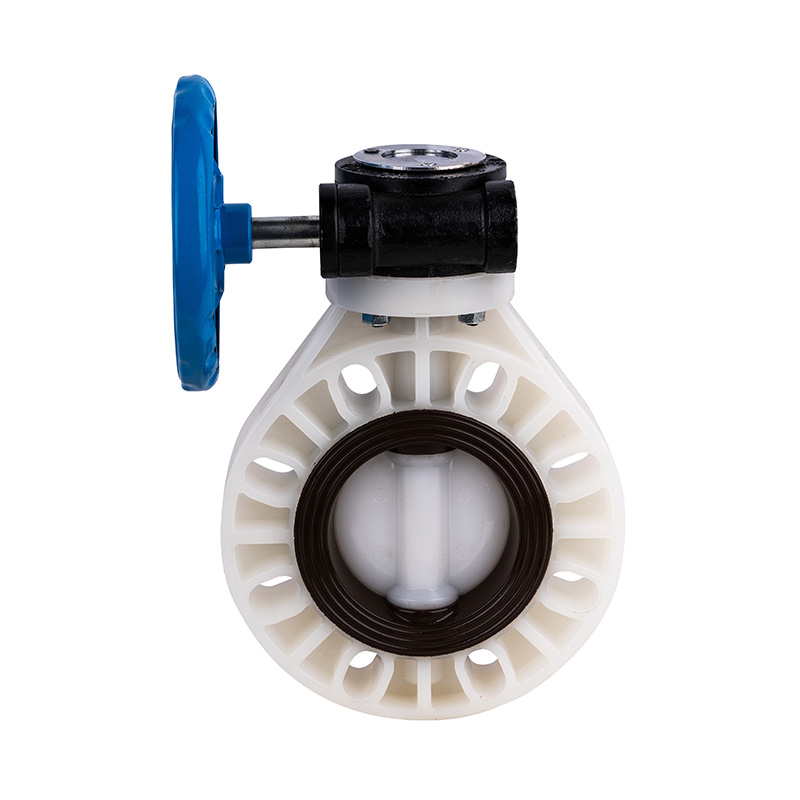

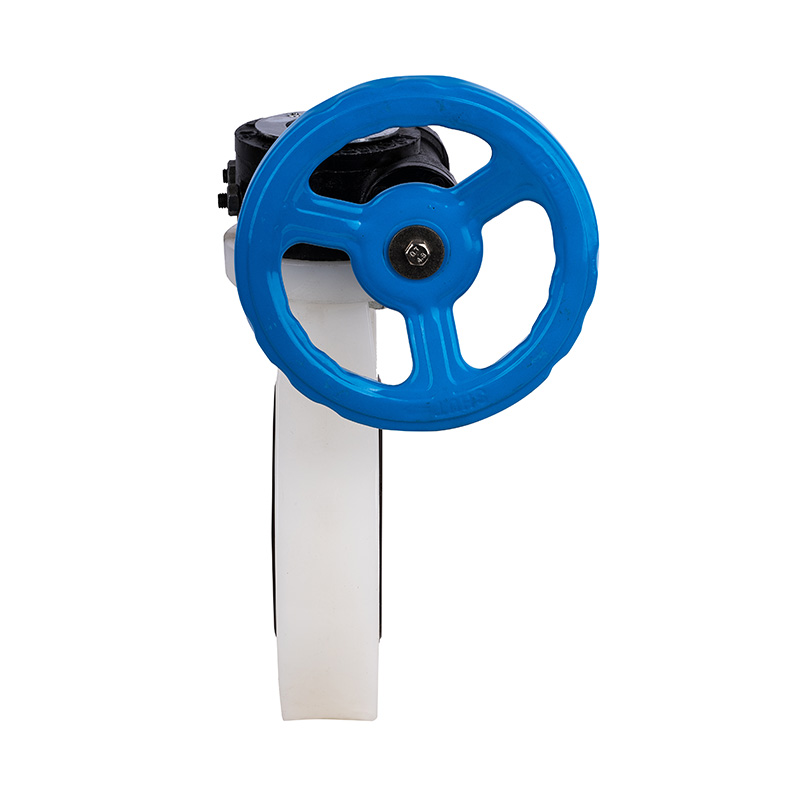

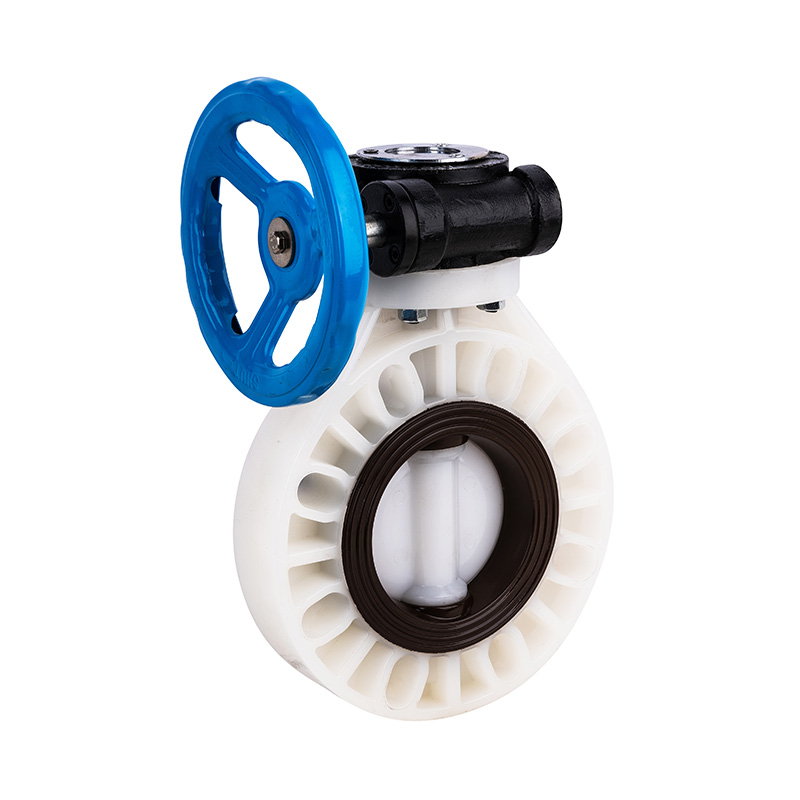

PVDF D371X-10F Gloria Valvae Worm-Gear DN40-1000 1-1/2'-30' ANSI Standard

PVDF D371X-10F Gloria Valvae Worm-Gear DN40-1000 1-1/2"-30" ANSI Standard

PVDF Worm Gear Butterfly Valve Manual Center Signatum Mollis Sigillum DN40-1000 Industrial et Residential Plastic Lever Palpate VALVAE ANSI Standard
Operatio Modus: Manual
Connection Type: Wafer
Structura: Centrum signatum
Signantes Type: Resiliens obsignatum
Stem: Standard
Pressura Classis: 1.0Mpa（10bar）
Laborans Temperature: -40~150°C
Superficiem Material signantes: Mollis Sigillum
Applicationem: Industrial Usus, Aquae Curatio Usus
Caulis Material: Steel, Steel
Brand: KXPV
Specificatio: DN40-1000
Origin: Zhejiang, Ningbo

Contact Us
PREV：PPH D371X-10S Vermis-Gear Papilio Valve DN40-1000 1-1/2"-30" ANSI Standard
DEINDE：PVC-C D371X-10V Worm-Gear Papilio Valve DN40-1000 1-1/2"-30" ANSI Standard
Product Features structuralis
1. Plectrum compactum et leve est, facile disgregat et conservatur, et quovis loco institui potest.
2. Simplex et compacta compages cum torque operante humili, permittens celeri XC° gyrationis ad foramen velox.
3. Linear fluxus habet cum optima regula perficiendi

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

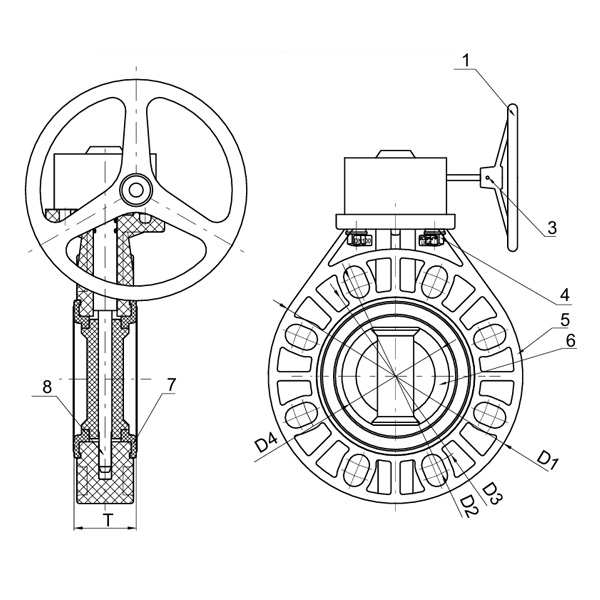

Pars Materia Tabula

Nec. Nomen Materia Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Rota Admisce materia 1
2 Vermis calces Admisce materia 1
3 Pin Steel 1
4 Nucis Cup FRPP PPH FRPP 4
5 Corpus PVC-C PVC-U PVDF PPH FRPP 1
6 Disc PVC-C PVC-U PVDF PPH FRPP 1
7 signantes rubber FPM EPDM FPM EPDM 1
8 Stem Steel 1

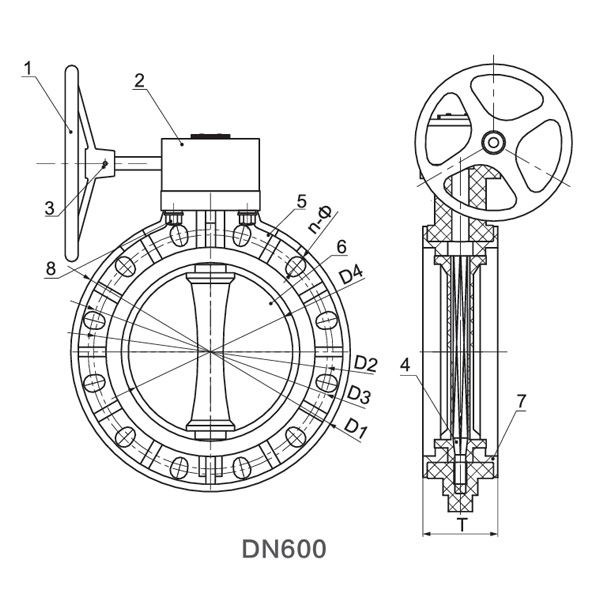

Nec. Nomen Materia Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Rota ferrum cast / materia Alloy 1
2 Vermis calces ferrum cast / materia Alloy 1
3 Pin Steel 1
4 Stem Steel 1
5 Corpus PVC-C PVC-U PVDF PPH FRPP 1
6 Disc PVC-C PVC-U PVDF PPH FRPP 1
7 signantes rubber FPM EPDM FPM EPDM 1
8 Nucis Cup FRPP PVDF PPH FRPP 4

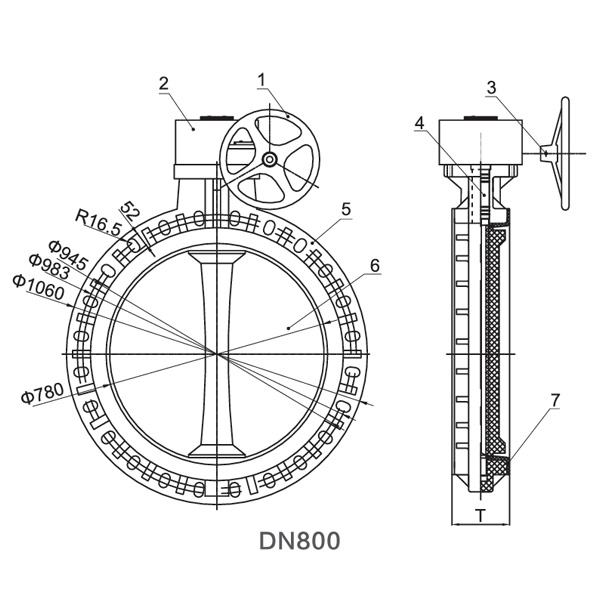

Nec. Nomen Materia Qty.
1 Rota ferrea 1
2 Vermis calces ferrea 1
3 Pin Steel 1
4 Stem Steel 1
5 Corpus FRPP 1
6 Disc FRPP 1
7 signantes rubber EPDM 1

Dimension List

Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
1½»(40) 148 96 110 41.5 39 4-Φ19*25
2"(50) 162 108 125 48.5 43 4-Φ19*26
2½» (65) 180 128 145 63 45 4-Φ19*26
3»(80) 196 148 160 75.5 45 8-Φ19*24
4"(100) 225 168 191 95 56.5 8-Φ19*29
5» (125) 255 200 216 120 65 8-Φ23*31
6"(150) 285 225 241 143.5 75 8-Φ23*31
8"(200) 340 280 299 195 85 8-Φ23*32
JIS:12-Φ23*27

Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
10"(250) 423 350 366 245.5 110 12-Φ23*32
12"(300) 495 400 436 291.5 115 12-Φ23*32
14 (350). 555 460 470 340 127 16-Φ22
12-Φ29
16"(400) 607 515 540 399 140 16-Φ23*45
18"(450) 645 565 583 446 150 20-Φ28.5
16-Φ34.5
20"(500) 708 615 640 494 150 20-Φ26*41
24"(600) 820 725 750 570 170 20-Φ35*47
