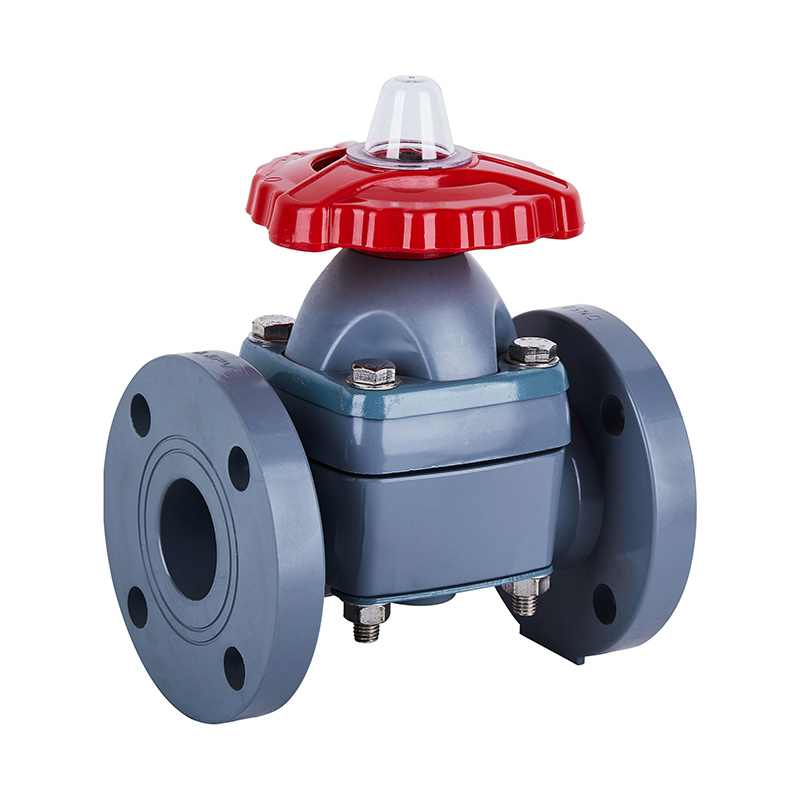

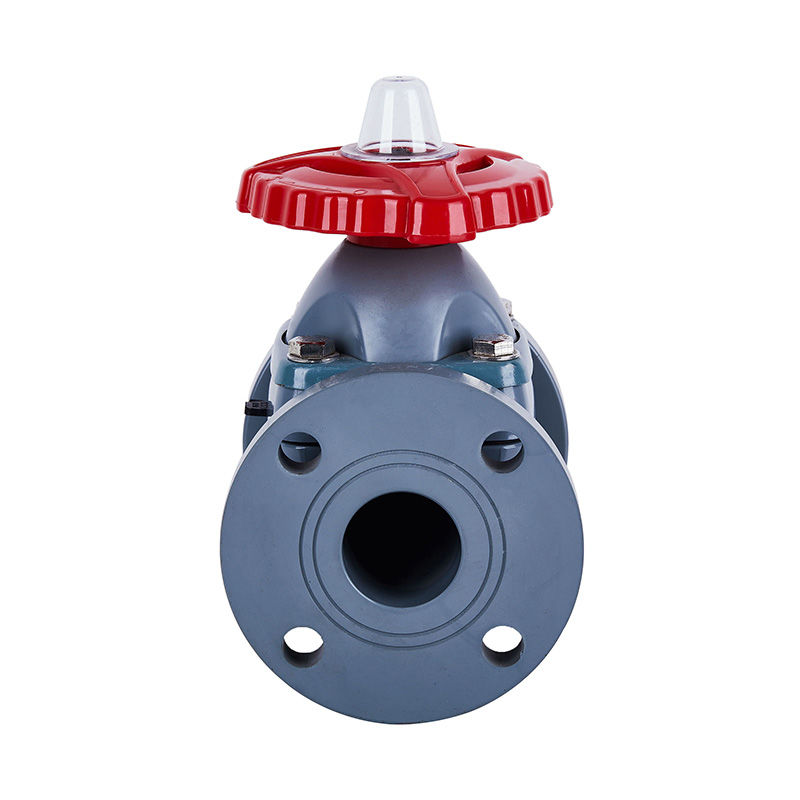

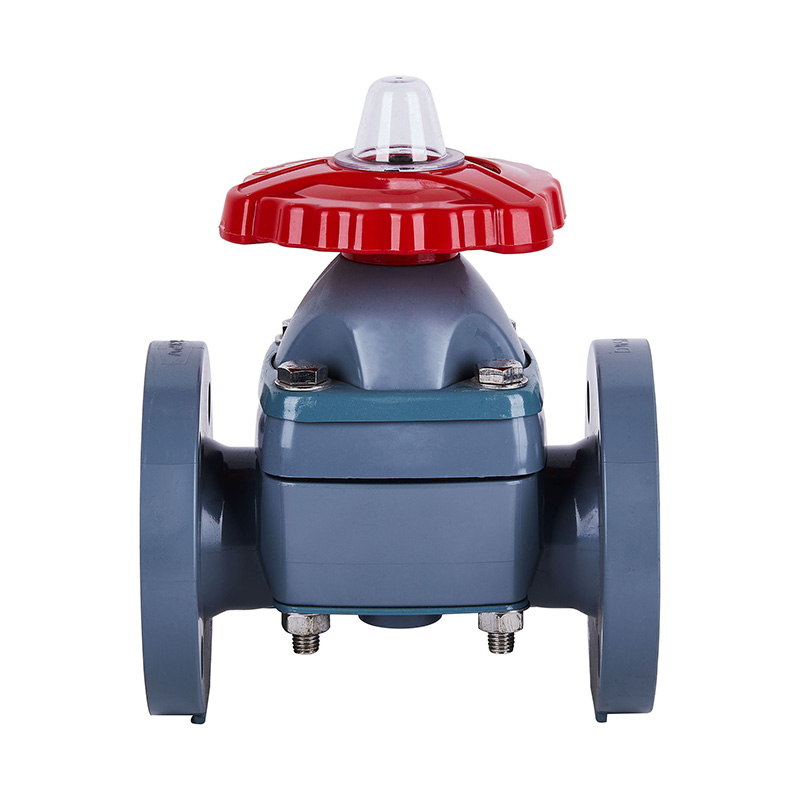

    PVC-C G41F-10V Flanged Diaphragma ValveDN20、DN32-150 20A、32A-150A JIS Standard

    PVC-C G41F-10V Flanged Diaphragma ValveDN20、DN32-150 20A、32A-150A JIS Standard

    Ultra-Durable High-Temperate Manual PVC-C Diaphragma valvae Flanged pro Fluidorum acidorum et Aquarum Supple, JIS Standard
    Product Name: PVC-C Diaphragma Valve
    Color: Grey
    Size: DN20-150
    Exemplar: G41F-10V
    Applicationem: General
    Materia: Plastic
    Medium Temperature: High, Medium
    Pressura: Medium
    Potentia Source: Manual
    Medium: Acid
    Portus Size: DN20-150
    Structura: Diaphragma
    Connection: Flanged finis
    Testimonium: ISO9001
    Medium: Acid
    Pressura Classis: 1.0Mpa（10bar）
    Valvae Type: I-modo
    Signare: EPDM F46
    Delivery Time: 7 days
    Minimum Quantitas Ordinis: I Piece

    Contact Us
    PREV：PVDF G41F-10F Typus valvae Diaphragmatis DN15-300 1/2" -12" ANSI Standard
    DEINDE：PVC-C G41F-10V Typus valvae Diaphragmatis DN15-300 1/2"-12" ANSI Standard
    Prod*uct Features structuralis
    1. Diaph*ragmaa obsignatio fit ex F46 vel PFA, cum flexa patientia ≥120.000 cyclorum et corrosioni resistentiae aequivalens F4.
    2. Valvae cochlea-elevationis structuram adhibet, ac humilem torquem operantem et stabilitatem praestantem efficiens.

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃
    Diaphragma Valvae Conventus Detail Tractus
    Nec. Nomen Materia
    1 Operculum limit AS
    2 Stud Steel, StainlessSteel
    3 retentis Nucis FRPP
    4 elementum FRPP
    5 Rota Alloy materia
    6 Platen Steel, StainlessSteel
    7 Duplex bulla ac Nucis Steel, StainlessSteel
    8 Bonnet FRPP、PVDF、PVC-U、PVC-C、PPH
    9 Iugum Nut Ferro, aeris Ht300
    10 Stem Steel, StainlessSteel
    11 Disc coniecit iron、FRPP、PVDF、PVC-U、PVC-C、PPH、Steel, StainlessSteel、C.I.FRP
    12 Flim EPDM,FPM
    13 Diaphragm F46.PFA
    14 Corpus FRPP、PVDF、PVC-U、PVC-C、PPH
    15 Platen Steel, StainlessSteel

    Dimension List

    DN (mm) D d L h n Ø
    20(3/4") 105 75 120 18 4 15X16
    25(1) 115 90 130 18 4 19X20.5
    32(1 1/4") 135 100 160 20 4 19X20.5
    40(1 1/2") 145 105 180 20 4 19X20.5
    50(2") 160 120 210 21 4 19X20.5
    65(2 1/2") 180 140 250 22 4 19X20.5
    80(3") 195 150 280 22 8 19X20.5
    100(4"） 229 175 340 24 8 19X20.5
    125(5"） 250 210 410 24 8 23
    150(6") 280 240 480 26 8 23
