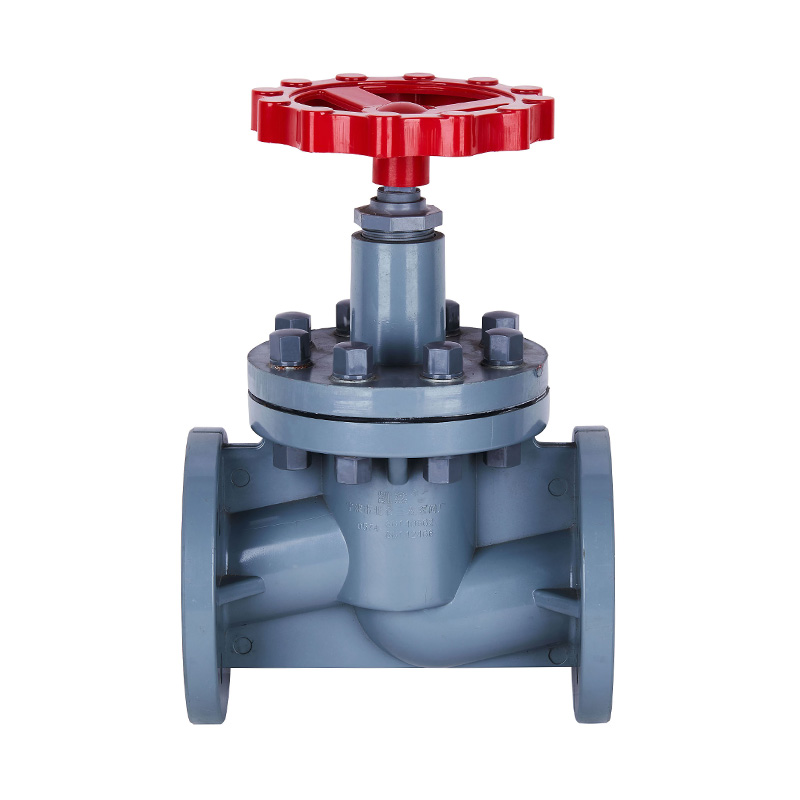

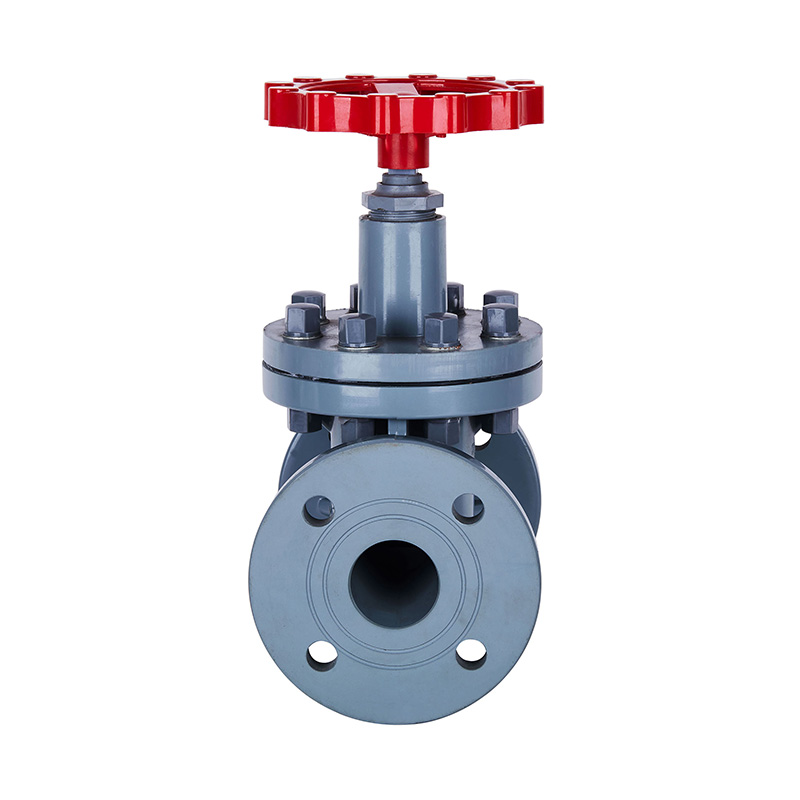

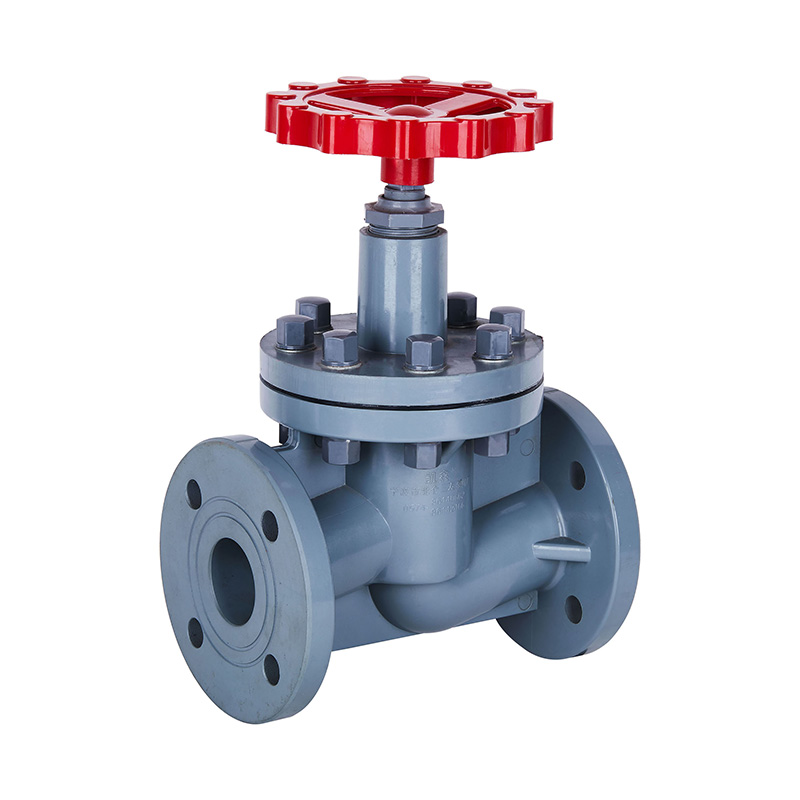

    PVC-C J41F-10V Flange Type Globe Valve DN15-150 1/2'-6' ANSI Standard

    PVC-C J41F-10V Flange Type Globe Valve DN15-150 1/2"-6" ANSI Standard

    PVC-C Valvae Globi Rectus-Per Maximum Temperature DN15-DN150 Chemical et Industrial Plastic Valvae ANSI Standard
    Exemplar: J41F-10V
    Materia: Plastic
    Connection Type: Flanged
    Operatio Modus: Manual
    Pressura exprimens: 10 kg
    Fluat Channel: Recta per Type
    Structura: Valvae fixa Globe
    Typus: Globe Valvae Fixae
    Munus: bypass Valvae
    Temperatus: High Temperature
    Applicationem: Industrial Usus, Aquae Curatio Usus
    Brand: KXPV
    Specification: DN15-DN150
    Origin: Zhejiang, Ningbo

    Pressura Classis: 1.0Mpa（10bar）

    Contact Us
    PREV：PVC-U J41F-10U Flange Type Globe Valve DN15-150 1/2"-6" ANSI Standard
    DEINDE：FRPP J41F-10S Flange Type Globe Valve DN15-150 GB Standard
    Product Features structuralis

    1. Valvae plasticae corpus optimum corrosionem resistentiae praebet et resistentiam induunt.
    2. Foedus consilium, sumptus-efficax et princeps effectus.
    3. Valves praesto tionibus fluxus.

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

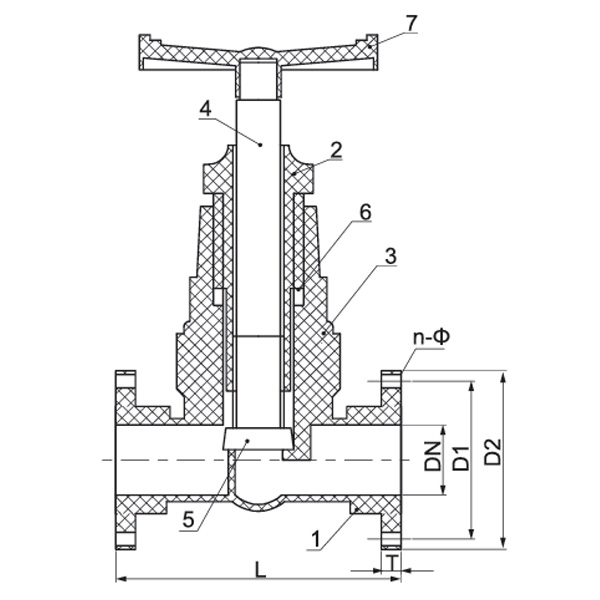

    Pars Materia Tabula

    Nec. Nomen Materia Qty.
    PVC-C PVC-U PVDF PPH FRPP
    1 Corpus PVC-C PVC-U PVDF PPH FRPP 1
    2 Clausus Clausus PVC-C PVC-U PVDF PPH FRPP 1
    3 Connectors PVC-C PVC-U PVDF PPH FRPP 1
    4 Stem PVC-C PVC-U PVDF PPH FRPP 1
    5 signantes Cover PVC-C PVC-U PVDF PPH FRPP 1
    6 Sten seal PTFE 1
    7 Rota Admisce materia 1

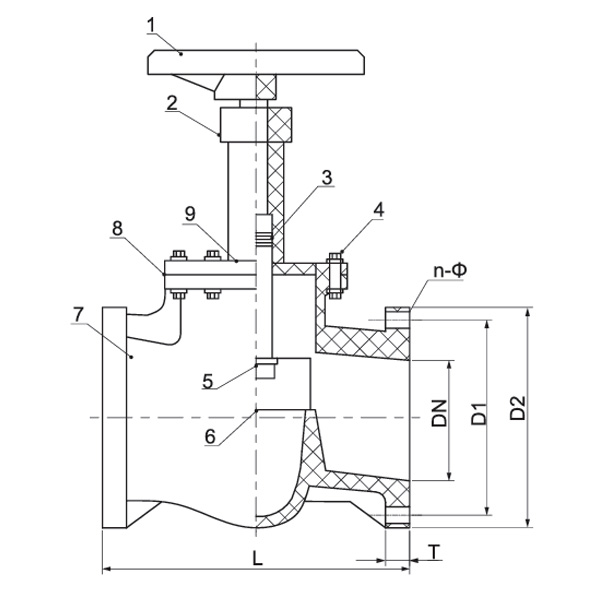

    Nec. Nomen Materia Qty.
    PVC-C PVC-U PVDF PPH FRPP
    1 Rota Admisce materia 1
    2 sigillum nucis PVC-C PVC-U PVDF PPH FRPP 1
    3 Sten seal PTFE 1
    4 Screw Steel 8
    5 Stem (PVC-C/PVC-U/PVDF/PPH/FRPP) SteelSteel 1
    6 Capping PVC-C PVC-U PVDF PPH FRPP 1
    7 Corpus PVC-C PVC-U PVDF PPH FRPP 1
    8 signantes rubber FPM EPDM FPM EPDM 1
    9 Bonnet PVC-C PVC-U PVDF PPH FRPP 1

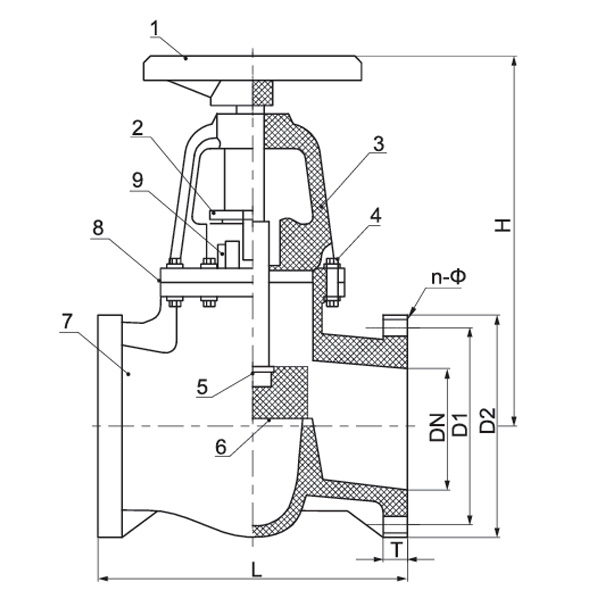

    Nec. Nomen Materia Qty.
    PVC-C PVC-U PVDF PPH FRPP
    1 Rota Admisce materia 1
    2 sigillum nucis PVC-C PVC-U PVDF PPH FRPP 1
    3 Suppot (PVC-C/PVC-U/PVDF/PPH/FRPP) SteelSteel 1
    4 Screw Steel 8
    5 Stem (PVC-C/PVC-U/PVDF/PPH/FRPP) SteelSteel 1
    6 Capping PVC-C PVC-U PVDF PPH FRPP 1
    7 Corpus PVC-C PVC-U PVDF PPH FRPP 1
    8 signantes rubber FPM EPDM FPM EPDM 1
    9 Bonnet PVC-C PVC-U PVDF PPH FRPP 1

    Dimension List

    Specification D1(mm) D2(mm) L(mm) T(mm) n-Φ(mm)
    1/2" (15) 60 105 155 18 4-Φ14
    3/4"(20) 70 105 155 18 4-Φ14
    1"(25) 79 115 160 20 4-Φ14
    1¼"(32) 89 135 185 20 4-Φ18
    1½»(40) 98 150 200 20 4-Φ18

    Specification D1(mm) D2(mm) L(mm) T(mm) n-Φ(mm)
    2"(50) 121 165 230 20 4-Φ18

    Specification D1(mm) D2(mm) L(mm) T(mm) n-Φ(mm)
    1/2" (15) 60 105 155 18 4-Φ14
    3/4"(20) 70 105 155 18 4-Φ14
    1"(25) 79 115 160 20 4-Φ14
    1¼"(32) 89 135 185 20 4-Φ18
    1½»(40) 98 150 200 20 4-Φ18
