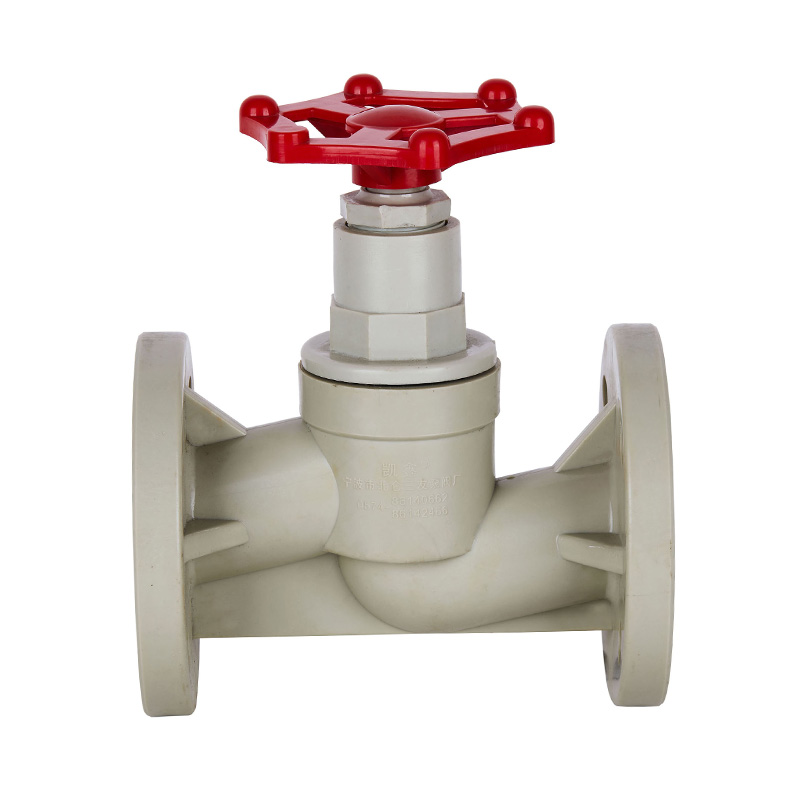

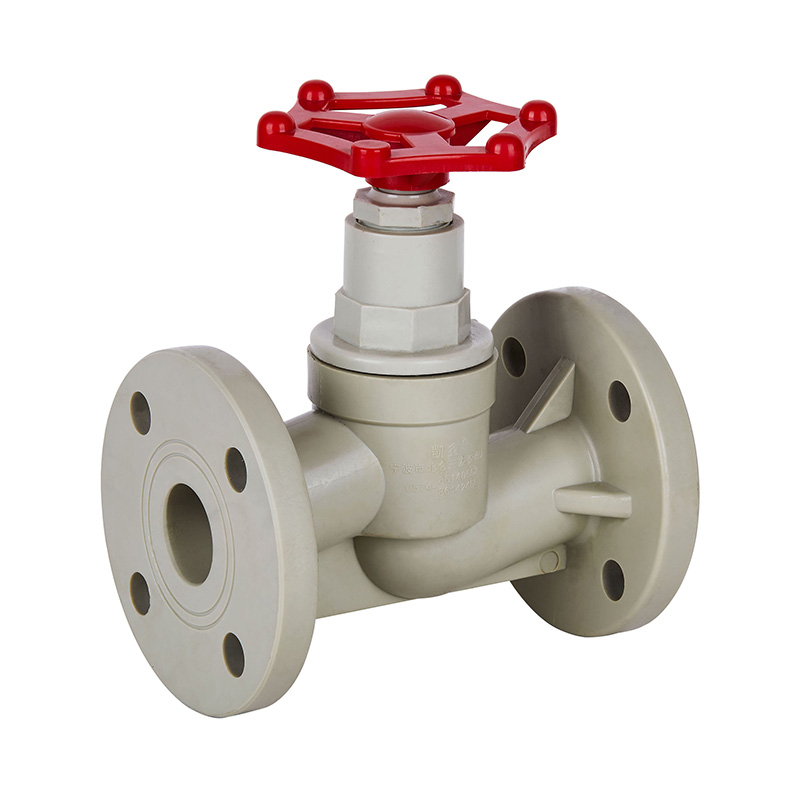

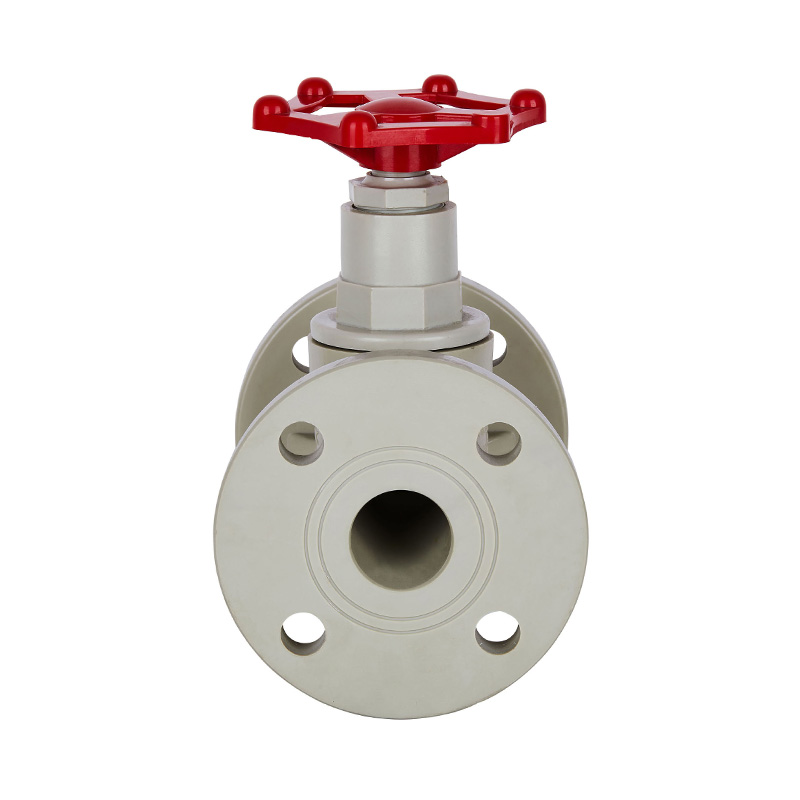

PPH J41F-10S Flange Type Globe Valve DN15-150 GB Standard

PPH J41F-10S Flange Type Globe Valve DN15-150 GB Standard

PPH Flange Type Globe Valve DIN Custom Mini 2 Inch 6 Inch Industry Plastic Valve
Origin: Ningbo, Zhejiang
Nomen notam: KXPV
Exemplar Number: J41F-10S
Applicationem: General
Materia: Plastic
Temperature of Media: High Temperature, Medium Temperature
Pressura: Minimum Pressura
Potentia: Manuale
Media: Acid
Portus Magnitudo: DN15-DN150
Structura: Shutoff
Corpus materiale: PPH
Connection: Fines Flange
Pressura Classis: 1.0Mpa（10bar）
Valvae genus: 1-modo
Medium applicabile: Acid-basi
Warranty: 12 months
Temperature: -20~110℃
Delivery Time: 7 Days
MOQ: 1 Piece

Contact Us
PREV：FRPP J41F-10S Flange Type Globe Valve DN15-150 GB Standard
DEINDE：PVDF J41F-10F Flange Type Globe Valve DN15-150 GB Standard
Product Features structuralis

1. Corpus plasticum egregium corrosionis resistentiae et abrasionis resistentiae habet.
2. Pactum consilium, quale et vilis est.
3. Plectrum fluxus subtilis ordinatur expers.

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Pars Materia Tabula

Nec.

Nomen

Materia

1

Rota

Admisce materia

2

sigillum nucis

FRPP, PVDF, PVC-C, PVC-U, PPH

3

Sigillum caulis

PTFE

4

Cap nut

FRPP

5

Sexangulus nut

Chalybe, ferro immaculata

6

implens plece

Chalybe, ferro immaculata

7

Bonnet

FRPP, PVDF, PVC-C, PVC-U, PPH

8

Duplex praevenirent

Chalybe, ferro immaculata

9

Stem

Steel Plastic

10

Capping

FRPP, PVDF, PVC-C, PVC-U, PPH

11

Corpus

FRPP, PVDF, PVC-C, PVC-U, PPH

12

Flexilis washer

EPDM,FPM

13

Sexangulus nut

Chalybe, ferro immaculata

14

Cap nut

FRPP

Flange Type Globe Valvae Conventus Detail Drawing

Dimension List

DN (mm)

D1

D2

H

L

T

n-Φ

GB

JIS

ANSI

GB

JIS

ANSI

15(1/2")

105

65

70

2.38

220

154

18

4-Φ14

4-Φ15

4-Φ16

20 (3/4")

105

75

75

2.76

220

154

18

4-Φ14

4-Φ15

4-Φ16

25 (1)

115

85

90

3.13

220

160

20

4-Φ14

4-Φ19

4-Φ16

32 (11/4")

135

100

100

3.45

250

185

20

4-Φ18

4-Φ19

4-Φ16

40 (11/2")

150

110

105

3.88

275

200

20

4-Φ18

4-Φ19

4-Φ16

50 (2).

165

125

120

4.74

350

230

20

4-Φ18

4-Φ19

4-Φ19

65 (21/2").

185

145

140

5.49

390

295

24

4-Φ18

4-Φ19

4-Φ19

LXXX (3).

200

160

150

6

400

310

25

8-Φ18

8-Φ19

4-Φ19

100 (4")

220

180

175

7.5

410

350

26

8-Φ18

8-Φ19

8-Φ19

125 (5).

250

210

210

8.5

430

400

30

8-Φ18

8-Φ23

8-Φ22

150 (6).

285

240

240

9.51

480

480

33

8-Φ23

8-Φ23

8-Φ22
