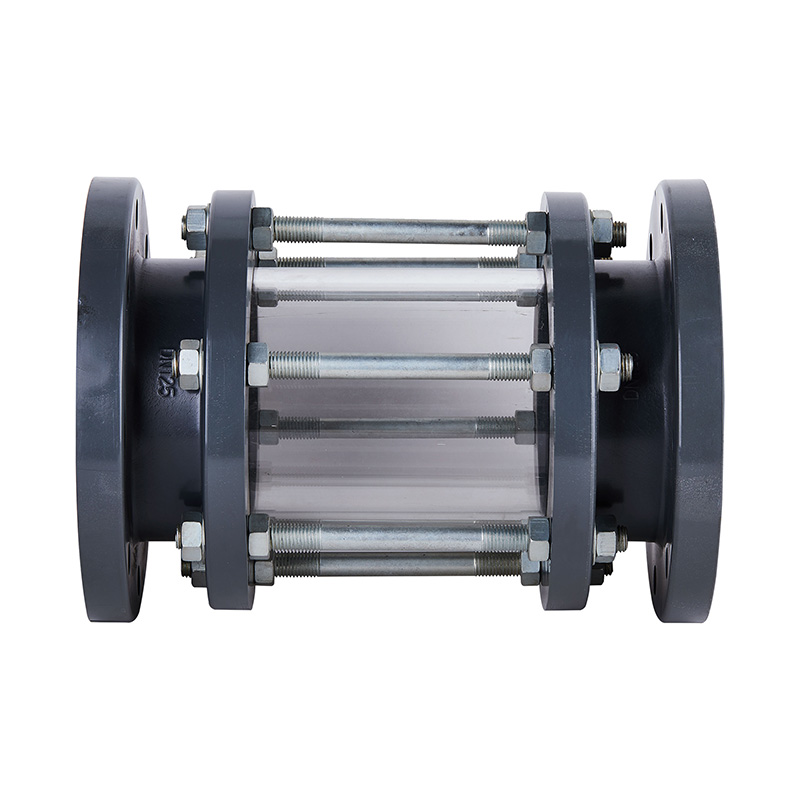

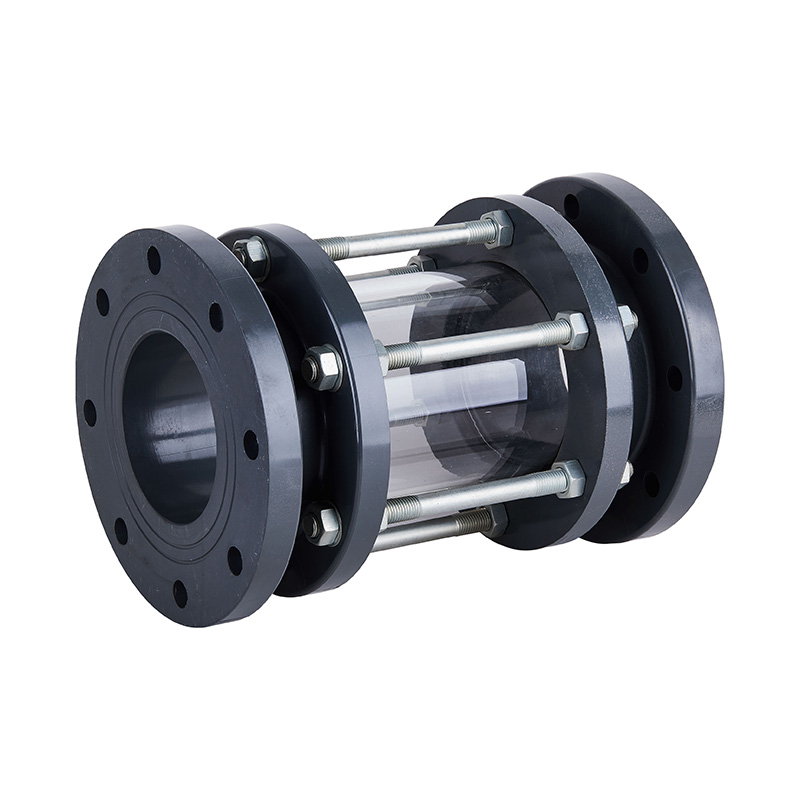

Consuetudinem Grey Tubularis UPVC Visus vitreus rotundus borosilicatus observationis stabilibilis rotundi fluens indicator oleum liquidum vitreum visum plasticum
Locus Origin: China
Nomen notam: KXPV
Technicae: Forged
Connection: Flange
Materia: UPVC
Color: Grey
Figura: Reducing
Caput Code: Hexagon
Product nomen: Visus Vitri
Size: DN25-200
Delivery Time: 7 Days
MOQ:1 Piece
| Pars Materia Tabula |
Visus Vitri Conventus Detail Tractus
| Nec. | Nomen | Material |
| 1 | Base | FRPP, PVDF, CPVC, UPVC, PPH |
| 2 | Hex nuces | Steel |
| 3 | Duplex praevenirent | Steel |
| 4 | vitrum | vitrum |
| 5 | Wash*ers | EPDM,FPM |
| 6 | Base | FRPP, PVDF, CPVC, UPVC, PPH |
| Dimension List |
| DN (mm) | D1 | D2 | L | h | n-Φ | ||||
| GB | JIS | ANSI | GB | JIS | ANSI | ||||
| 25(1/2") | 115 | 85 | 100 | 3.13 | 238 | 15 | 4-Φ14 | 4-Φ19 | 4-Φ16 |
| 32 (11/4") | 150 | 100 | 100 | 3.45 | 230 | 16 | 4-Φ18 | 4-Φ19 | 4-Φ16 |
| 40 (11/2") | 150 | 110 | 105 | 3.88 | 230 | 16 | 4-Φ18 | 4-Φ19 | 4-Φ16 |
| 50 (2) | 165 | 125 | 120 | 4.74 | 233 | 17 | 4-Φ18 | 4-Φ19 | 4-Φ19 |
| 65 (21/2"). | 195 | 145 | 140 | 5.49 | 277 | 20 | 4-Φ18 | 4-Φ19 | 4-Φ19 |
| 80 (3). | 195 | 160 | 150 | 6 | 277 | 20 | 8-Φ18 | 4-Φ19 | 4-Φ19 |
| 100 (4") | 215 | 180 | 175 | 7.5 | 310 | 21 | 8-Φ18 | 8-Φ19 | 8-Φ19 |
| 125 (5). | 250 | 210 | 210 | 8.5 | 350 | 26 | 8-Φ18 | 8-Φ23 | 8-Φ22 |
| 150 (6). | 285 | 240 | 240 | 9.51 | 385 | 27 | 8-Φ23 | 8-Φ23 | 8-Φ22 |
| 200 (8). | 340 | 295 | 290 | 11.75 | 400 | 25 | 8-Φ23 | 12-Φ23 | 8-Φ22 |
| Locus: | China |
| Negotium Type: | Manufacturer, Exporter |
| Brands: | |
| Testimonium: | |
| Exemplar: | |
| Termini solucionis et traditio; | |
| Ordo minimi quantitatis: | |
| Pretium: | Consultatio |
| Stipare singula: | |
| Tempus adferendi: | |
| Solucionis modum: |
