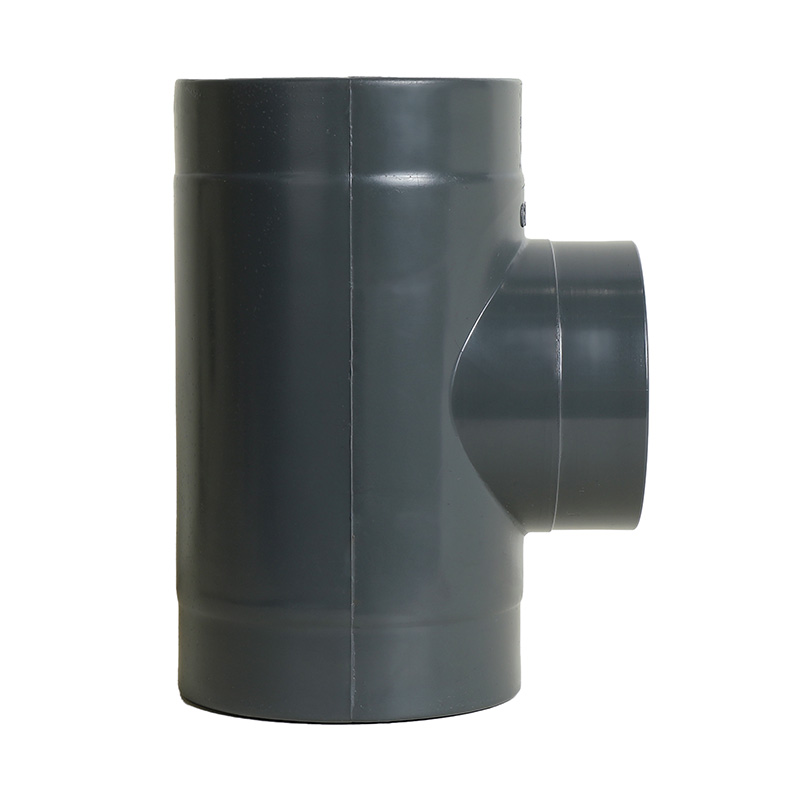

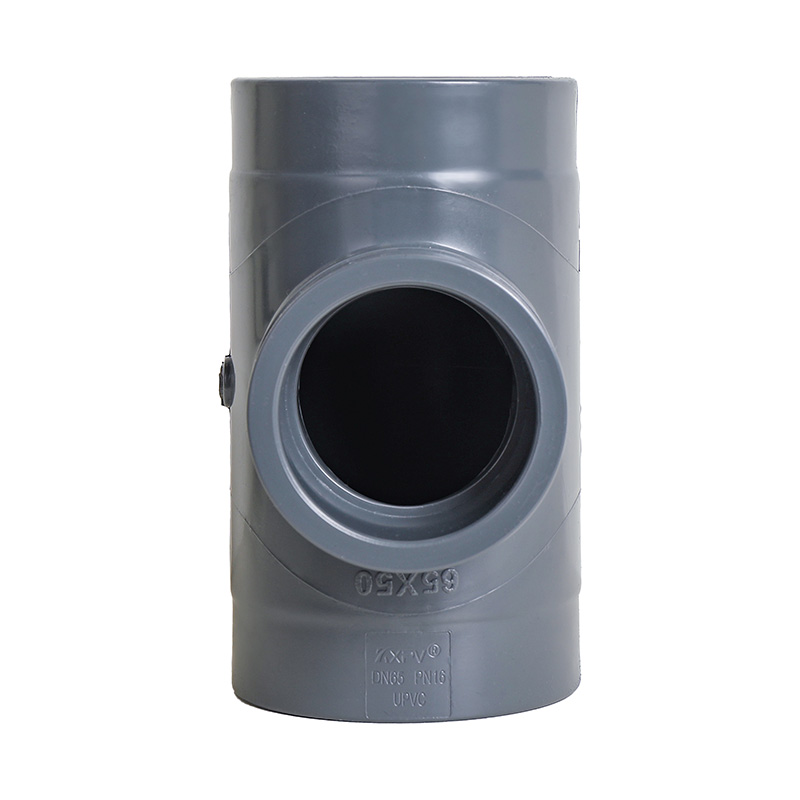

UPVC Reducing Tee DN15-600

Excellent Quality T Type 3 Way Joint UPVC Reducing Tee Plastic Pipe Connector Apta Aqua calida et frigida et chemical Industrialis

Locus Origin: China

Nomen notam: KXPV

Materia: Plastic

Technicae: Forged

Connection: nervum

Figura: Aequalis

Caput Code: Quadratus

Color: Gray Black

Magnitudo: DN15-DN600

Applicationem: Industry

Sarcina: lobortis Box

Operationis Impetus: 1.0-1.6Mpa (10-25bar)

Delivery Time: 7 Days

MOQ: 1 Piece

Supple Facultates: 10000 Piece / Pieces per Month

PREV：UPVC Tee DN15-600
NEXT：UPVC Cross DN15-200 0086 180 6712 3173 Nobis loquere

Descriptio
Additional Information

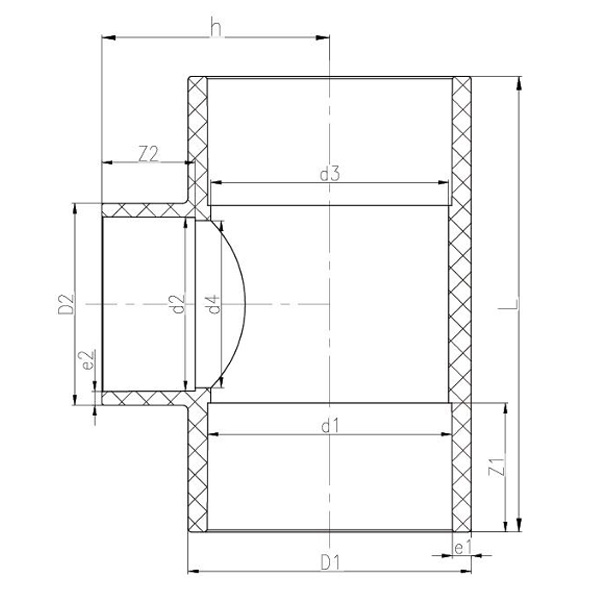

UPVC Reducing Tee Main Connection Dimension

DN	D1	D3	D	D2	H	L
DN20 15	25	20	32	26	28	65
DN25 15	32	20	41	26	32	80
DN25 20	32	25	41	32	35	80
DN32 15	40	20	50	26	36	96
DN32 20	40	25	50	32	39	96
DN32 25	40	32	50	41	42	96
DN40 15	50	20	63	26	41	116
DN40 20	50	25	63	32	44	116
DN40 25	50	32	63	41	47	116
DN40 32	50	40	63	50	51	116
DN50 15	63	20	79	26	48	142
DN50 20	63	25	79	32	51	142
DN50 25	63	32	79	41	54	142
DN50 32	63	40	79	50	58	142
DN50 40	63	50	79	63	63	142
DN65 15	75	20	95	26	53	167
DN65 20	75	25	95	32	57	167
DN65 25	75	32	95	41	59	167
DN65 32	75	40	95	50	63	167
DN65 40	75	50	95	63	68	167
DN65 50	75	63	95	79	75	167
DN80 15	90	20	113	26	61	197
DN80 20	90	25	113	32	64	197
DN80 25	90	32	113	41	67	197
DN80 32	90	40	113	50	71	197
DN80 40	90	50	113	63	76	197
DN80 50	90	63	113	79	83	197
DN80 65	90	75	113	95	89	197
DN100 15	110	20	134	26	71	236
DN100 20	110	25	134	32	74	236
DN 100 25	110	32	134	41	77	236
DN100 32	110	40	134	50	81	236
DN100 40	110	50	134	63	86	236
DN100 50	110	63	134	79	93	236
DN100 65	110	75	134	95	99	236
DN100 80	110	90	134	113	106	236
DN125 100	140	110	163	134	131	300
DN150 125	160	140	185	163	156	335
DN200 150	225	160	262	185	200	490
DN250 200	280	225	318	262	260	595
DN300 250	315	280	362	318	300	652
DN350 300	355	315	391	362	340	765
DN400 350	400	355	452	391	384	920
DN450 400	450	400	495	452	450	926
DN500 450	500	450	540	495	481	1026
DN600 500	600	500	678	540	570	1286
