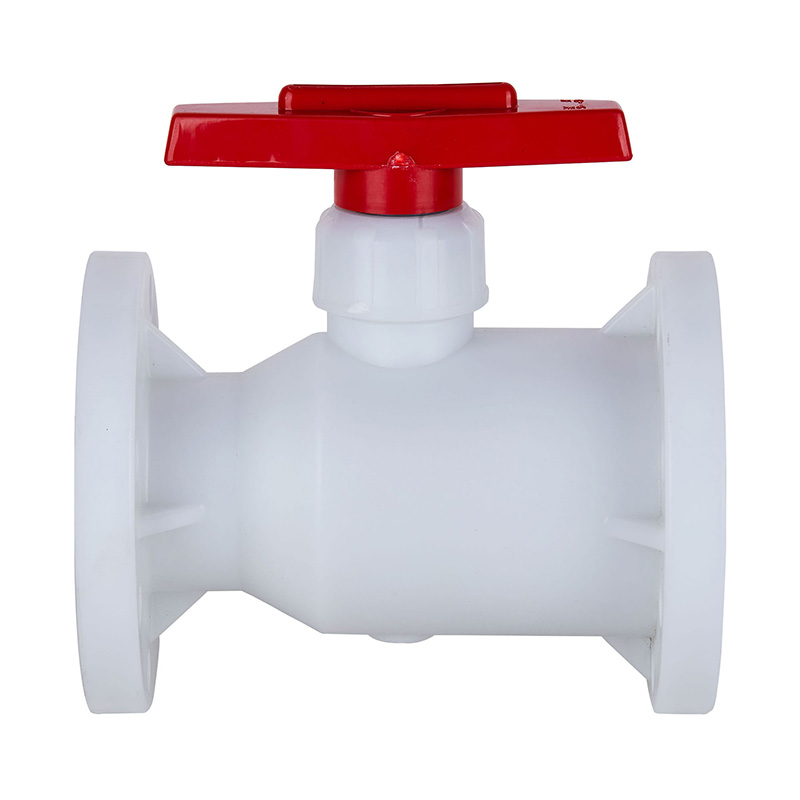

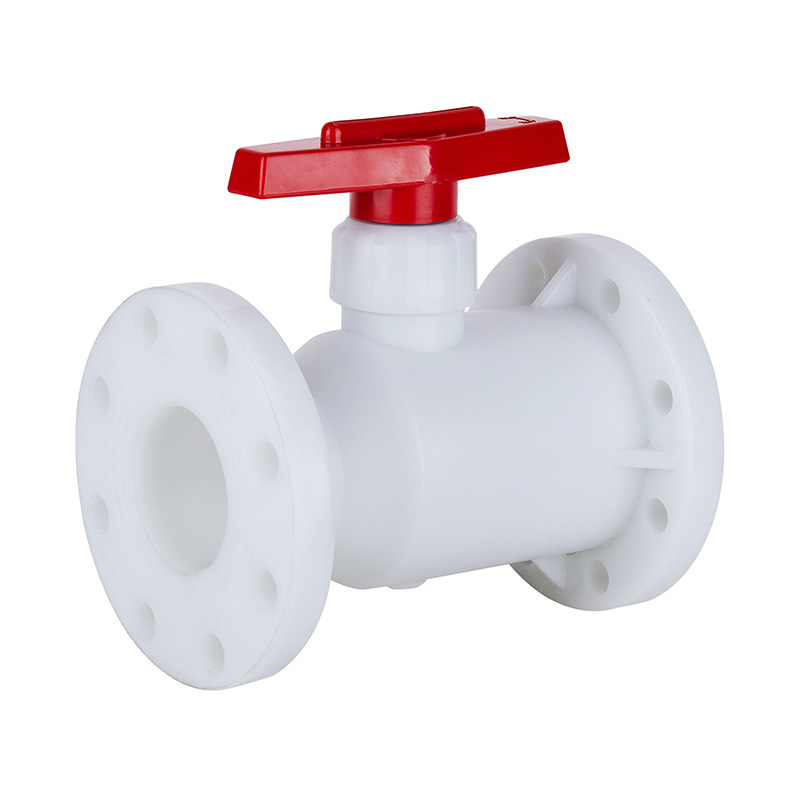

FRPP Q41F-10S Flange Type Globe Valve DN15-300 1/2'-12' ANSI Standard

FRPP Q41F-10S Flange Type Globe Valve DN15-300 1/2"-12" ANSI Standard

FRPP/RPP Body DN15–DN100 Ball Valve Straight-Through High-Temperature Plastic Flanged Fixed Ball Valve for Industrial Water Use ANSI Standard
Model: Q41F-10S
Material: Plastic
Connection Type: Flanged
Operation Mode: Manual
Nominal Pressure: 10 kg
Flow Channel: Straight-Through Type
Structure: Fixed Ball Valve
Function: Bypass Valve
Temperature: High Temperature
Application: Industrial Use, Water Treatment Use
Specification: DN15–DN100
Origin: Zhejiang, Ningbo
HS Code: 8481804090

Pressure Class: 1.0Mpa（10bar）

Contact Us
PREV：PVC-U Q61F-10U Socket Ball Valve DN15-100 1/2"-4" ANSI Standard
DEINDE：PPH Q41F-10S Flange Type Globe Valvae DN15-300 1/2"-12" ANSI Standard
Product Structural Features

1.The engineering plastic series ball valves are made of corrosion-resistant thermoplastic materials such as FRPP, PVDF, PVC-C, PVC-U, and PPH, formed by one-time injection molding, providing strong corrosion resistance.
2.Reliable sealing with low operating torque.
3.Low fluid resistance and quick opening and closing.
4.Simple structure with an attractive appearance.



App Temperature Bound List



Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

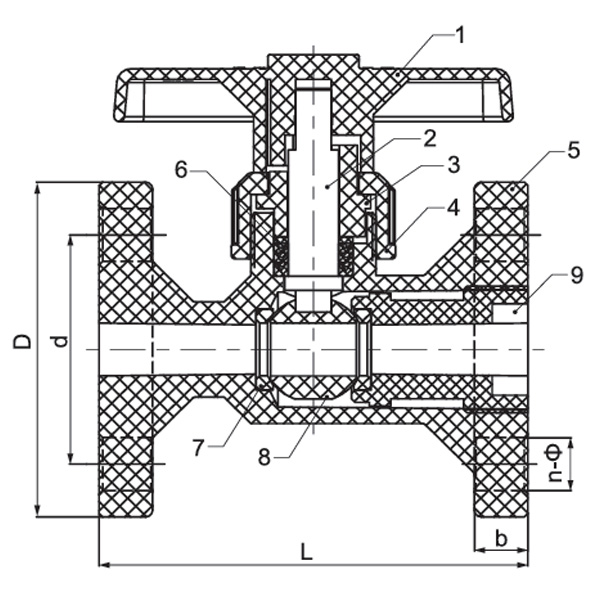

Part Material Table



No. Name Material Qty.
1 Handle Alloy material 1
2 Stem PVC-C,PVC-U,PVDF,PPH,FRPP 1
3 Inner Plug PVC-C-C,PVC-U,PVDF,PVC-C-C,PVC-C 1
4 Retaining Nut PVC-C,PVC-U,PVDF,PPH,FRPP 1
5 Body PVC-C,PVC-U,PVDF,PPH,FRPP 1
6 Sten seal PTFE 4/5
7 Sten seal PTFE 2
8 Ball PVC-C,PVC-U,PVDF,PPH,FRPP 1
9 Seal seat PVC-C,PVC-U,PVDF,PPH,FRPP 1

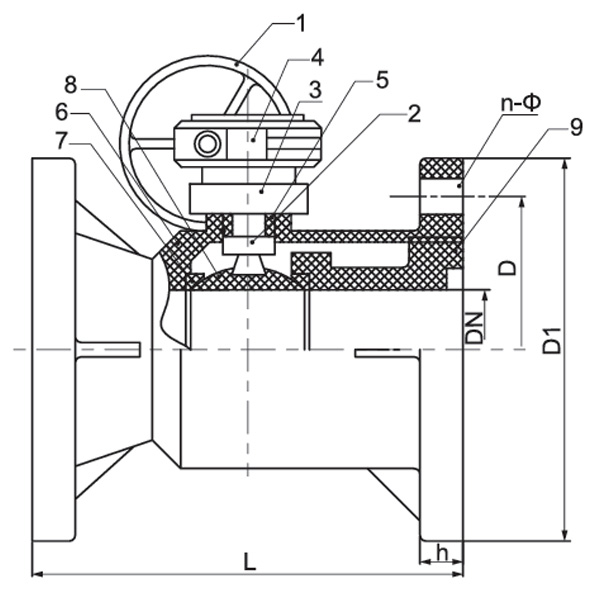

No. Name Material Qty.
1 Wheel cast iron 1
2 Stem (FRPP,FRPP,PVDF,FRPP,FRPP)+Iron 1
3 Inner Plug (PVC-C,PVC-C,PVDF,PVC-C,PVC-C)-C 1
4 Worm gear cast iron 1
5 Sealing ring PTFE 1
6 Body PVC-C,PVC-U,PVDF,PPH,FRPP 4/5
7 Sealing ring PTFE 2
8 Ball PVC-C,PVC-U,PVDF,PPH,FRPP 1
9 Seal seat PVC-C,PVC-U,PVDF,PPH,FRPP 1

Dimension List



Specification d
(mm)		 D
(mm)		 L
(mm)		 b
(mm)		 n-Ф
(mm)
2"(50) 121 160 185 22 4-Φ19
4"(100) 191 215 285 25 8-Φ19
5"(125) 216 245 357 31 8-Φ22
6"(150) 241 280 410 30 8-Φ23

Specification d
(mm)		 D
(mm)		 L
(mm)		 b
(mm)		 n-Ф
(mm)
8"(200) 299 335 400 35 8-Φ23
10"(250) 362 406 450 38 12-Φ25
