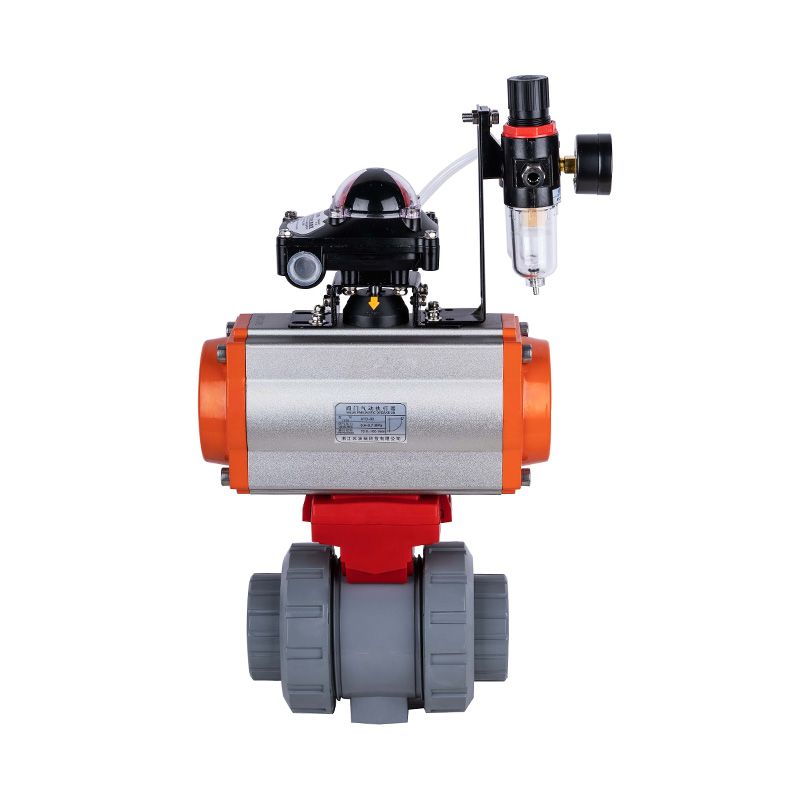

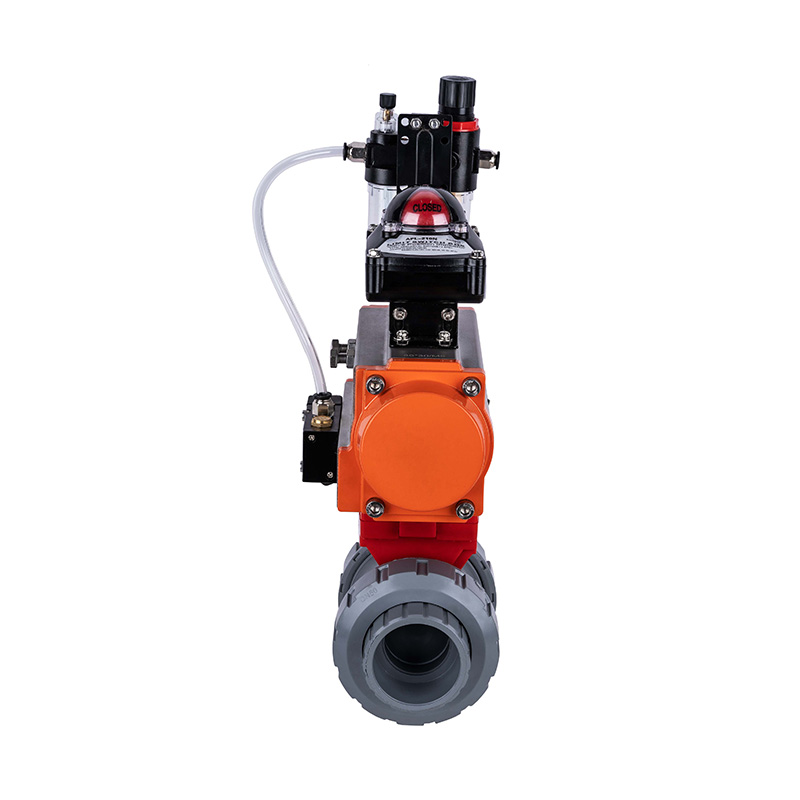

CPVC Pneumatica Socket Ball Valve DN15-100

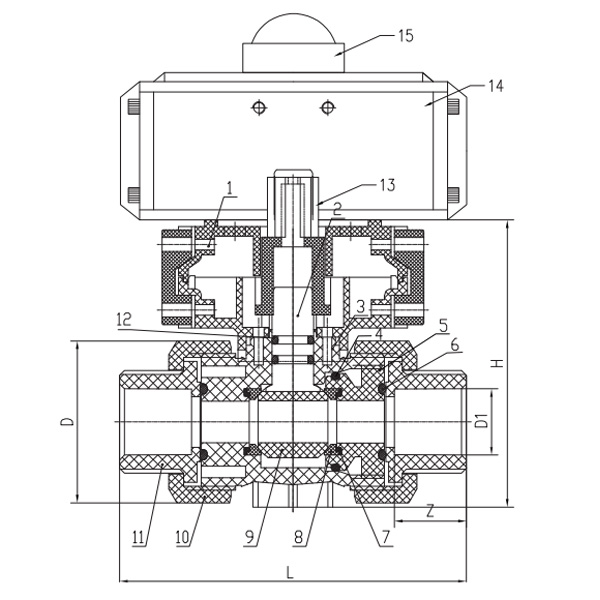

Nec.

Nomen

Material

Qty.

1

Electric/
Actus pneumaticus bracket

Alloy materia

l

2

Stem

PPH33333333, CPVC, UPVC, FRPP, PVDF

1

3

Corpus

PPH, CPVC, UPVC, FRPP, PVDF

4

Sigillum sede O-annulum 1

FPM, EPDM

1

5

sigillum sede

PPH, CPVC, UPVC, FRPP, PVDF

1

6

Sigillum sede O-annulum 2

FPM, EPDM

2

7

Sigillum sede O-annulum 3

FPM, EPDM

2

8

Sigillum pilae

PTFE

2

9

corpus pila

PPH, CPVC, UPVC, FRPP, PVDF

1

10

Tenens-descendit nut

PPH, CPVC, UPVC, FRPP, PVDF

2

11

Articulorum Unionis

PPH, CPVC, UPVC, FRPP, PVDF

2

12

Caulis o-anulus

FPM,EPDM

2

13

Caulis connector

Alloy materia

1

14

Actus pneumaticus

Alloy

1

15

Signum electomagneticum
feedback unit

Alloy

1

DN

D

D1

L

Z

H

15

50

20

110

20.3

87.8

20

58

25

126

24

97.5

25

70

32

140

26.8

106.6

32

85

40

160

30

123.5

40

98

50

170

32

138.5

50

124

63

190

37

163.5

65

135

75

230

44

191

80

158

90

280

51

222.5

100

192

110

340

61

261.5
