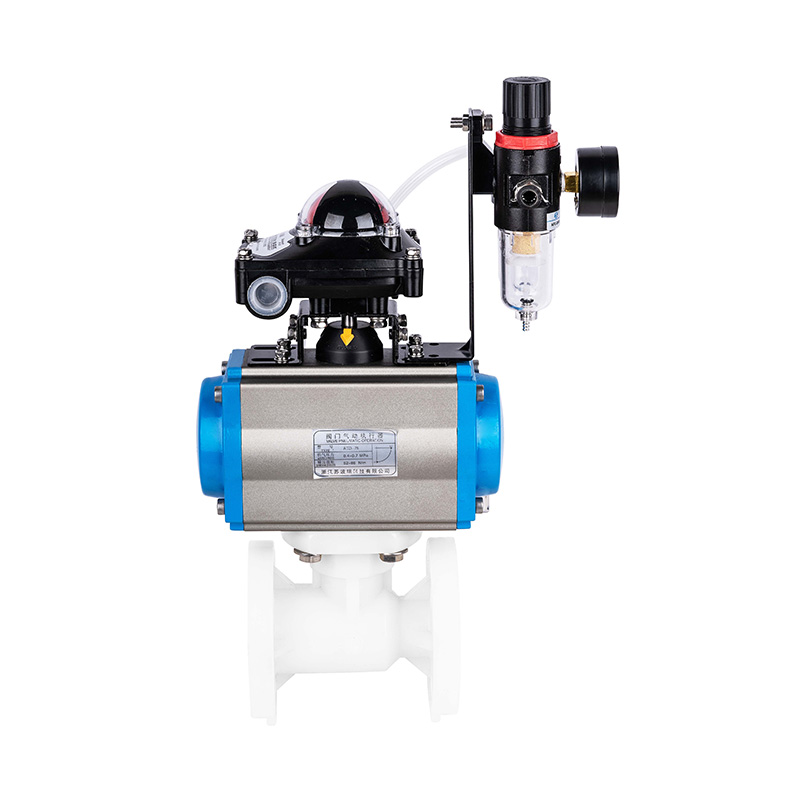

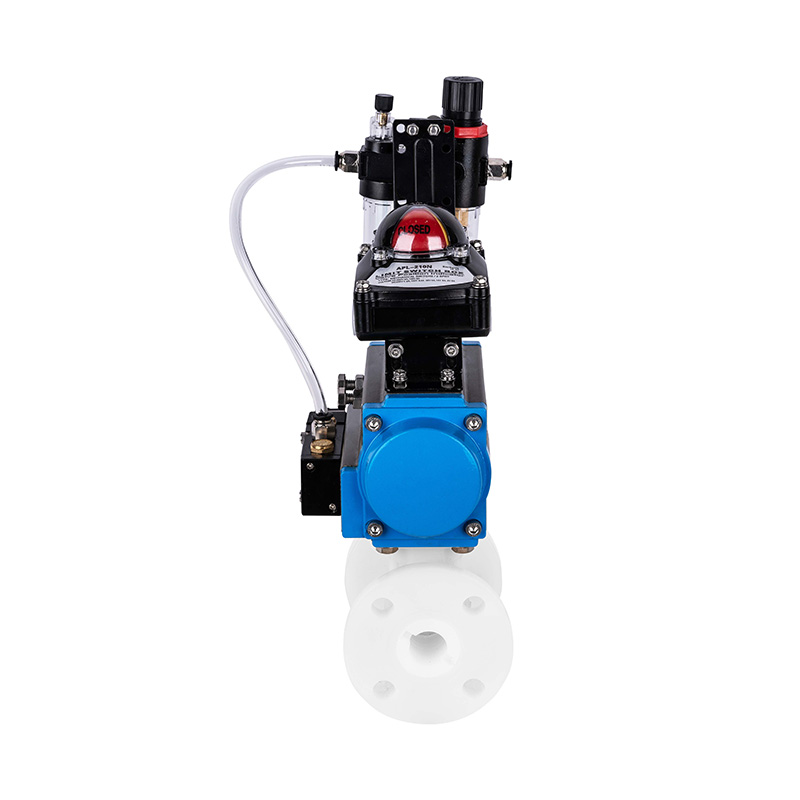

PVDF Pneumaticum Flange Ball Valve DN15-300

Competitive price CPVC Electric Actuator Butterfly Valve Custom 300mm 400mm 1200mm Plastic Wafer Type Double Flanged Butterfly Valve pro Agriculture et aqua systema

Type: Gloria Valvulae

Locus Origin: China

Nomen notam: KXPV

Exemplar Number: D971X-10V

Applicationem: General

Temperature of Media: High Temperature, Medium Temperature

Potentia: Pneumatica

Media: Acid

Portus Size: DN32-1000

Structure: Gloria

Corpus materiale: CPVC

Connection: Flange desinit

Standard: DIN3352 F4

Usus: Industry

Temperature: -10--70

Delivery Time: 7 Days

MOQ:1 Piece

PREV：CPVC Pneumatica Flange Ball Valve DN15-300
NEXT：PPH Pneumatica Flange Ball Valvae DN15-300 0086 180 6712 3173 Nobis loquere

Descriptio
Additional Information

Praecipua structural Features

1. Engineering series plasticae globulus valvae FRPP, PVDF, CPVC, UPVC, PPH etc. corrosio resistentiae plasticae thermoplasticae, quae in unam iniectionem fingitur formatae, validam facultatem habet ad corrosionem resistendi.

2. Sigillum reliable, foramen parvum ac claudens Aureus apertura et torquatus claudendi.

3. Parva resistentia fluida, Open/prope cito.

4. Simplex structura, pulchra species.

App temperatus tenetur album

Materia	Medium temperatus°C	Materia	Medium temperatus°C
CPVC	-20℃~ 95℃	PPH	-20℃~ 110℃
UPVC	-0℃~ 65℃	PVDF	-40℃~ 150℃
FRPP	-14℃~ 90℃

Corporaliter forma Sphera Valvae Conventus Detail Tractus

Pars Materia Tabula

Nec.	Nomen	Material
1	Capulus	Aluminium alloy
2	retentis Nucis	FRPP、PVDF、UPVC、CPVC、PPH
3	Interiorem Plug	FRPP、PVDF、UPVC、CPVC、PPH
4	Stem	FRPP、PVDF、UPVC、CPVC、PPH
5	Caulis sigillum	PTFE
6	Signatum pila	PTFE
7	sigillum sede	FRPP、PVDF、UPVC、CPVC、PPH
8	Ball	FRPP、PVDF、UPVC、CPVC、PPH
9	Corpus	FRPP、PVDF、UPVC、CPVC、PPH

Dimension List

DN(mm)	D1	D				L	b	n				Φ
DN(mm)	D1	D	JIS	DIN	ANSI	L	b	n	JIS	DIN	ANSI	Φ	JIS	DIN	ANSI
15(1/2')	95	65	70	65	2.38	120	18	4	4	4	4	14	15	14	0.63
20 (3/4')	105	75	75	75	2.76	120	18	4	4	4	4	14	15	14	0.63
25 (1)	115	85	90	85	3.13	130	18	4	4	4	4	14	19	14	0.63
32（1-1/4')	135	100	100	100	3.45	145	18	4	4	4	4	18	19	18	0.63
40 (1-1/2')	145	110	105	110	3.88	168	20	4	4	4	4	18	19	18	0.63
50 (2).	160	125	120	125	4.74	180	22	4	4	4	4	18	19	18	0.75
65 (2-1/2') ;	180	145	140	145	5.49	225	22	4	4	4	4	18	19	18	0.75
80 (3).	195	160	150	160	6	260	25	8	8	8	4	18	19	18	0.75
100 (4).	215	180	175	180	7.5	280	25	8	8	8	8	18	19	18	0.75
125 (5).	245	210	210	210	8.5	350	30	8	8	8	8	18	23	18	0.87
150 (6).	280	240	240	240	9.51	400	30	8	8	8	8	23	23	23	0.87
200 (8).	335	295	290	295	11.75	400	35	8	12	8	8	23	23	23	0.87
250 (10')	390	350	355	350	14.03	450	38	12	12	12	12	23	25	23	0.97
300(12')	445	400	400	400	16.7	450	40	12	16	12	12	23	25	23	0.97
