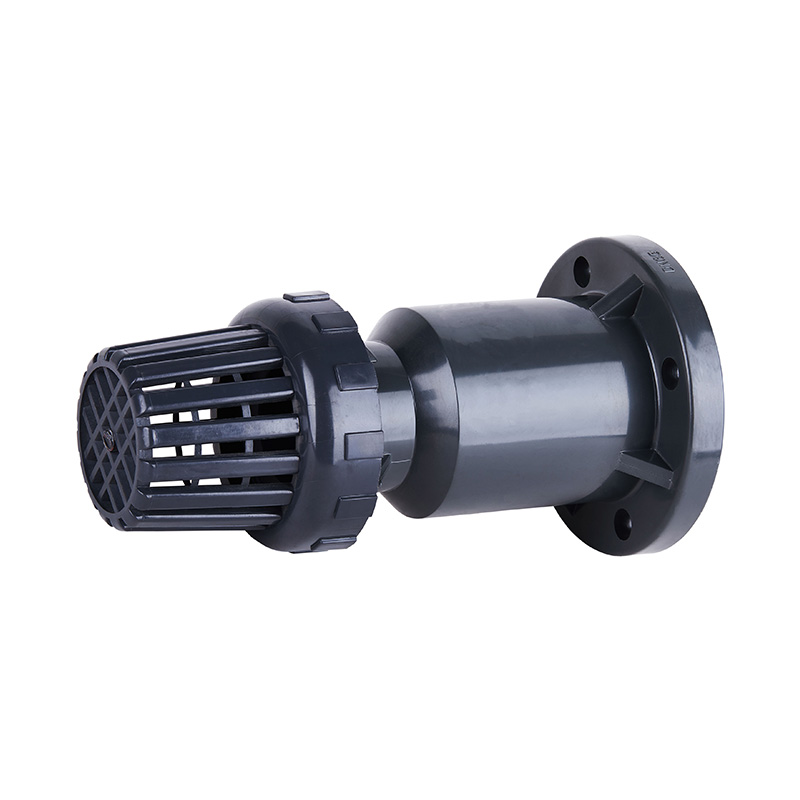

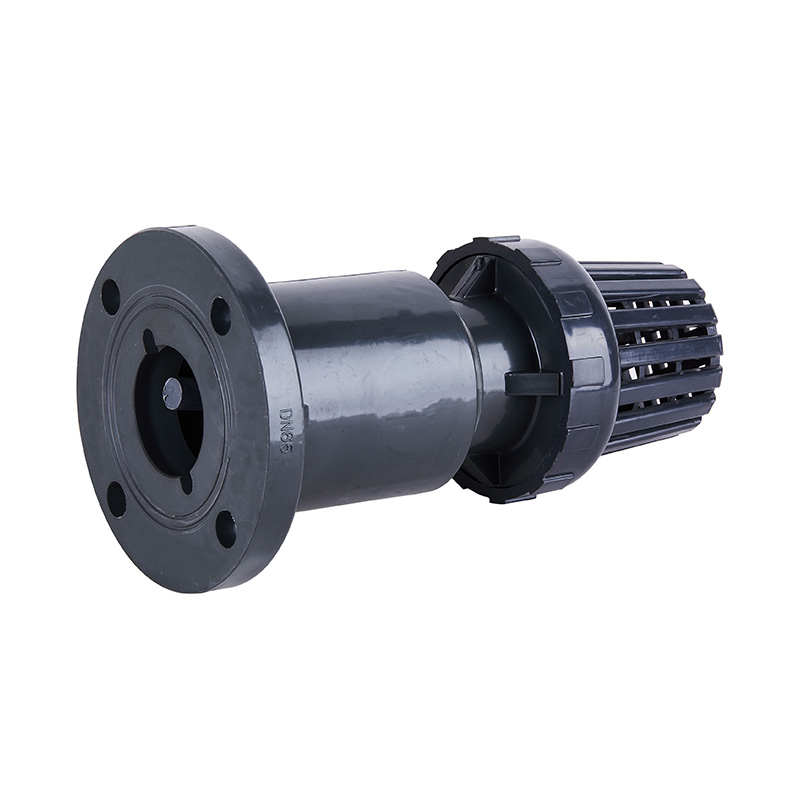

UPVC Bottom Valvae DN15-300

Grey FRPP Pedes Imo Valvae Custom 4 Inch DN15-DN300 Operatum Pes Valvae Plastics Industrialis Minimum pretium aquae industriae

Typus: Pede Valvulae

Locus Origin: China

Nomen notam: KXPV

Exemplar Number: H11F-10V

Applicationem: General

Temperature Media: Medium Temperature, Normal Temperature

Potentia: Manual

Media: Acid

Portus Size: DN15-DN300

Structure: Plug

Product nomen: Bottom valvae

Delivery Time: 7 Days

MOQ: I Piece

Color: Grey

Size: DN15-300

PREV：CPVC Bottom Valvae DN15-300
NEXT：PVDF Bottom Valve DN15-300 0086 180 6712 3173 Nobis loquere

Descriptio
Additional Information

Pars Materia Tabula

Nec.	Nomen	Materia
1	Persona Network	FRPP, PVDF, CPVC, UPVC, PPH
2	Factio	FRPP, PVDF, CPVC, UPVC, PPH
3	Flexilis pads	EPDM,FPM
4	Nucis	FRPP, PVDF, CPVC, UPVC, PPH
5	Flexilis	EPDM,FPM
6	Pistoris	FRPP, PVDF, CPVC, UPVC, PPH
7	Corpus	FRPP, PVDF, CPVC, UPVC, PPH

Imo Valvae Conventus Detail Tractus

Praecipua structural Features

1. Magnitudo ab DN50 ad DN150 mensura producta sunt.

2. Ab DN200 ad DN300 congruentes mos requiruntur ad producendum.

3. Omnino signatus.

4.Smaller pressionis amissio.

5. Bonus effectus h*ydrau.

6.Simple institutionem et usum

Pars Material Tabula

Nec.	Nomen	Material
1	Corpus	FRPP, PVDF, CPVC, UPVC, PPH
2	Pistoris	FRPP, PVDF, CPVC, UPVC, PPH
3	sigillum rubber	EPDM,FPM
4	Nucis	FRPP, PVDF, CPVC, UPVC, PPH
5	signare	EPDM,FPM
6	Partitio	FRPP, PVDF, CPVC, UPVC, PPH
7	Persona Network	FRPP, PVDF, CPVC, UPVC, PPH

Dimension List

DN (mm)	D1	D2			L	h	n-Φ
DN (mm)	D1	GB	JIS	ANSI	L	h	GB	JIS	ANSI
15(1/2")	105	65	70	2.38	140	15	4-Φ17X20	4-Φ19	4-Φ16
20 (3/4")	105	75	75	2.76	168	16	4-Φ17X20	4-Φ19	4-Φ16
25 (1)	115	85	90	3.13	189	16	4-Φ17X20	4-Φ19	4-Φ16
32 (1/2").	135	100	100	3.45	210	18	4-Φ17X20	4-Φ19	4-Φ19
40 (13/4")	145	110	105	3.88	238	18	4-Φ17X20	4-Φ19	4-Φ19
50 (2)	160	125	120	4.74	215	17	4-Φ17X20	4-Φ19	4-Φ19
65 (21/2").	170	145	140	5.49	235	14	4-Φ17X20	4-Φ19	4-Φ19
80 (3).	192	160	150	6	265	21	8-Φ18X20	8-Φ19	4-Φ19
100 (4")	220	180	175	7.5	315	23	8-Φ18X20	8-Φ19	8-Φ19
125 (5).	250	210	210	8.5	335	31	8-Φ19	8-Φ23	8-Φ22
150 (6).	282	240	240	9.51	335	31	8-Φ21	8-Φ23	8-Φ22
200 (8).	335	295	290	11.75	380	32	8-Φ23	12-Φ23	8-Φ22
250 (10")	395	350	355	14.25	550	37	12-Φ25	12-Φ25	12-Φ25
300 (12")	445	400	400	17	550	40	12-Φ25	16-Φ25	12-Φ25
