    • Home / Products / Plastic Valvae Series / Papilio Valvae Series / PVC-U D71X-10U Palpate Papilio Valvae DN40-200 1-1/2"-8" ANSI Standard

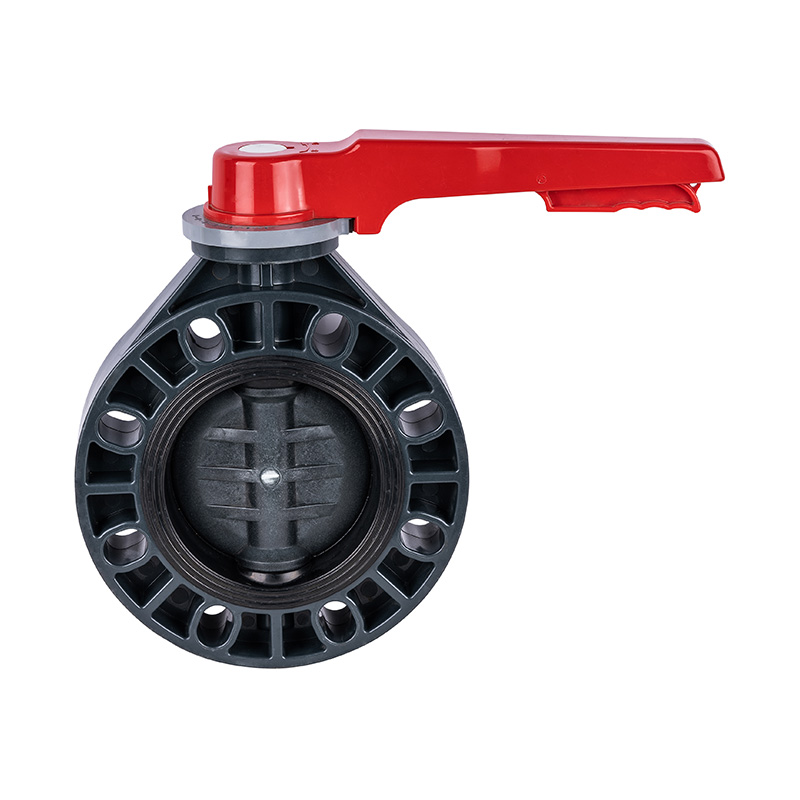

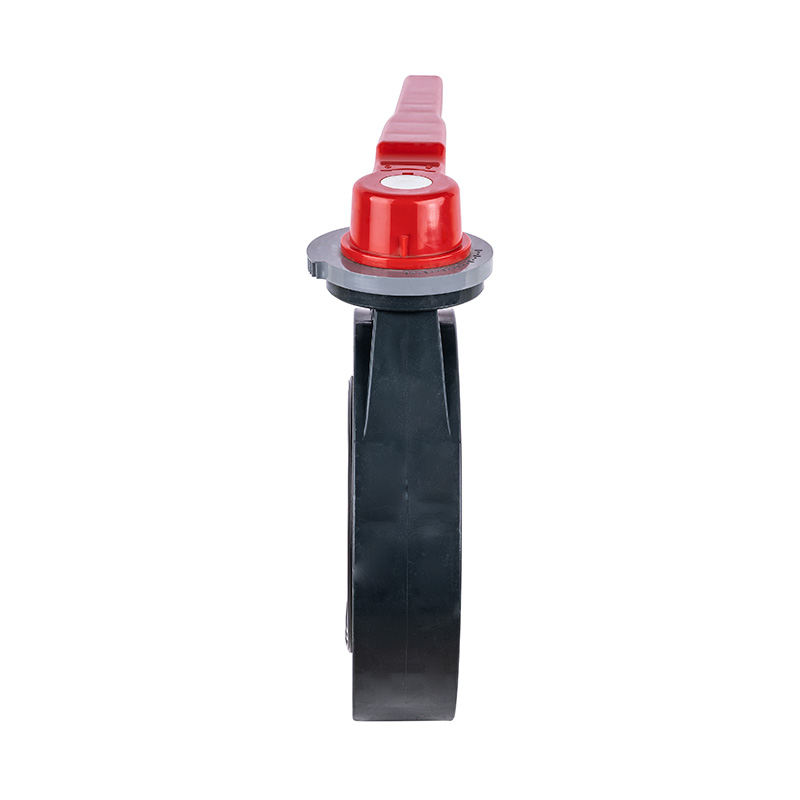

    PVC-U D71X-10U Palpate Papilio Valvae DN40-200 1-1/2'-8' ANSI Standard

    PVC-U D71X-10U Palpate Papilio Valvae DN40-200 1-1/2"-8" ANSI Standard

    Novus adventus PVC-U manus Lever Papilio Valvae DN15-200 Industrial Mollis-Sigillum Centrum Signatum Plastic Valvae ANSI Standard
    Exemplar: DN15–200
    Operatio Modus: Manual
    Connection Type: Wafer
    Structura: Centrum signatum
    Signantes Type: Resiliens obsignatum
    Stem: Standard
    Pressura Classis: 1.0Mpa（10bar）
    Temperature opus: -5~45℃
    Superficiem Material signantes: Mollis Sigillum
    Applicationem: Industrial Usus, Aquae Curatio Usus
    Caulis Material: Steel, Steel
    Brand: KXPV
    Specification: DN15-200
    Origin: Zhejiang, Ningbo

    Contact Us
    PREV：PVC-C D71X-10V Palpate Papilio Valve DN40-200 1-1/2"-8" ANSI Standard
    DEINDE：FRPP D371X-10S Worm-Gear Papilio Valvae DN32-1000 GB Standard
    Product Features structuralis
    1. Plectrum compactum et leve est, facile disgregat et conservatur, et quovis loco institui potest.
    2. Simplex et compacta compages cum torque operante humili, permittens celeri XC° gyrationis ad foramen velox.
    3. Linear fluxus habet cum optima regula perficiendi

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

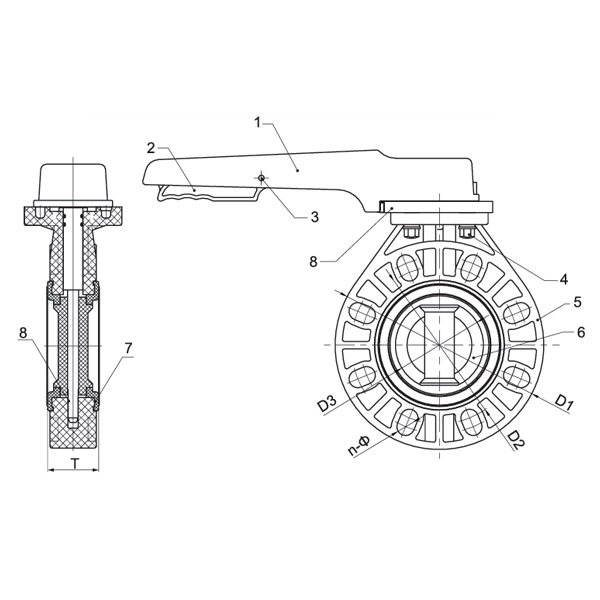

    Pars Materia Tabula

    Nec. Nomen Materia Qty.
    PVC-C PVC-U PVDF PPH FRPP
    1 Palpate Admisce materia 1
    2 Locating rod Admisce materia 1
    3 Positioning plate Admisce materia 1
    4 Nucis Cup FRPP PPH FRPP 4
    5 Corpus PVC-C PVC-U PVDF PPH FRPP 1
    6 Disc PVC-C PVC-U PVDF PPH FRPP 1
    7 signantes rubber FPM EPDM FPM EPDM 1
    8 Stem Steel 1
    9 Pin Steel 1

    Dimension List

    Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm)
    1½»(40) 148 96 110 41.5 39 4-Φ19*25
    2"(50) 162 108 125 48.5 43 4-Φ19*26
    2½» (65) 180 128 145 63 45 4-Φ19*26
    3»(80) 196 148 160 75.5 45 8-Φ19*24
    4"(100) 225 168 191 95 56.5 8-Φ19*29
    5» (125) 255 200 216 120 65 8-Φ23*31
    6"(150) 285 225 241 143.5 75 8-Φ23*31
    8"(200) 340 280 299 195 85 8-Φ23*32
    JIS:12-Φ23*27
