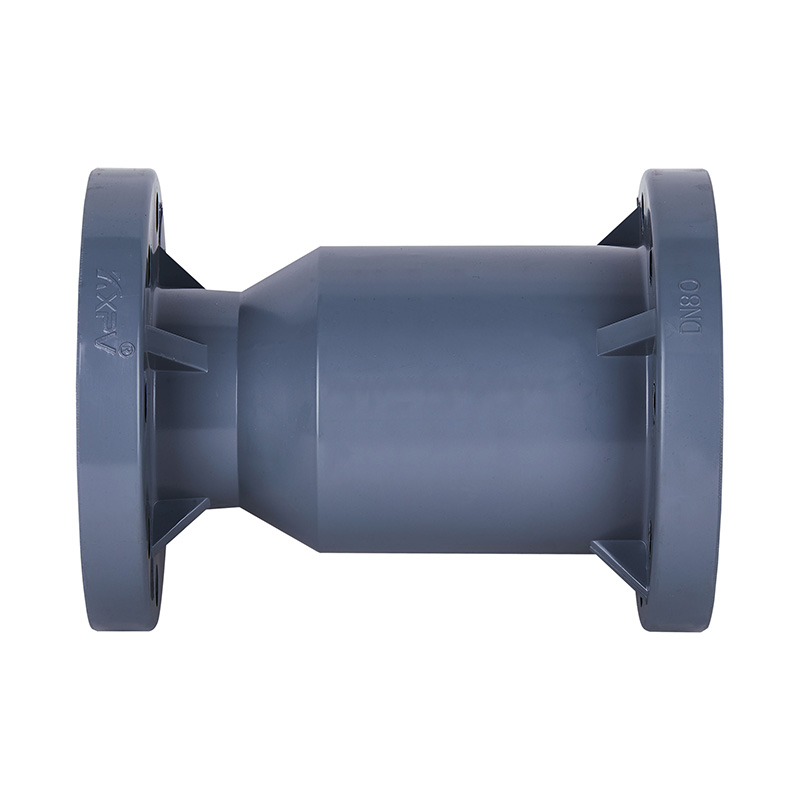

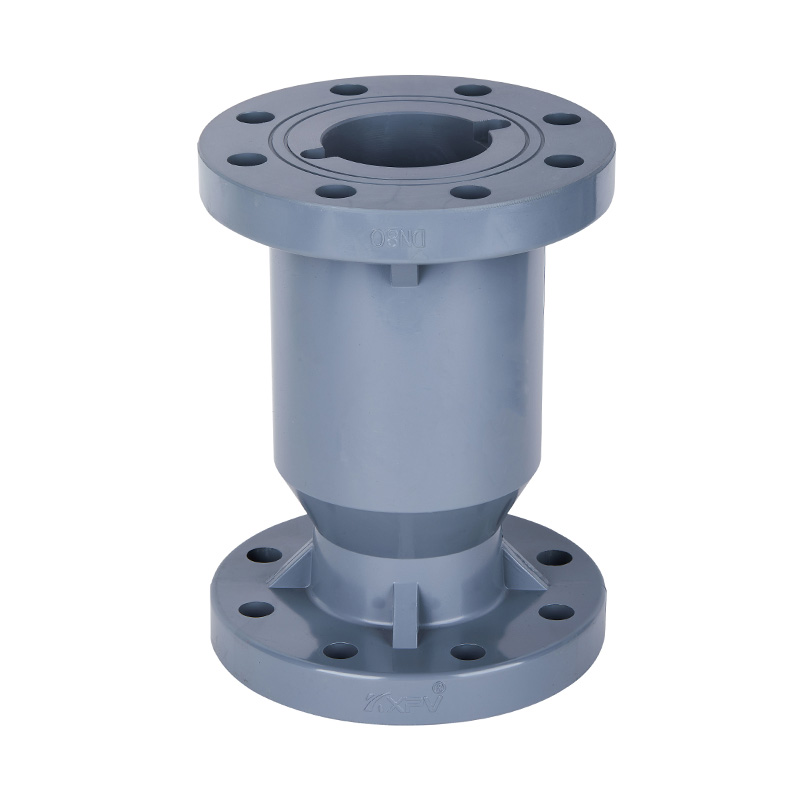

CPVC Ball Reprehendo Valvae DN15-300

Factory Price CPVC Vertical Ball Check Valvae Flang Finit DN15-DN300 plastica manus industriae rota reprehendo pila valvulae pro purgamentorum

Typus: Plastic Reprehendo Valvulae

Origin: Zhejiang, China

Nomen notam: KXPV

Exemplar Number: H41F-10V

Applicationem: General

Temperature Media: Medium Temperature, Normal Temperature

Potentia: Manual

Media: Acid

Portus Size: DN15-DN300

Structure: Reprehendo

Product nomen: Vertical reprehendo valvae

Connection: Flange desinit

Medium:Acid

Opus pressura: 0-10bar

Operatio: Manum Rota

Corpus materiale: Plastic

Delivery Time: 7 Days

MOQ:1 Piece

PREV：FRPP adductius Type Reprehendo Valvae DN15-300
NEXT：UPVC Ball Reprehendo Valvae DN15-300 0086 180 6712 3173 Nobis loquere

Descriptio
Additional Information

Product structuram features

1.Corrosion resistentia

Omnes materiae plasticae validam h*abent resistentiam corrosionis et resistentiam late corrosionis aquae marinae, omnia genera acidorum et alcali et aliarum chemicorum, quoad valvae internae et externae.

2.Large fluxus

Cum parva resistentia fluxus et pressura humilis iactura.

3. natura non-return

Partes minores sunt, et sola pars nexus non suscipit pressuram externam.

Fabrica altae praecisiones, ambitus clausae, phaenomenon non current.

4.Small et lux

Levis miniaturization facile est plectrum in parva positione instituere, cum simplici et facili structuram removere.

Ball Reprehendo Valvae Conventus Detail Tractus

Pars Materia Tabula

Nec.	Nomen	Material
1	Corpus	FRPP, PVDF, CPVC, UPVC, PPH
2	Core pila	FRPP, PVDF, CPVC, UPVC, PPH
3	Sub pila	FRPP, PVDF, CPVC, UPVC, PPH
4	sigillum stent	FRPP, PVDF, CPVC, UPVC, PPH

Dimension List

DN (mm)	D1	D			L	h	n			Φ
DN (mm)	D1	GB	JIS	ANSI	L	h	GB	JIS	ANSI	GB	JIS	ANSI
15(1/2")	95	65	70	2.38	120	15	4	4	4	14	15	16
20 (3/4")	105	75	75	2.76	120	16	4	4	4	14	15	16
25 (1)	115	85	90	3.13	130	16	4	4	4	14	19	16
32 (11/4")	135	100	100	3.45	145	18	4	4	4	18	19	16
40 (11/2")	145	110	105	3.88	168	20	4	4	4	18	19	16
50 (2)	160	125	120	4.74	180	20	4	4	4	18	19	19
65 (21/2").	180	145	140	5.49	225	22	4	4	4	18	19	19
80 (3).	195	160	150	6	260	25	8	8	4	18	19	19
100 (4")	215	180	175	7.5	280	25	8	8	8	18	19	19
125 (5).	245	210	210	8.5	350	30	8	8	8	18	23	22
150 (6).	280	240	240	9.51	400	30	8	8	8	22	23	22
200 (8).	335	295	290	11.75	400	35	8	12	8	22	23	22
250 (10")	390	350	355	14.25	450	38	12	12	12	22	25	25
300 (12")	445	400	400	17	450	38	12	16	12	22	25	25
