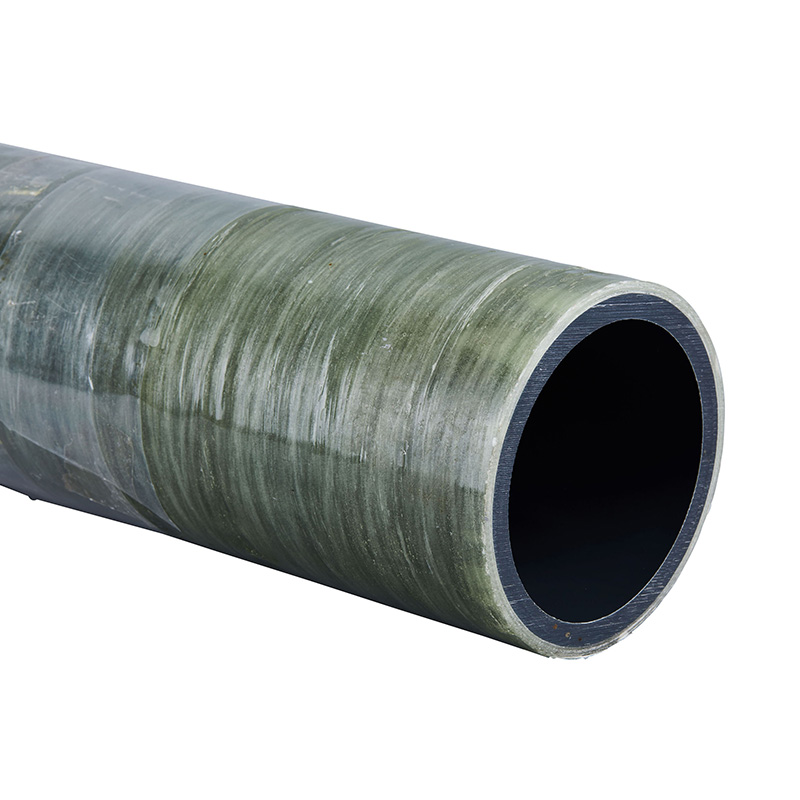

FRP/CPVC/UPVC Composite Pipe Fittings aqua et constructione usus
Origin: Zhejiang, China
Nomen notam: KXPV
Materia:FRP/CPVC/UPVC
Standard: DIN
Packing:Plastic film
Delivery Time: 7 Days
MOQ: I Piece
Supply Ability:100000 Meter/Meters per Month
FRP/CPVC/UPVC Composite Pipe Fittings aqua et constructione usus
Origin: Zhejiang, China
Nomen notam: KXPV
Materia:FRP/CPVC/UPVC
Standard: DIN
Packing:Plastic film
Delivery Time: 7 Days
MOQ: I Piece
Supply Ability:100000 Meter/Meters per Month

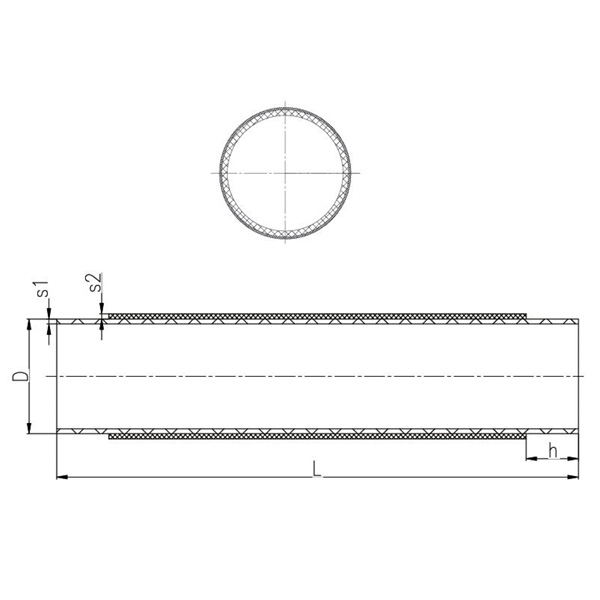

| FRP Clad Pipe（PN1.0MPa） |
| Nominal | Nominal | UPVC dn | S2 | UPVC Wall crassitudine | S3 | S2 S3 ≈ S4 | L | ligula | ||
| S4 Tolerantia | ||||||||||
| 15 | 1.0 | 20 | 0.5 | 2.3 | 0.5 | 2.5 | 3 | 0.4 | 4000 | 44 |
| 0 | 0 | |||||||||
| 20 | 1.0 | 25 | 0.5 | 2.5 | 0.5 | 2.5 | 3 | 0.4 | 4000 | 47 |
| 0 | 0 | |||||||||
| 25 | 1.0 | 32 | 0.5 | 2.5 | 0.5 | 2.5 | 3 | 0.4 | 4000 | 50 |
| 0 | 0 | |||||||||
| 32 | 1.0 | 40 | 0.5 | 2.7 | 0.5 | 2.5 | 3 | 0.4 | 4000 | 55 |
| 0 | 0 | |||||||||
| 40 | 1.0 | 50 | 0.5 | 3.1 | 0.6 | 3 | 3.5 | 0.5 | 4000 | 56 |
| 0 | 0 | |||||||||
| 50 | 1.0 | 63 | 0.5 | 3.6 0 | 0.7 | 3 | 3.5 | 0.5 | 4000 | 58 |
| 0 | 0 | |||||||||
| 65 | 1.0 | 75 | 0.5 | 3.8 | 0.7 | 3 | 3.5 | 0.5 | 4000 | 66 |
| 0 | 0 | |||||||||
| 80 | 1.0 | 90 | 0.5 | 4.3 | 0.9 | 3 | 3.5 | 0.5 | 4000 | 72 |
| 0 | 0 | |||||||||
| 100 | 1.0 | 110 | 0.5 | 4.8 | 1.0 | 3 | 3.5 | 0.6 | 4000 | 82 |
| 0 | 0 | |||||||||
| 125 | 1.0 | 140 | 0.5 | 6.1 | 1.2 | 3.5 | 4 | 0.6 | 4000 | 96 |
| 0 | 0 | |||||||||
| 150 | 1.0 | 160 | 0.5 | 7.9 | 1.4 | 3.5 | 4 | 0.6 | 4000 | 106 |
| 0 | 0 | |||||||||
| 200 | 1.0 | 225 | 0.5 | 9.7 | 1.5 | 3.5 | 4 | 0.6 | 4000 | 140 |
| 0 | 0 | |||||||||
| 250 | 1.0 | 280 | 0.5 | 12.2 | 1.7 | 4 | 4.5 | 0.7 | 4000 | 166 |
| 0 | 0 | |||||||||
| 300 | 1.0 | 315 | 0.5 | 13.6 | 1.9 | 4 | 4.5 | 0.7 | 4000 | 184 |
| 0 | 0 | |||||||||
| 350 | 1.0 | 355 | 0.5 | 14.8 | 2.0 | 5 | 5.5 | 0.8 | 4000 | 204 |
| 0 | 0 | |||||||||
| 400 | 1.0 | 400 | 0.5 | 15.3 | 2.1 | 5 | 5.5 | 0.8 | 4000 | 226 |
| 0 | 0 | |||||||||
| 500 | 1.0 | 500 | 0.5 | 19.1 | 2.1 |
|
| 4000 | 280 | |
| 0 | ||||||||||
| 600 | 1.0 | 630 | 0.5 | 24.1 | 2.1 |
|
| 4000 | 350 | |
| 0 | ||||||||||
| FRP Clad Pipe（PN1.6MPa） |
| Nominal | Nominal | Nominal | tolerantia | UPVC Murus crassitudine | S3 | S2 S3 ≈ S4 | L | ligula | ||
| S4 tolerantia | ||||||||||
| 15 | 1.6 | 20 | 0.2 | 2.5 | 0.5 | 3 | 3 | 0.5 | 4000 | 44 |
| 0 | 0 | |||||||||
| 20 | 1.6 | 25 | 0.2 | 2.5 | 0.5 | 3 | 3 | 0.5 | 4000 | 47 |
| 0 | 0 | |||||||||
| 25 | 1.6 | 32 | 0.2 | 2.8 | 0.5 | 3 | 3 | 0.5 | 4000 | 50 |
| 0 | 0 | |||||||||
| 32 | 1.6 | 40 | 0.2 | 3.0 | 0.5 | 3 | 3 | 0.5 | 4000 | 55 |
| 0 | 0 | |||||||||
| 40 | 1.6 | 50 | 0.2 | 3.5 | 0.6 | 3 | 3.5 | 0.5 | 4000 | 56 |
| 0 | 0 | |||||||||
| 50 | 1.6 | 63 | 0.3 | 4.5 | 0.7 | 3 | 3.5 | 0.5 | 4000 | 58 |
| 0 | 0 | |||||||||
| 65 | 1.6 | 75 | 0.3 | 5.3 | 0.7 | 3 | 3.5 | 0.5 | 4000 | 66 |
| 0 | 0 | |||||||||
| 80 | 1.6 | 90 | 0.3 | 6.4 | 0.9 | 3 | 3.5 | 0.5 | 4000 | 72 |
| 0 | 0 | |||||||||
| 100 | 1.6 | 110 | 0.4 | 7.8 | 1.0 | 3 | 3.5 | 0.6 | 4000 | 82 |
| 0 | 0 | |||||||||
| 125 | 1.6 | 140 | 0.5 | 9.7 | 1.2 | 3 | 4 | 0.6 | 4000 | 96 |
| 0 | 0 | |||||||||
| 150 | 1.6 | 160 | 0.5 | 11.0 | 1.4 | 4 | 4 | 0.6 | 4000 | 106 |
| 0 | 0 | |||||||||
| 200 | 1.6 | 225 | 0.7 | 12.5 | 1.5 | 4 | 4 | 0.7 | 4000 | 140 |
| 0 | 0 | |||||||||
| 250 | 1.6 | 280 | 0.9 | 14.0 | 1.7 | 5.5 | 4.5 | 0.8 | 4000 | 166 |
| 0 | 0 | |||||||||
| 300 | 1.6 | 315 | 1.0 | 16.0 | 1.9 | 5.5 | 4.5 | 0.8 | 4000 | 184 |
| 0 | 0 | |||||||||
| 350 | 1.6 | 355 | 1.1 | 17.0 | 2.0 | 5.5 | 5.5 | 0.8 | 4000 | 204 |
| 0 | 0 | |||||||||
| 400 | 1.6 | 400 | 1.2 | 18.1 | 2.1 | 5.5 | 5.5 | 0.8 | 4000 | 226 |
| 0 | 0 | |||||||||
Nota: Magnitudo S fistulae compositae a elit et emptore per negotiationem plicari potest.
