    • Home / Products / Corrosio repugnans Pump Series / Jet Pump / RPP Jet Pump GB Standard

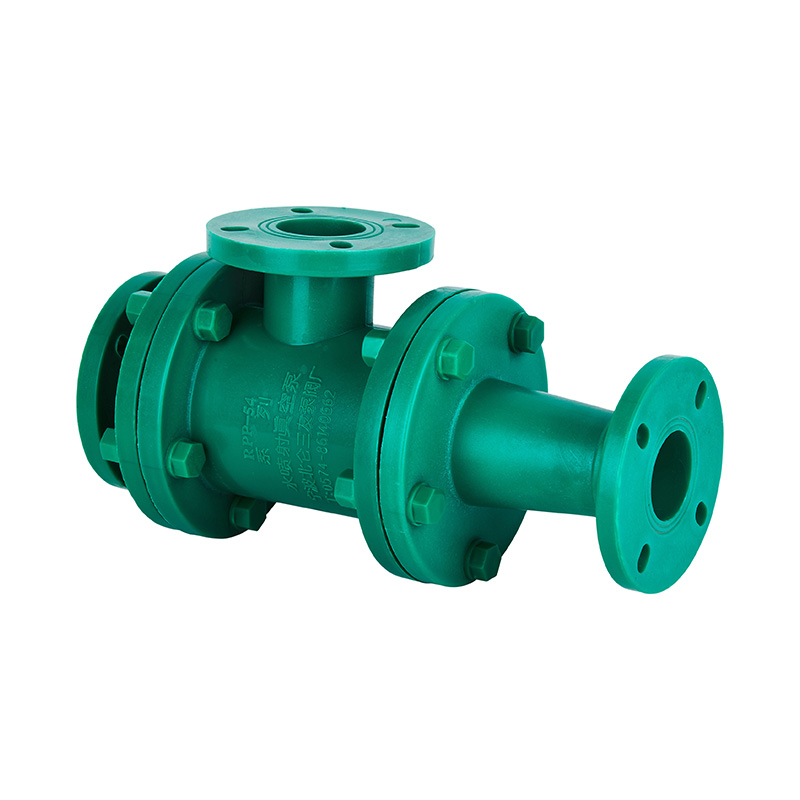

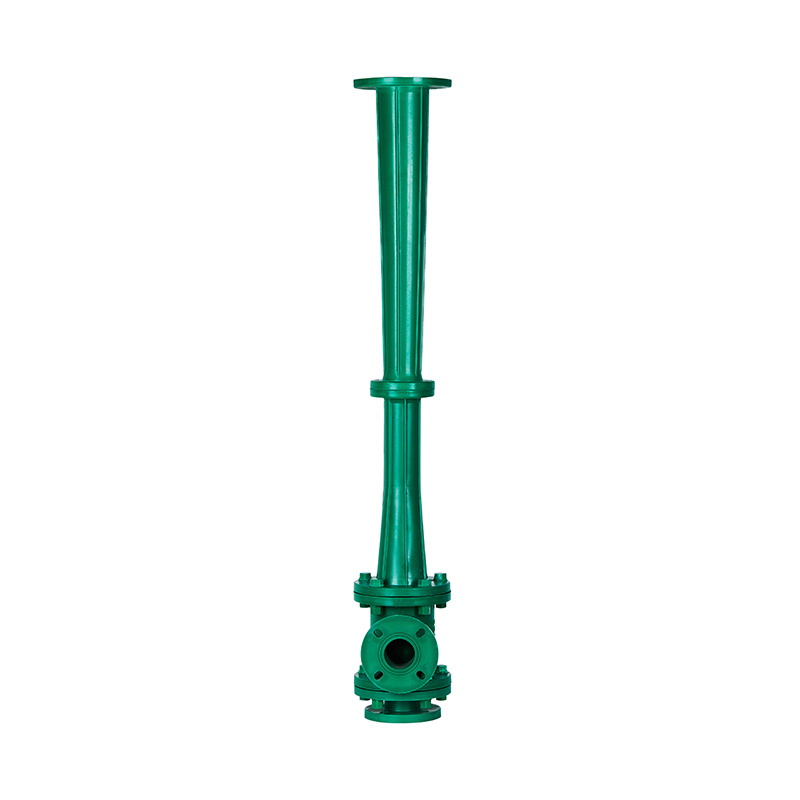

    RPP Jet Pump GB Standard

    RPP Jet Pump GB Standard

    Custom Low Noise Aerated Water Series Connection Jet Pump Plastic FRPP/RPP Jet Water Pump For Water and Chemical Industry
    Nomen notam: KXPV
    Origin: Ningbo, Zhejiang
    Applicatio: aqua curatio Solutiones, Chemical
    Structure: Ejector Pump
    Outlet Size: consuetudo
    Materia: FRPP
    Color: Viridis
    Voltage: Custom
    Potentia: Electric
    Pressura: Pressura
    Product nomen: Jet Pump
    Pluma: Minimum sonitus
    Size: FRPP-25-20/FRPP-80-500
    Delivery time: 7 days
    MOQ: 1 piece
    Usus: Industry
    Supple Facultates: (X) Piece/Paxa per mensem

    Contact Us
    PREV：Nullus prior articulum
    DEINDE：Nullus proximus articulum
    App Temperature Bound List
    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

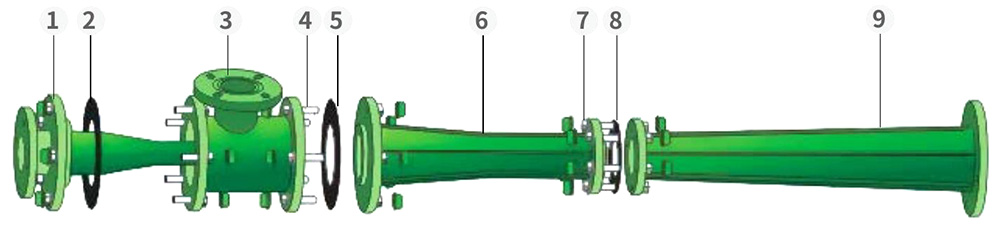

    Type sentinam

    Pars Materia Tabula

    Nec.

    Nomen

    Materia

    1

    LABIUM lingua

    FRPP, PVDF

    2

    Annulus

    EPDM,FPM

    3

    Annulus

    EPDM,FPM

    4

    Sentinam corpus

    FRPP, PVDF

    5

    Liquor iniectio operculo

    FRPP, PVDF

    6

    Sigillum cinematographicum

    EPDM,FPM

    7

    Annulus

    EPDM,FPM

    8

    Refrigescit operculo

    FRPP, PVDF

    9

    Aquam frigidam operimentum

    Steel

    Applicationem locus et Features

    Mobile, industria salutaris, et eco-amice omnia aquae horizontalis plasticae jet vacui sentinae unitas plane constructa est e polypropylene roborata, incluso sentinae centrifugae, jet sentinae, eiector, quiddam piscinae aquae et valvae reprimendae. Unitas notas leves et compactas designationes, operatio humilis strepitus, repugnantia corrosio, non-toxicitas, summus vacuum efficientia, capacitas exhauriendi magna, structura bene machinata. Certam perficientur praestat, institutionem facilem, et sustentationem commodam.

    Late in variis processibus vacuis per industrias adhibentur ut chemica, pharmaceutica, textilia, medicandi, metallurgia, levis industria, et tutela environmental - etiam vacuum effusio, filtrationem, crystallizationem, intentionem, siccationem, deportationem, deodorizationem, deoxidizationem, oxygenationem. Officina nostra praebet integram sentinam vacuum, et clientes etiam eligere possunt ex accessoriis nostris corrosionis repugnantis, inter valvulas reprimendas, valvulas pilas, et systemata limbis.

    FRPP

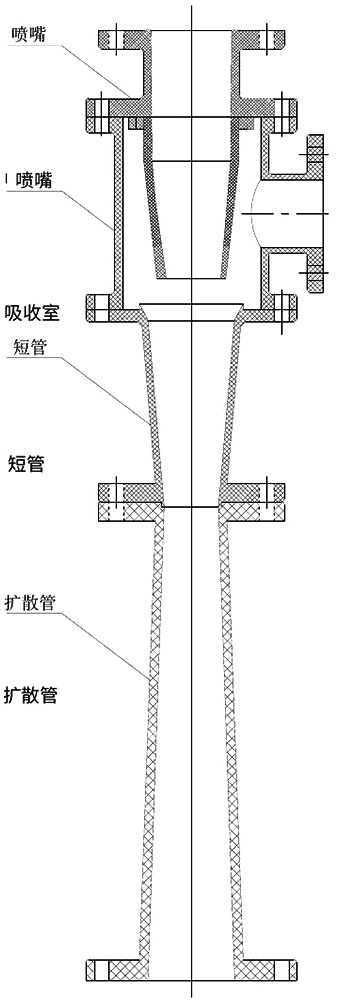

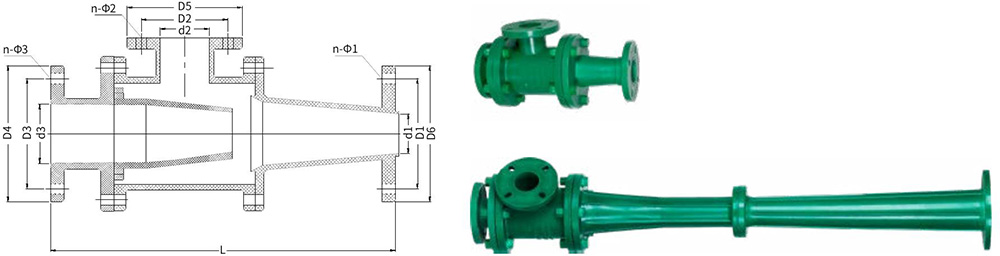

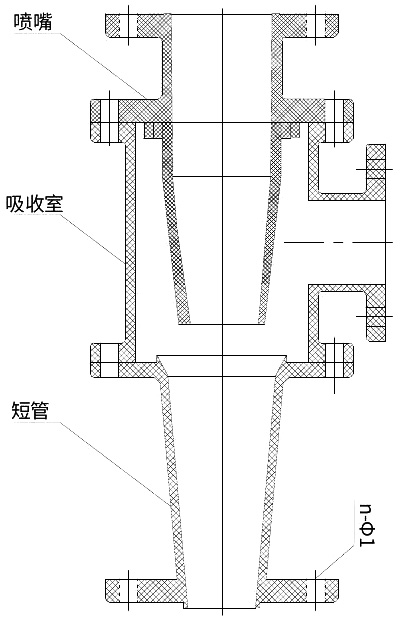

    Aerated aqua series Connection Jet Pump Conventus Detail Drawing

    Pars Materia Tabula

    Nec.

    Nomen

    Materia

    1

    os imbre

    FRPP, PVDF

    2

    Flexilis pads

    EPDM,FPM

    3

    hauriendum est locus

    FRPP, PVDF

    4

    Sexangulae fulmina et nuces

    Steel

    5

    Flexilis pads

    EPDM,FPM

    6

    II longum COLLUM

    FRPP, PVDF

    7

    Sexangulae fulmina et nuces

    Steel

    8

    Flexilis pads

    EPDM,FPM

    9

    Dilata pipe

    FRPP, PVDF

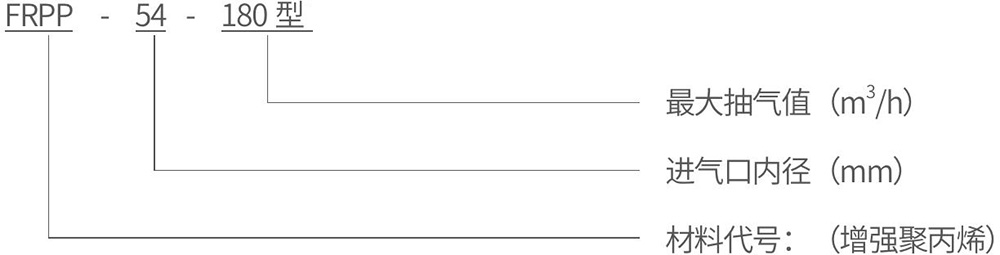

    Totum Set Type Parametri Technical Specifications

    Type Modus vacuum gradum
    Mpa     		Vacuum pignus gradus
    Mpa     		Maxime suctu volumen
    m3/h）     		necesse sentinam potentia centrifuga
    kw）     		Horizontalis paro figuratio magnitudine
    longitudinis altitudo     		dictum
    FRPP-25-20 0.0985 0.098 20 40FP(D)-20(1.5) 800x600x800 Operam: Vacuum Terminal secundum localem
    atmosphaera* technicae moduli curet vacuum gradum.
    FRPP-32-30 0.0985 0.098 30 50FP(D)-22(2.2) 800x700x800
    FRPP-40-60 0.098 0.097 60 40FP(D)-25(3) 1500x900x1150
    FRPP-54-90 0.098 0.097 90 50FP(D)-28(4). 1500x1000x1200
    FRPP-54-110 0.0985 0.0975 110 80FP(D)-30(5.5) 1500x1000x1200
    FRPP-54-180 0.0993 0.098 180 80FP(D)-30(5.5) 1800x1000x1250
    FRPP-54-220 0.0996 0.0984 220 100FP(D)-32(15).. 1850x1000x1300
    FRPP-65-280 0.0993 0.098 280 80FP(D)-32(7.5) 1900x1000x1300
    FRPP-65-360 0.0995 0.098 360 100FP(D)-32(11) 2000x1200x1300
    FRPP-80-500 0.0995 0.098 500 100FP(D)-32(15).. 2000x1200x1500
    Vapor imbre sentinam 0.1 0.0996 Idem Series aquae nexus aerated cum 180.280,360 instruxit, pressio operandi est 0.3Mpa.

    FRPP

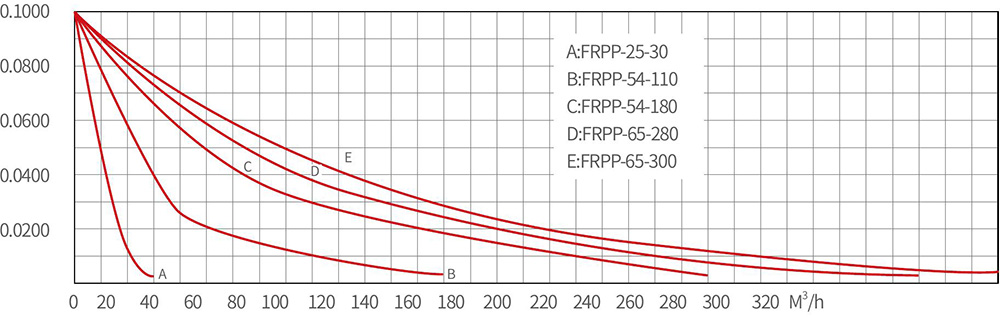

    FRPP Type Spb Water Jet Vacuum Pump Mensurata Parameter euismod Curve

    真空度 Mpa
