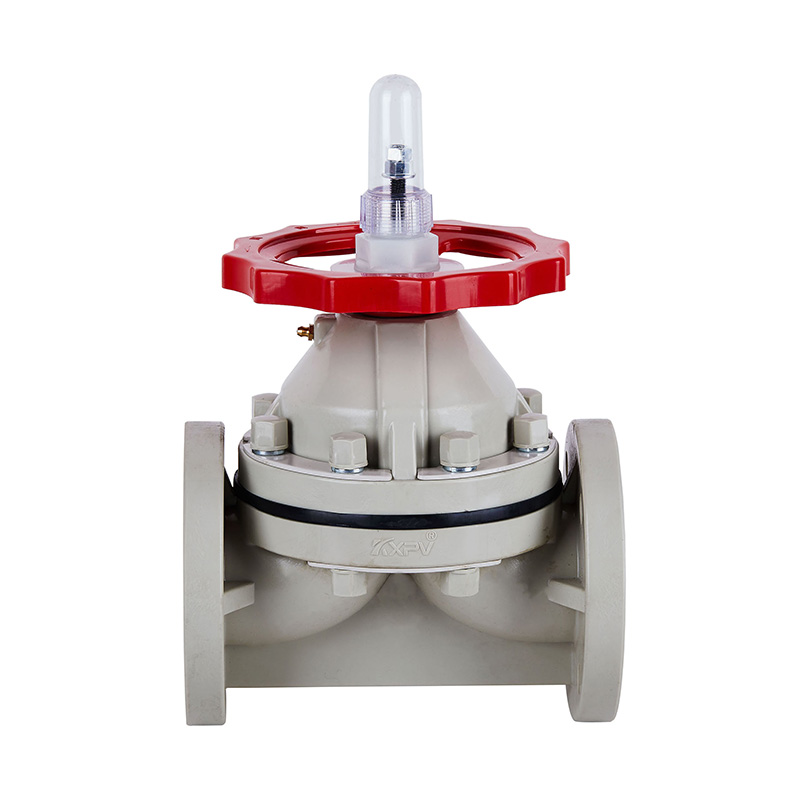

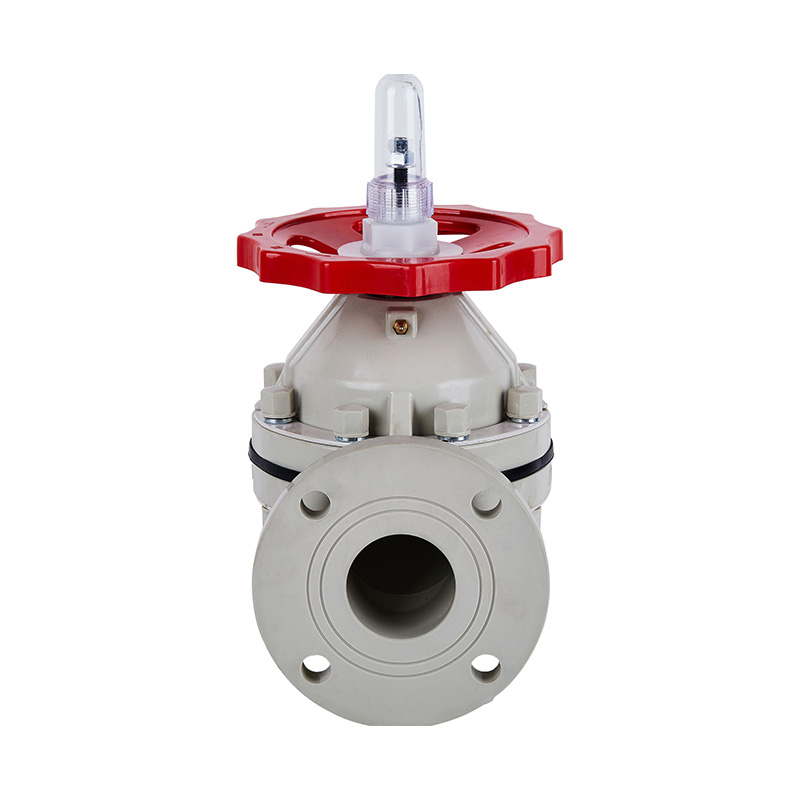

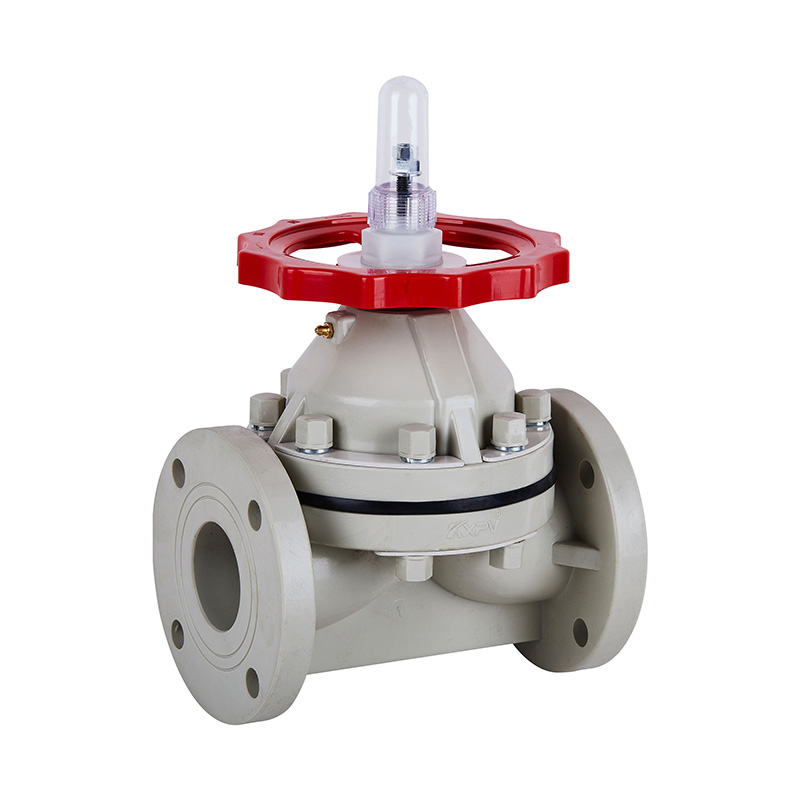

PPH Flange Type Diaphragma Valvae DN15-300

Industrial High Temperature Soft Sigillum Manual Per Via Plastic PPH Diaphragma Valvae Pro Aquae Supple

Applicationem: Generalis Aquarum

Temperature of Media: High Temperature, Medium Temperature

Potentia: Manual

Media: Acid

Portus Size: DN15-DN250

Structura: Diaphragma

Productum nomen: PPH valvae diaphragma

Connection: Flange desinit

Testimonium: ISO9001

Medium:Acid

Opus pressura: 0-10bar

Valvae type: I-modo

Sigillum: EPDM F46

Delivery Time: 7 Days

MOQ:1 Piece

PREV：PVDF Flange Type Diaphragma Valvae DN15-300
NEXT：FRPP LABIUM Type Diaphragma valvae DN15-300 0086 180 6712 3173 Nobis loquere

Descriptio
Additional Information

Pelagus features structurarum

1. Sigillum diaph*ragma ex F46 vel PFA， numerus plicarum est ≥120000 septies et corrosio resistentiae aequiparatur F4.

2. Adoptare cochleae structuram elevantem – vis aperta et occlusio ingens est ac stabilitas bona est.

App temperatus tenetur album

Materia	Medium temperatus°C	Materia	Medium temperatus°C
CPVC	-20℃~ 95℃	PPH	-20℃~ 110℃
UPVC	-0℃~ 65℃	PVDF	-40℃~ 150℃
FRPP	-14℃~ 90℃

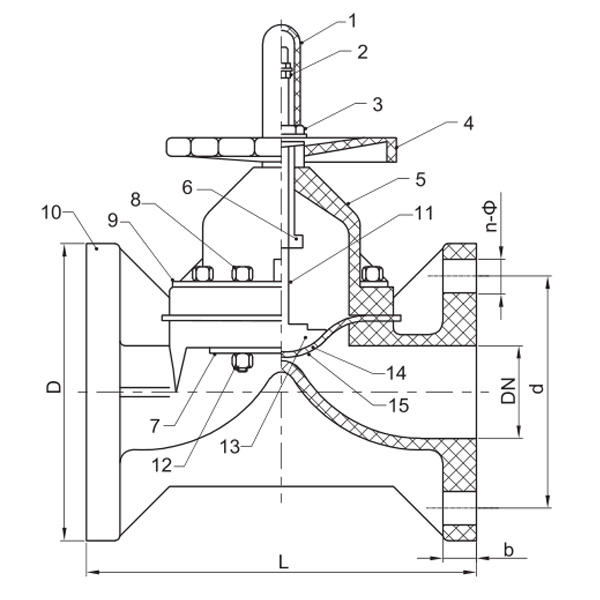

Diaphragmaa Valvae Conventus Detail Tractus

Nec.	Nomen	Materia
1	Operculum limit	AS
2	Stud	Steel，StainlessSteel.
3	retentis Nucis	FRPP
4	elementum	FRPP
5	Rota	Alloy materia
6	Platen	Steel，StainlessSteel
7	Duplex bulla ac Nucis	Steel，StainlessSteel
8	Bonnet	FRPP、PVDF、UPVC、CPVC、PPH
9	Iugum Nut	Ht300 Steel
10	Stem	Steel，StainlessSteel
11	Disc	FRPP、PVDF、UPVC、CPVC、PPH、Steel、StainlessSteel、C.I.FRP
12	Flim	EPDM、FPM
13	Diaphragm	F46.PFA
14	Corpus	FRPP、PVDF、UPVC、CPVC、PPH
15	Platen	Steel，StainlessSteel

Operantes pressura et opus temperatus album

Calibe/MPa/℃	FRPP			PVDF			UPVC			CPVC
Calibe/MPa/℃	14-40	41-60	61-100	40-60	61-90	91-140	20-40	41-60	61-80	0-40	41-60	61-90
15(1/2")	0.8	0.8	0.7	1	0.9	0.7	0.8	0.8	0.7	0.7	0.7	0.6
20(3/4")	0.8	0.8	0.7	1	0.9	0.7	0.8	0.8	0.7	0.7	0.7	0.6
25(1")	0.8	0.8	0.7	1	0.9	0.7	0.8	0.8	0.7	0.7	0.7	0.6
32 (11/4")	0.7	0.7	0.6	1	0.9	0.7	0.7	0.7	0.6	0.7	0.7	0.6
40 (11/2")	0.7	0.7	0.6	0.8	0.7	0.5	0.7	0.7	0.6	0.7	0.7	0.5
50(2")	0.7	0.7	0.6	0.8	0.6	0.5	0.7	0.7	0.6	0.7	0.7	0.5
65(21/2")	0.7	0.7	0.6	0.8	0.5	0.4	0.7	0.7	0.6	0.7	0.7	0.5
80(3")	0.7	0.7	0.6	0.7	0.5	0.4	0.7	0.7	0.6	0.7	0.7	0.5
100 (4")	0.7	0.7	0.6	0.6	0.5	0.4	0.7	0.7	0.6	0.7	0.6	0.5
125(5")	0.5	0.5	0.4	0.5	0.4	0.3	0.5	0.5	0.4	0.5	0.5	0.4
150(6")	0.5	0.5	0.4	0.5	0.3	0.2	0.5	0.5	0.4	0.5	0.4	0.3
200(8")	0.3	0.3	0.2	0.4	0.25	0.2	0.3	0.3	0.2	0.3	0.3	0.25
250 (10")	0.3	0.3	0.2	0.4	0.25	0.2	0.3	0.3	0.2	0.3	0.3	0.2

Dimension List

DN (mm)	D1	D			L	h	n			Φ
DN (mm)	D1	GB	JIS	ANSI	L	h	GB	JIS	ANSI	GB	JIS	ANSI
15(1/2")	95	65	70	2.38	125	14	4	4	4	14	15	16
20 (3/4")	105	75	75	2.76	135	18	4	4	4	14	15	16
25 (1)	115	85	90	3.13	145	18	4	4	4	14	19	16
32 (11/4")	135	100	100	3.45	160	18	4	4	4	18	19	16
40 (11/2")	145	110	105	3.88	180	20	4	4	4	18	19	16
50 (2)	160	125	120	4.74	210	21	4	4	4	18	19	19
65 (21/2")	180	145	140	5.49	250	22	4	4	4	18	19	19
80 (3)	195	160	150	6	300	24	8	8	4	18	19	19
100 (4")	215	180	175	7.5	350	26	8	8	8	18	19	19
125 (5")	245	210	210	8.5	400	30	8	8	8	18	23	22
150 (6")	280	240	240	9.51	455	30	8	8	8	22	23	22
200 (8")	335	295	290	11.75	570	35	8	12	8	22	23	22
250 (10")	390	350	355	14.25	680	38	12	12	12	22	25	25
300 (12")	445	400	400	17	680	38	12	16	12	22	25	25

Locus:	China
Negotium Type:	Manufacturer, Exporter
Brands:
Testimonium:
Exemplar:
Termini solucionis et traditio;
Ordo minimi quantitatis:
Pretium:	Consultatio
Stipare singula:
Tempus adferendi:
Solucionis modum:
