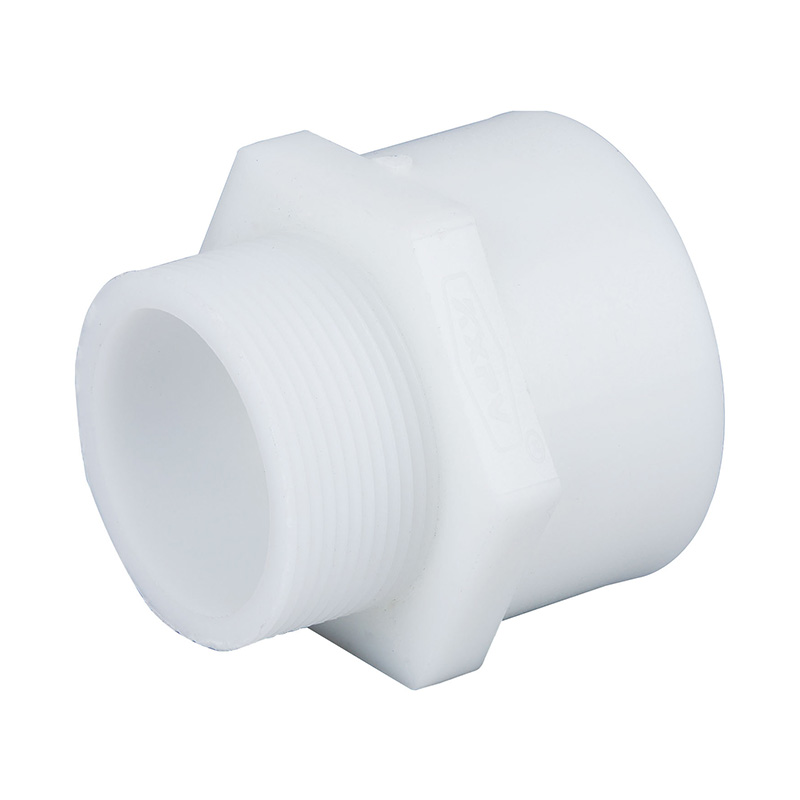

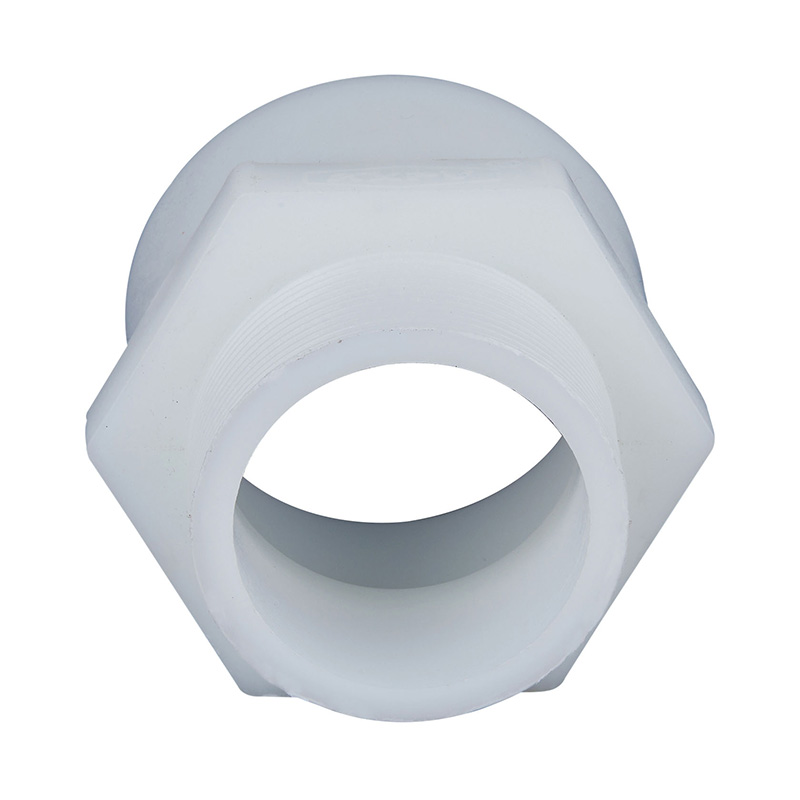

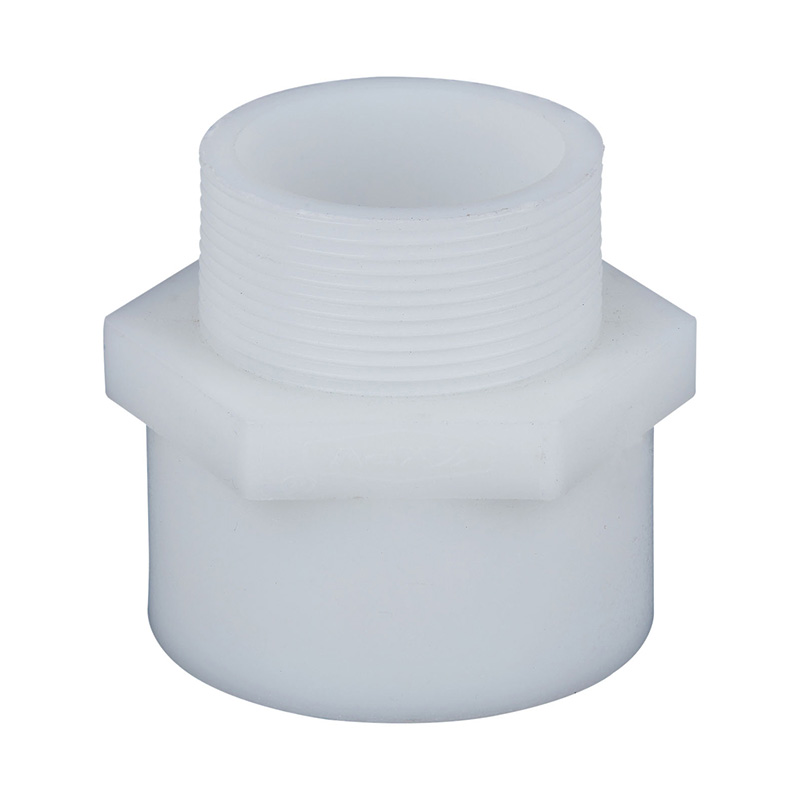

FRPP Male Threaded Adapter DN15-50 GB Standard

FRPP Male Threaded Adapter DN15-50 GB Standard

High quality White FRPP Quick Female Thread Coupling Adapter Plastic DN15-DN50 pipe fittings for Chemical and Water System
Place of Origin:China
Brand Name:KXPV
Material:Plastic
Technics:Forged
Connection:socket
Shape:Equal
Head Code:Square
Color:White
Size:DN15-DN50
Application:Industry
Packing:Carton Box
Working Pressure:1.6Mpa
Delivery Time:7 Days
MOQ:1 Piece
Supply Ability:10000 Piece/Pieces per Month

Contact Us
PREV：FRPP Female Threaded Adapter DN15-65 GB Standard
DEINDE：FRPP 90° Elbow DN15-600 GB Standard
App Temperature Bound List
Material        Medium temperature℃ Material Medium temperature℃
PVC-C -20℃~+95℃ PVC-U -5℃~+45℃
FRPP -20℃~+120℃ PPH -20℃~+110℃
PVDF 40℃~+150℃

Product Structural Features

1. Excellent Heat Resistance
Reinforced polypropylene is a material made by adding glass fiber to pure PP, expanding its application range. Its enhanced heat resistance overcomes the inherent mechanical strength disadvantage of PP, while maintaining its excellent corrosion resistance and increasing its operating temperature.
2. High Mechanical Strength and Excellent Wear Resistance
Its strength, stiffness, hardness, and heat resistance surpass those of low-pressure polyethylene.
Its low linear expansion coefficient provides excellent acid, alkali, and heat resistance.
3. Excellent Impact Toughness
Molding Shrinkage: 1.0-2.5%, significantly reducing shrinkage and significantly improving stiffness. It offers excellent electrical properties and high-frequency insulation, unaffected by humidity.
4. Wide Range of Applications
FRPP, due to its low material cost, long service life, and easy installation, is widely used in piping systems for the chemical, chemical fiber, chlorine-alkali, dye, water supply and drainage, food, pharmaceutical, sewage treatment, and electrolysis industries.

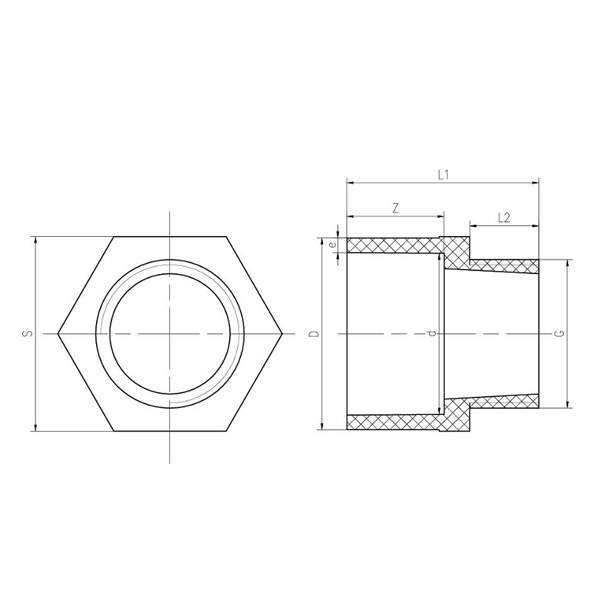

FRPP Male Threaded Adapter

DN D d G L1 L2 Z S e
15  30  20  R1/2 44  18  16  31  5
20  33  25  R3/4 44.5  17.5  19  33.5  4
25  39.5  32  R1 52  23  21.5  40.5  3.6
32  49  40  R1-1/4 58  24.5  25.5  50  4.5
40  60  50  R1-1/2 66  27  30.5  63.5  5
50  73.5  63  R2 73.5  26  37  75  5.2
