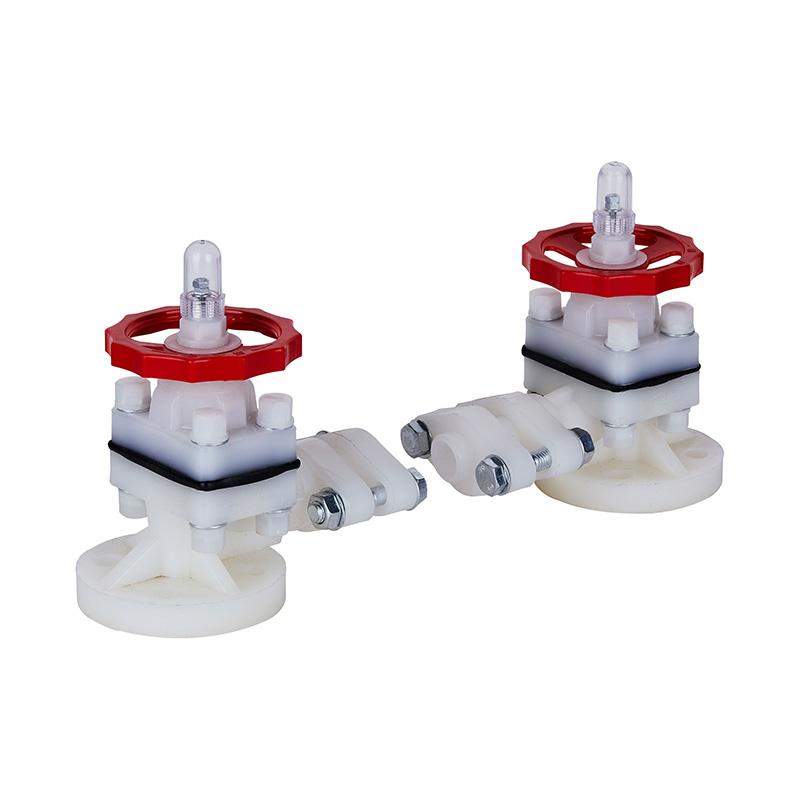

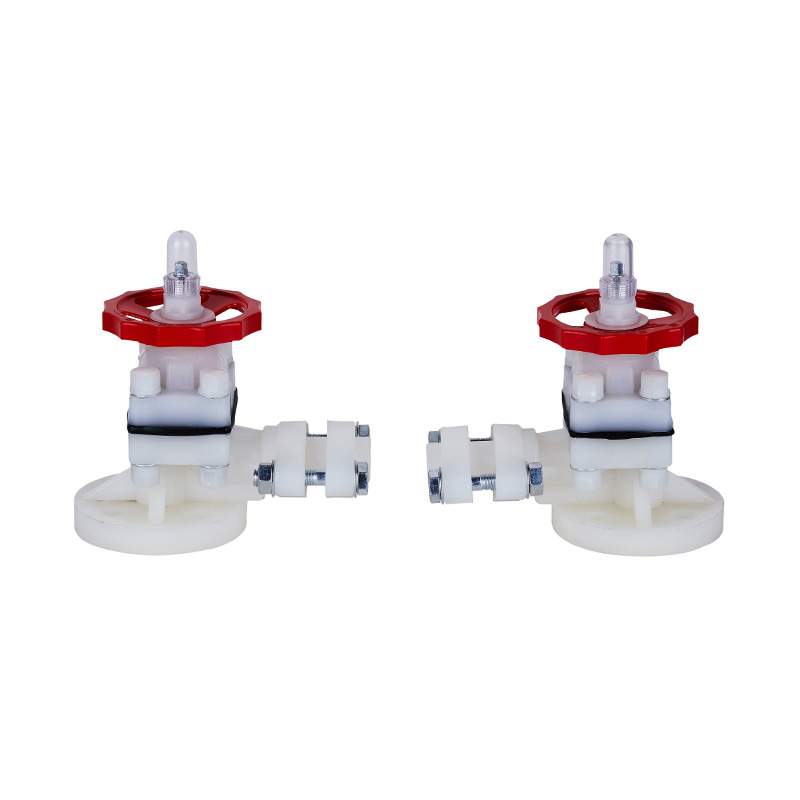

Album et rubrum PVDF Level Indicatores Consuetudinem DN15-50 Aliquam pretium Aqua Silo Plastic PVDF Level Indicatores Curatio Aquarum
Origin: Zhejiang, China
Nomen notam: KXPV
Exemplar Number: G41F-10F
Product nomen: Level Indicis
Color: album et rubrum
Size: DN15-50
Delivery Time: 7 Days
MOQ: I Pieces
Supple Facultates: 10000.0 Piece/Picies per Month
| Pars Materia Tabula |
| Nec. | Nomen | Material |
| 1 | retentis Nucis | FRPP |
| 2 | Manus Wh*ell | Alloy materia |
| 3 | Hex nuces | Steel |
| 4 | Folling plece | Steel |
| 5 | Bonnet | FRPP |
| 6 | Caule nut | mitte lron |
| 7 | Disc | FRPP |
| 8 | Diaphragma | EPDM.F46.PTFE |
| 9 | Corpus | PPH.CPVC.UPVC.FRPP.PVDF |
| 10 | Operculum limit | AS |
| 11 | Liner anulum | FRPP |
| 12 | Nux cap | FRPP |
| 13 | Duplex praevenirent | Steel |
| 14 | Stem | Steel |
| 15 | Codex membranaceus | EPDM |
| 16 | signare | PTFE |
| 17 | Implens partem | Steel |
| 18 | Hex nuces | Steel |
| 19 | Connector | PPH.CPVC.UPVC.FRPP.PVDF |
| 20 | Duplex praevenirent | Steel |
Level Testimonium Conventus Detail Tractus
| Dimension List |
| DN (mm) | D1 | D2 | L1 | L2 | h | n | Φ | ||||||
| GB | JIS | ANSI | GB | JIS | ANSI | GB | JIS | ANSI | |||||
| 15(1/2") | 95 | 65 | 70 | 2.38 | 180 | 50 | 20 | 4 | 4 | 4 | 14 | 15 | 16 |
| 20 (3/4") | 105 | 75 | 75 | 2.76 | 180 | 50 | 18 | 4 | 4 | 4 | 14 | 15 | 16 |
| 25 (1) | 115 | 85 | 90 | 3.13 | 180 | 50 | 19 | 4 | 4 | 4 | 14 | 19 | 16 |
| 32 (11/4") | 135 | 100 | 100 | 3.45 | 180 | 50 | 19 | 4 | 4 | 4 | 18 | 19 | 16 |
| 40 (11/2") | 145 | 110 | 105 | 3.88 | 180 | 50 | 20 | 4 | 4 | 4 | 18 | 19 | 16 |
| 50 (2") | 160 | 125 | 120 | 4.74 | 180 | 50 | 20 | 4 | 4 | 4 | 18 | 19 | 19 |
| Locus: | China |
| Negotium Type: | Manufacturer, Exporter |
| Brands: | |
| Testimonium: | |
| Exemplar: | |
| Termini solucionis et traditio; | |
| Ordo minimi quantitatis: | |
| Pretium: | Consultatio |
| Stipare singula: | |
| Tempus adferendi: | |
| Solucionis modum: |
