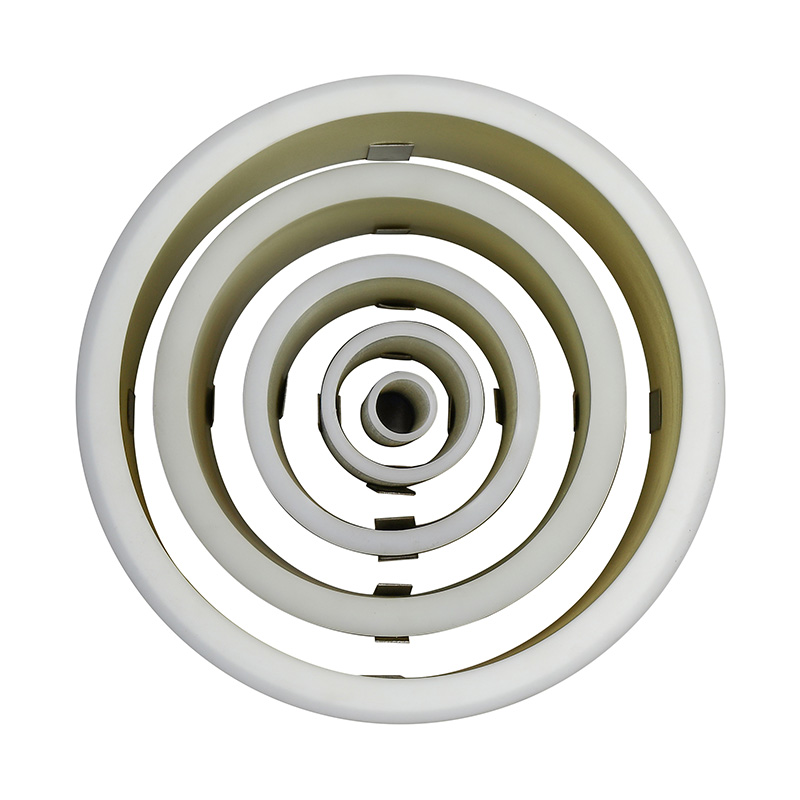

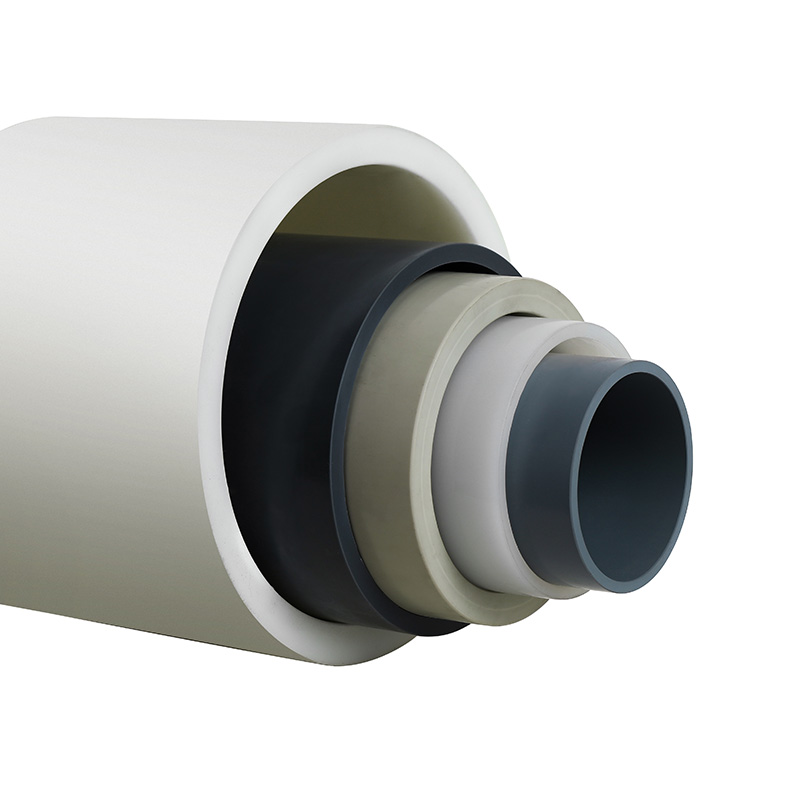

    FRPP Pipes DN15-600 GB Standard

    FRPP Pipes DN15-600 GB Standard

    Consuetudo novissima designata alba summus pressus FRPP circularis fistula ovata 20mm-600mm PN10 aquae copiae fistulae plasticae irrigationis
    Originis loco: Zhejiang. Ningbo
    Nomen notam: KXPV
    Materia: FRPP
    Specification: DN15-DN600
    Longitudo: 4000mm
    Standard: DIN
    Connection Methodi: Tenaces Bonding
    Packaging: Plastic film
    Opus Pressura: PN10
    Color: Alba
    Fundamentum Material: FRPP
    Delivery Time: 7 Days
    Minimum Order Quantity: 1 Piece
    Copia capacitatis: 100,000 metra/mense

    Contact Us
    PREV：FRP/PVC-C、FRP/PVC-U FRP Lineed Pipe DN15-600 GB Standard
    DEINDE：PPH Pipes DN15-600 GB Standard
    Product Features structuralis
    FRPP (confirmata polypropylene) incorporat fibram vitream in polypropylene, superans suam debilitatem mechanicam inhaerentem. Erugo resistere potest ab acida valde coacta et alcali cum pH latitudine 1-14, resistentiam optimam servans corrosionem dum operans in temperaturis ab -20°C usque ad 120°C. FRPP humilis sumptus praebet, vitam longam et facilem institutionem, eamque late adhibet in industrias ut chalybe, metallurgia, petroleum, oeconomiae, fertilizatores, pharmaceuticas, generandi vim, tractationem vasti aquae, bracteam aeris, polysilicon, metalla terrae rara, graphita, nova industria, industria reposita, electronica et semiconductores, et semiconductores.
    App Temperature Bound List
    Materia Medium temperatus° C Materia Medium temperatus° C
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃
    PVC-U Pipes

    DN D L
    (mm)     		1.0MPa 0.8MPa 0.6MPa 0.4MPa
    Φmm S
    (mm)     		KG/M S
    (mm)     		KG/M S
    (mm)     		KG/M S
    (mm)     		KG/M
    15 20 5000 2.1 0.12
    20 25 5000 2.5 0.17
    25 32 5000 3 0.26
    32 40 5000 3.2 0.36
    40 50 5000 4.2 0.58
    50 63 5000 5.2 0.9 4.3 0.76 3.3 0.59 2.8 0.51
    65 75 5000 6.2 1.28 5.1 107 3.9 0.83 3 0.65
    80 90 5000 7.5 1.85 6.1 153 4.7 1.2 3.2 0.83
    100 110 5000 9.1 2.75 7.5 23 5.7 1.78 3.9 1.24
    125 140 5000 11.6 4.45 9.5 3.7 7.2 2.85 5 2.02
    150 160 5000 13.3 5.85 10.8 4.8 8.3 3.76 5.7 2.63
    200 225 5000 18.7 11.5 15.2 95 11.6 7.4 7.9 5.2
    250 280 5000 23.2 17.8 18.9 14.72 14.4 14.1 9.9 7.98
    300 315 5000 26.1 22.5 21.2 8.6 16.2 14.5 11.1 10.07
    350 355 5000 29.4 28.6 23.9 236 18.3 18.5 12.5 12.8
    400 400 5000 33.2 36.5 26.9 2994 20.6 23.32 14.4 16.6
    450 450 5000 30.5 382 23.3 29.7 15.8 20.5
    500 500 5000 33.9 472 25.7 36.4 17.6 25.4
    600 630 5000 24.3 44
