    Compositum reducere GB Standard

    Compositum reducere GB Standard

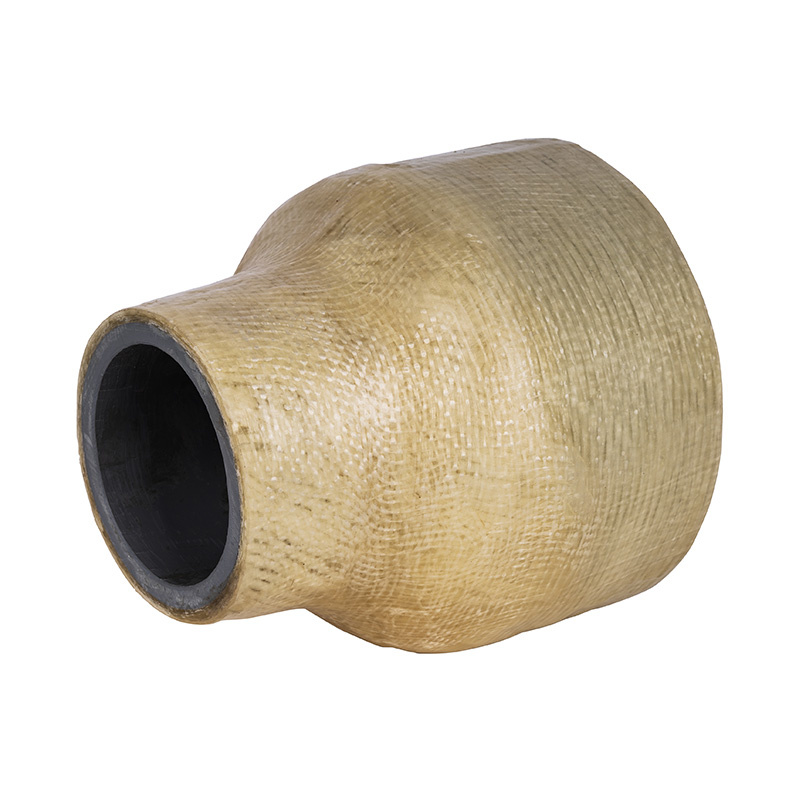

    FRP/PVC-C, FRP/PVC-U Fibreglass Plastic Coated reducer

    Contact Us
    PREV：Compositum finem Cap GB Standard
    DEINDE：Compositum Flange GB Standard
    App Temperature Bound List
    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Product Features structuralis

    1. PERFUSORIUS et summus virtus
    Densitas relativa inter 1.5 et 2.0 est, tantum 1/4 ad 1/5 carbonis ferri, tamen vis eius distrahens accedit vel etiam superat ferrum carbonii, eiusque vires specifica cum gradu stannum ferri comparantur.
    2. Corrosio Repugnantia praeclara
    FRP est materia optima corrosio-repugnans, praestantem resistentiam aeri, aquae, moderatis concentrationibus acidorum, alcali, salium, variisque oleis et menstruis solventibus.
    Electrical 3. Praeclarus Properties
    FRP optima est materia insulantium in insulatoribus adhibita. Bona dielectric proprietates conservat etiam in frequentiis altis et proin transmissione egregias habet.
    4. Praeclara Scelerisque Properties
    FRP scelerisque conductivity humilis habet et conductivity scelerisque 1.25-1.67 kJ/s est, solum 1/100-1/1000 illius metalli, quod praeclaram materiam scelerisque velit.
    5. Optima Designability
    Flexibile consilium variarum structurarum productorum ut certae applicationis exigentiis occurreret, praestantes productum integritatem procurans ac delectorum materiarum ad producti exsecuti requisita occurrentes.
    6. Praeclara Manufacturibilitate
    Flexibilis corona technologiae eligi potest secundum figuram productam, requisita technica, applicationem et quantitatem. Processus simplex est, pro uno gradu coronae concedit, et bona oeconomica praeclara praebet. Hoc maxime utile est pro complexu, provocando, et demisso volumine producto, quod explicans processabilium superiorem.

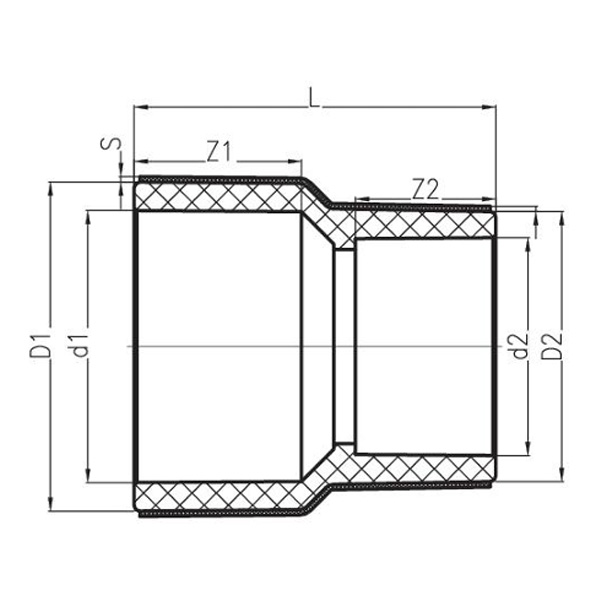

    Compositum reducere

    DN D1 D2 d1 d2 L Z1 Z2 S
    0.6MPa 1.0MPa 1.6MPa
    300*100 351 127 315 110 300.5 163.5 61 4.5 6.5 10
    300*125 351 160 315 140 307 163.5 76 4.5 6.5 10
    300*150 351 180 315 160 311.5 163.5 86 4.5 6.5 10
    300*200 351 251 315 225 325 163.5 118.5 4.5 6.5 10
    300*250 351 310 315 280 336.5 163.5 146 4.5 6.5 10
    350*150 390 184 355 160 343 184 86 5 7.5 11.5
    350*200 390 249 355 225 359 184 119 5 7.5 11.5
    350*250 390 308 355 280 370 184 146 5 7.5 11.5
    350*300 390 346 355 315 378 184 164 5 7.5 11.5
    400*200 440 249 400 225 394 206 119 5.5 8.5 12
    400*250 440 308 400 280 405 206 146 5.5 8.5 12
    400*300 440 346 400 315 413 206 164 5.5 8.5 12
    400* 350 440 390 400 355 423 206 184 5.5 8.5 12
    450* 300 494 346 450 315 454 231 164 6 9.5 14.5
    450* 350 494 390 450 355 463 231 184 6 9.5 14.5
    450* 400 494 440 450 400 472 231 206 6 9.5 14.5
    500*300 548 346 500 315 494 256 164 6.5 10.5 16
    500*350 548 390 500 355 504 256 184 6.5 10.5 16
    500*400 548 440 500 400 513 256 206 6.5 10.5 16
    500*450 548 494 500 450 525 256 231 6.5 10.5 16
    600*300 692 346 630 315 600 321 164 8 12.5 19
    600* 350 692 390 630 355 609 321 184 8 12.5 19
    600* 400 692 440 630 400 618 321 206 8 12.5 19
    600* 450 692 494 630 450 630 321 231 8 12.5 19
    600*500 692 548 630 500 641 321 256 8 12.5 19

    DN D1 D2 d1 d2 L Z1 Z2 S
    0.6MPa 1.0MPa
    		1.6MPa
    20*15 32 27 25 20 42 19 16 2 2.5 3.5
    25*15 40 27 32 20 48.5 22 16 2 2.5 3.5
    25*20 40 32 32 25 49 22 19 2 2.5 3.5
    32*20 50 32 40 25 57 26 19 2 2.5 3.5
    32*25 50 40 40 32 57 26 22 2 2.5 3.5
    40*25 61 40 50 32 67 31 22 2 2.5 3.5
    40* 32 61 50 50 40 67 31 26 2 2.5 3.5
    50*25 75 40 63 32 80.5 38 22 2 2.5 3.5
    50* 32 75 50 63 40 80.5 38 26 2 2.5 3.5
    50*40 75 61 63 50 81 38 31 2 2.5 3.5
    65*25 88 40 75 32 93.5 44 22 2 3 4
    65* 32 88 50 75 40 93.5 44 26 2 3 4
    65*40 88 61 75 50 94 44 31 2 3 4
    65*50 88 75 75 63 95 44 38 2 3 4
    80*25 105 40 90 32 108 51 22 2 3 4
    80* 32 105 50 90 40 108 51 26 2 3 4
    80*40 105 61 90 50 08.5 51 31 2 3 4
    80*50 105 75 90 63 109.5 51 38 2 3 4
    80*65 105 88 90 75 110.5 51 44 2 3 4
    100*40 127 61 110 50 130 61 31 2 3 4
    100*50 127 75 110 63 130 61 38 2 3 4
    100*65 127 88 110 75 130 61 44 2 3 4
    100*80 127 105 110 90 130 61 51 2 3 4
    125*50 161 75 140 63 143 76 38 2.5 4 5.5
    125*65 161 88 140 75 146 76 44 2.5 4 5.5
    125*80 161 105 140 90 149 76 51 2.5 4 5.5
    125*100 161 127 140 110 154 76 61 2.5 4 5.5
    150*65 184 88 160 75 162 86 44 2.5 4 5.5
    150*80 184 105 160 90 165 86 51 2.5 4 5.5
    150*100 184 127 160 110 170 86 61 2.5 4 5.5
    150* 125 184 161 160 140 176 86 76 2.5 4 5.5
    200*80 260 105 225 90 217 119 51 3.5 5 7
    200*100 260 127 225 110 221 119 61 3.5 5 7
    200*125 260 161 225 140 228 119 76 3.5 5 7
    200*150 260 184 225 160 233 119 86 3.5 5 7
    250*200(Φ250*225) 288 260 250 225 265 131 119 4 5.5 8.5
    250*100(Φ280*110) 310 127 280 110 272.5 146 61 4 5.5 8.5
    250* 125(Φ280*14) 310 160 280 140 278 146 76 4 5.5 8.5
    250* 150(Φ280*160) 310 180 280 160 283 146 86 4 5.5 8.5
    250*200(Φ280*225) 310 251 280 225 297 146 118.5 4 5.5 8.5

    Nota: Dimensio S organorum compositorum fistulae minoribus adaptationibus subici potest mutua concordia inter emptorem et emptorem..
