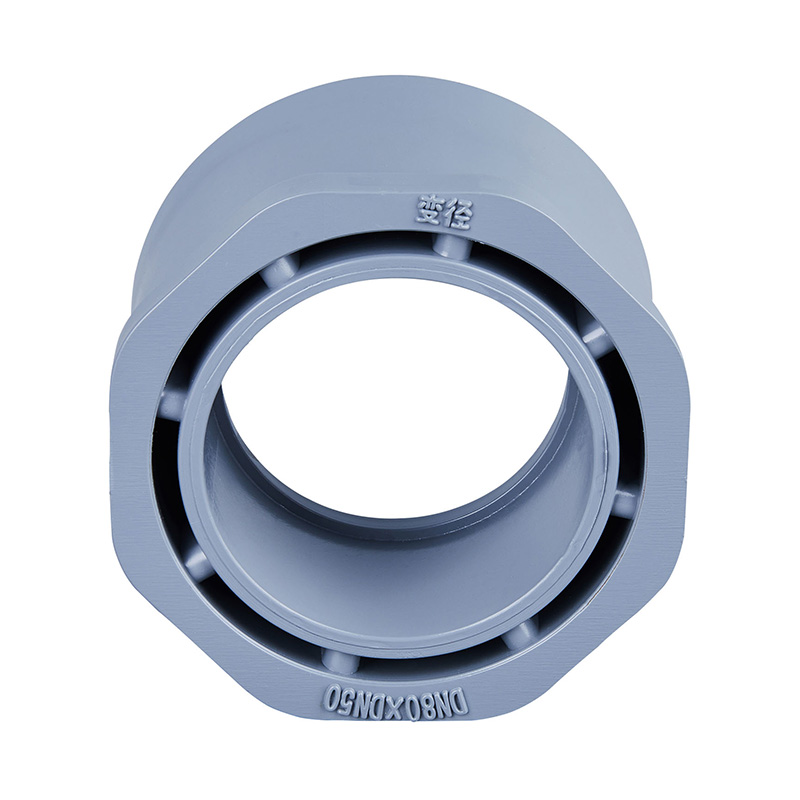

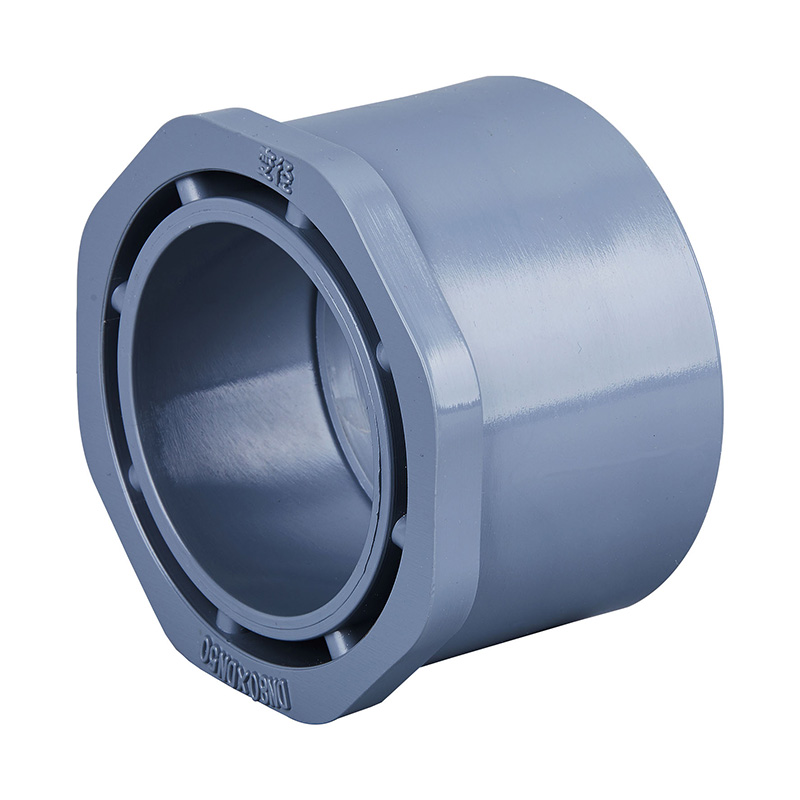

PVC-C Reducer Bushing DN15*20-400*350 GB Standard

PVC-C Reducer Bushing DN15*20-400*350 GB Standard

PVC-C Reducer Bushing DN15-DN600 Organa Plastic fistula aquarum copiam et constructionem incepta
Locum Industry: Industry Chemical
Origin: Ningbo, Zhejiang
Nomen notam: KXPV
Type:Flange
Materia: Plastic
Color: Lux Gray
Sizes: DN15*20-400*350
Applicationem: Industry
Sarcina: lobortis Box
Operationis Impetus: 1.0-1.6Mpa (10-25bar)
Delivery Time: 7 Days
MOQ: 1 Piece
Supple Facultates: 10000 Piece / Pieces per Mense

Contact Us
PREV：PVC-C Male Threaded Adaptor DN15-50 GB Standard
DEINDE：PVC-C 90° Cubitus DN15-600 GB Standard
App Temperature Bound List
Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Product Features structuralis

1. Superior Chemical Resistentia: Lata operans temperatura range -20°C ad 95°C, grave ion contentum in medio aquarum signis ultrapuris obviat, et proprietates hygienicae obviam sanitatis nationalis signa.
2. Praeclara fortitudo, durities, et corrosio chemica resistentia.
3. Durabilitas: Praeclara senescit et UV resistentia signanter extendunt servitutem vitae aliarum rationum limbis.
4. Minimum scelerisque conductivity: Proxime 1/200 ferri; flammam sui exstinguere tarditatem.
5. Leve: Leve, aequivalens 1/5 fistulae ferreae et fistulae aeris 1/6.
6. Humilis resistentia, rate fluit alta: lenis, munda fistula superficies, attritus et adhaesio minimizet cum humoribus importandis.
7. Facilem institutionem, sumptus humiles: nexus tenaces et stamineas in promptu sunt, cum glutino maxime opportuno.

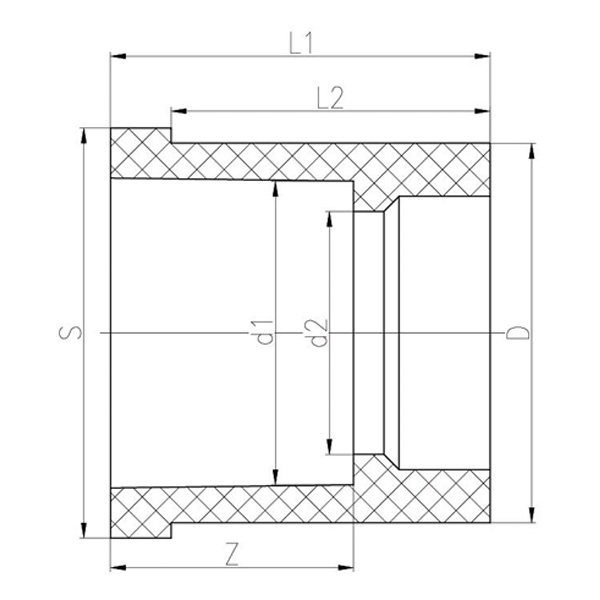

Dimension List

DN D d1 d2 L1 L2 Z S
20*15 25 20 16.5 25 21 16 27.5
25*15 32 20 16.5 27 22 16 35
25*20 32 25 21 27 22 19 35
32*15 40 20 16.5 32 26 16 42.5
32*20 40 25 21 32 26 18 42.5
32*25 40 32 27.5 32.5 26.5 21.5 42.5
40*15 50 20 16.5 39 31 16 54
40*20 50 25 21 39 31 19 54
40*25 50 32 28 39 31 22 54
40* 32 50 40 36 39 31 26 54
50*15 63 20 16.5 47 38 16 67
50*20 63 25 21 47 38 19 67
50*25 63 32 28 47 38 22 67
50* 32 63 40 36 47 38 26 67
50*40 63 50 46 47 38 31 67
65*25 75 32 28 53 44 22 79
65* 32 75 40 36 53 44 26 79
65*40 75 50 46 53 44 31 79
65*50 75 63 58.5 53 44 38 79
80* 32 90 40 35.5 61 51 26 93.5
80*40 90 50 46 61 51 31 93.5
80*50 90 63 59 61 51 38 93.5
80*65 90 75 70 61 51 43.5 93.5
100* 32 110 40 35.5 72.5 60.5 31 113.5
100*40 110 50 46 73 61 31 113.5
100*50 110 63 59 73 61 38 113.5
100*65 110 75 71 73 61 44 113.5
100*80 110 90 84 73 61 49 113.5
125*50 140 63 60 88 76 38 144
125*80 140 90 85 88 76 56 144
125*100 140 110 105 88 76 61 144
150*50 160 63 60 100 86 38 165
150*100 160 110 106 100 86 61 164.5
150* 125 160 140 136 100 86 76 164.5
200*150 225 160 155 135 119 86 228.5
250*50 280 63 60 146 128 37.5 285
250*200 280 225 210 146 128 119 285
300*250 315 280 265 178 158 131 324
350*250 355 280 270 199 184 146 355
350*300 355 315 304 199 184 164 355
400*150 400 160 154 221 206 86 400
400*250 400 280 270 221 206 146 400
400*350 400 355 340 221 206 184 400
