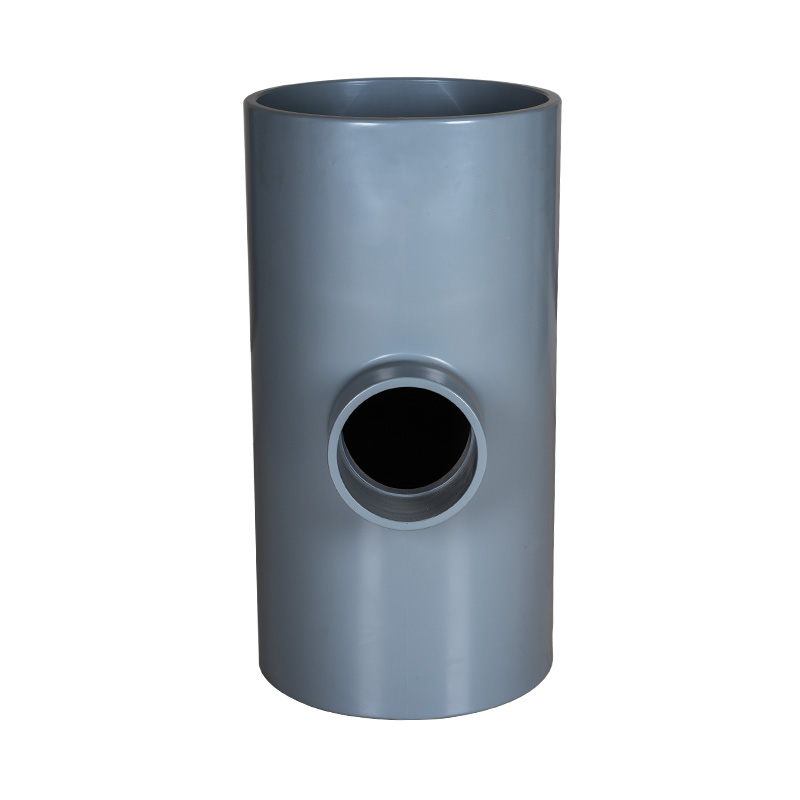

    PVC-C Reducing Tee DN15*20-600*500 GB Standard

    PVC-C Reducing Tee DN15*20-600*500 GB Standard

    Maximum qualitas lucis griseo PVC-C Reducing Tee Male Socket Plastic Pipe Aptationes pro Chemical et Aqua Applications
    Locus Origin: China
    Nomen notam: KXPV
    Technicae: Forged
    Connection: Male, Socket
    Figura: Reducere
    Caput Code: Circum
    Color: Lux Gray
    Applicationem: Industrial et Chemical
    Materia: PVC-C
    Delivery Time: 7 Days
    MOQ: 1 Piece
    Supple Facultates: 10000 Piece / Pieces per Mense

    Contact Us
    PREV：PVC-C Cross DN15-200 GB Standard
    DEINDE：PVC-C Tee DN15-600 GB Standard
    App Temperature Bound List
    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Product Features structuralis

    1. Superior Ch**emical Resistentia: Lata operans temperatura range -20°C ad 95°C, grave ion contentum in medio aquarum signis ultrapuris obviat, et proprietates hygienicae obviam sanitatis nationalis signa.
    2. Praeclara fortitudo, durities, et corrosio chemica resistentia.
    3. Durabilitas: Praeclara senescit et UV resistentia signanter extendunt servitutem vitae aliarum rationum limbis.
    4. Minimum scelerisque conductivity: Proxime 1/200 ferri; flammam sui exstinguere tarditatem.
    5. Leve: Leve, aequivalens 1/5 fistulae ferreae et fistulae aeris 1/6.
    6. Humilis resistentia, rate fluit alta: lenis, munda fistula superficies, attritus et adhaesio minimizet cum humoribus importandis.
    7. Facilem institutionem, sumptus humiles: nexus tenaces et stamineas in promptu sunt, cum glutino maxime opportuno.

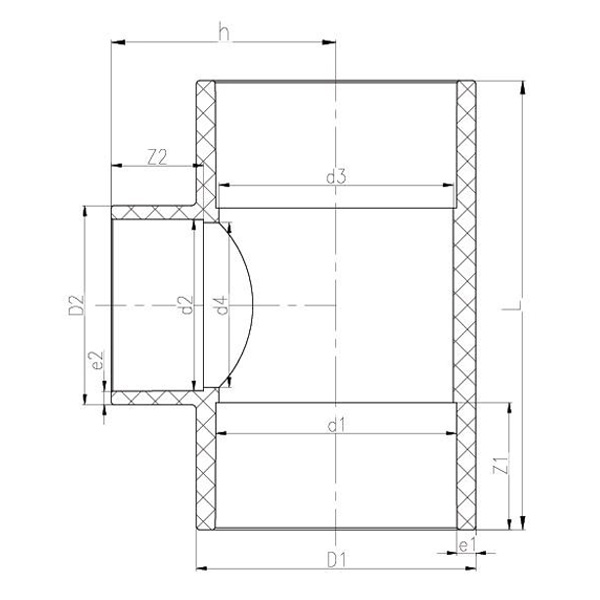

    Dimension List

    DN D1 D2 d1 d2 d3 d4 L h Z1 Z2 e1 e2
    20*15 31.5 26 25 20 20 16 65.5 29.5 19 19 3.2 3
    25*15 41 27 32 20 27 16 80.5 33.5 22 19 4.5 3.5
    25*20 41 31.5 32 25 27 20 80.5 36.5 22 19 4.5 3.2
    32*15 50.5 26 40 20 34 16 96.5 37.25 26 16.5 5.2 3
    32*20 50.5 31.5 40 25 34 20 96.5 40.25 26 19 5.2 3.2
    32*25 50.5 41 40 32 34 27 96.5 43.65 26 22 5.2 4.5
    40*15 63.5 27 50 20 44 16 116 42.85 31 16 6.7 3.5
    40*20 63.5 33 50 25 44 20 116 45.75 31 19 6.7 4
    40*25 63.5 43 50 32 44 27 116 48.65 31 22 6.7 5.5
    40* 32 63.5 51 50 40 44 34 116 52.45 31 26 6.7 5.3
    50*20 79 33 63 25 55 20 143 52 38 19 8 3.8
    50*25 79 41 63 32 55 27 143 55.3 38 22 8 4.5
    50* 32 79 50.5 63 40 55 34 143 60 38 26 8 5.3
    50*40 79 63.5 63 50 55 44 143 63.5 38 31 8 6.6
    65*25 94.5 41 75 32 69 27 168 70.5 44 22 9.7 4.5
    65* 32 94.5 50.5 75 40 69 34 168 64 44 26 9.7 5.2
    65*40 94.5 63 75 50 69 44 168 70 44 31 9.7 6.5
    65*50 94.5 79.5 75 63 69 55 168 79 44 38 9.7 8.2
    80*20 114 42.5 90 25 87 20 197 68.5 50.5 18.5 12 8.7
    80*25 114 42.5 90 32 87 27 197 68.5 50.5 22 12 5.2
    80* 32 114 52 90 40 87 34 197 73.5 50.5 26 12 5.8
    80*40 114 63.5 90 50 87 44 197 78.5 50.5 31 12 6.7
    80*50 114 80 90 63 87 55 197 83 50.5 38 12 8.4
    80*65 114 95 90 75 87 69 197 92 50.5 44 12 10
    100*25 134 41 110 32 106 27 237 77 61 22.5 12 4.4
    100* 32 134 50 110 40 106 34 237 85 61 26 12 5
    100*40 134 63 110 50 106 44 237 89 61 31 12 6.5
    100*50 134 79 110 63 106 55 237 89 61 37.5 12 8
    100*65 134 94.5 110 75 106 69 237 100 61 44 12 9.7
    100*80 134 113.5 110 90 106 87 237 107 61 51 12 11.7
    125*50 163 113 140 63 135 55 297.5 132.5 77 37.5 11.5 8
    125*80 163 113 140 90 135 87 297.5 132.5 77 50.5 11.5 11.5
    125*100 163 134 140 110 135 106 297.5 138.5 77 60.5 11.5 12
    150*50 185.5 79.5 160 63 156 55 337 117.5 85.5 38 12.7 8.2
