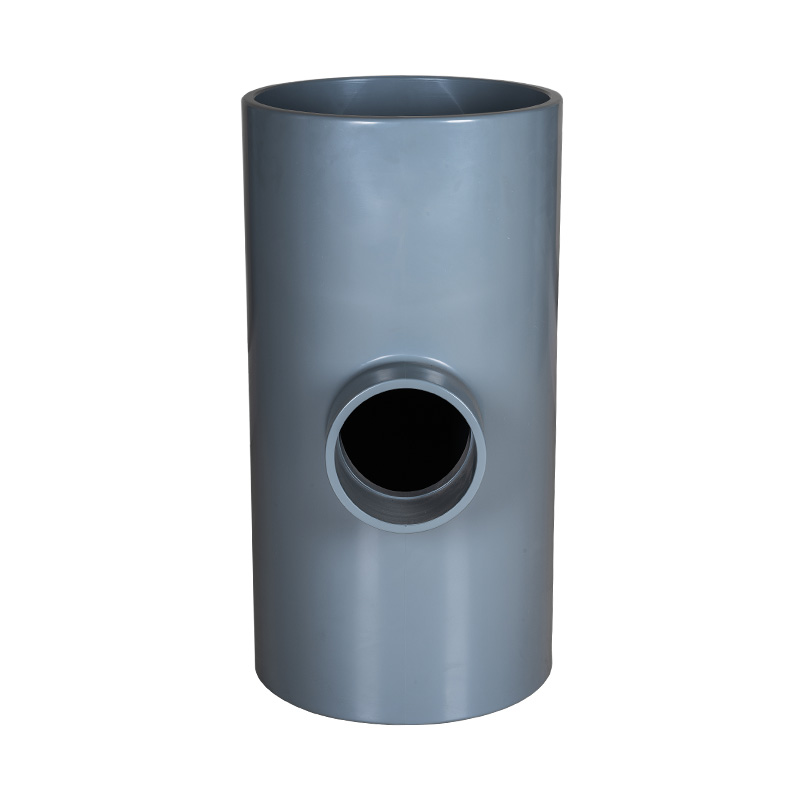

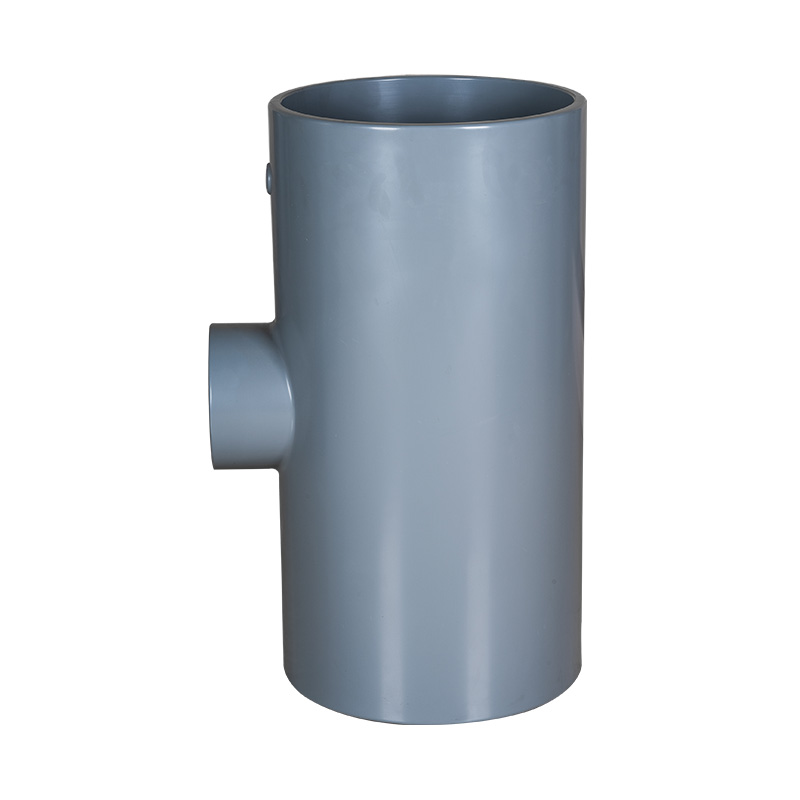

    PVC-C Reducing Tee DN15*20-600*500 1/2*3/4'-24*20' ANSI Standard

    PVC-C Reducing Tee DN15*20-600*500 1/2*3/4"-24*20" ANSI Standard

    High-Quality Light Gray PVC-C Reducing Tee with Internal Thread and Socket Connection, Plastic Pipe Aptus for Chemical and Water Use, ANSI SCH80 Standard
    Origin: China
    Nomen notam: KXPV
    Processus: Forged
    Connection Type: Male, Socket
    Figura: Reducere
    Caput Code: Circum
    Color: Lux Gray
    Applicationem: Industrial et Chemical
    Materia: PVC-C
    Delivery Time: 7 Days
    Minimum Order Quantity: 1 Piece
    Copia capacitatis: 10,000 Pieces/Mense

    Contact Us
    PREV：PVC-C 45° Cubitus DN15-600 1/2"-24" ANSI Standard
    DEINDE：PVC-C Tee DN15-600 1/2"-24" ANSI Standard
    App Temperature Bound List
    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Product Features structuralis

    1. Praeclara chemica Resistentia: Temperatura range lata est ab -20℃ usque ad 95℃. Ion contentus in medio aquarum signis ultra-puram occurrit. Hygiene signa sanitationi nationali obtemperat.
    2. Fortitudo, lentitudo, et Corrosio chemica Resistentia: Materia praestantiorem vim et resistentiam praebet ad corrosionem chemica.
    3.Durability: Canus eximius resistentia et resistentia UV signanter extendunt spatium vitae comparatum aliis systematibus limbis.
    4. Conductivity Low Thermal: Conductivity Thermal est circiter 1/200 ex ferro; flamma retardant proprietates per se exstinguentes.
    5.Lightweight: Pondus tantum circa 1/5 fistulae ferreae et 1/6 tibiarum aeris.
    6.Low Resistentia, Maximum Flow Rate: Murus fistula lenis et munda consequitur in resistentia minima friction et adhaesio cum humores transportandis.
    7. Securus instruitur, ima costa: ligamen, linum, et simpliciter cum tenaces coniungi potest, offerens solutionem sumptus-efficax et amicabilis utentis.

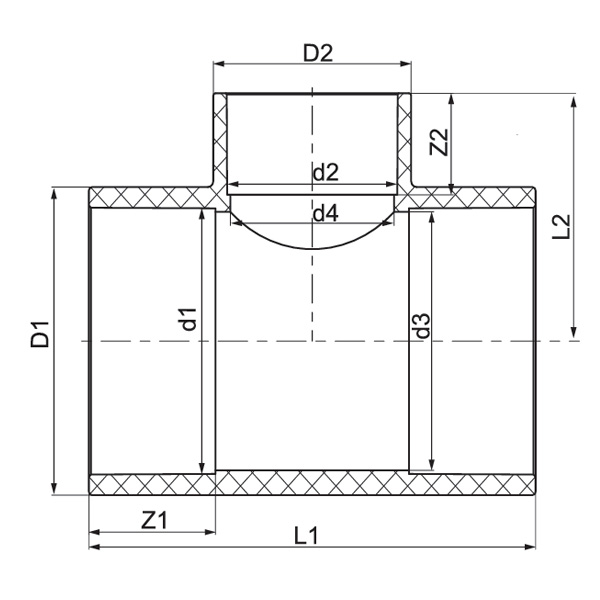

    Dimension List

    Specification D1
    (mm)     		D2
    (mm)     		d1
    (mm)     		d2
    (mm)     		d3
    (mm)     		d4
    (mm)     		L1
    (mm)     		L2
    (mm)     		Z1
    (mm)     		Z2
    (mm)
    3/4″* 1/2″（20*15） 37 31.5 26.67 21.34 23 18 78 38.5 25.5 22.5
    1″* 1/2″（25*15） 45 31.5 33.4 21.34 29 18 87 42.5 29 22.5
    1″* 3/4″（25*10） 45 37 33.4 26.67 29 23 92 45.5 29 25.5
    1¼″* 1/2″（32*15） 54.5 31.5 42.16 21.34 38 18 93 47 32 22.5
    1¼″* 3/4″（32*20） 54.5 37 42.16 26.67 38 23 99 50 32 25.5
    1¼″* 1″（32*25） 54.5 45 42.16 33.4 38 29 104 53.5 32 29
    1½″* 3/4″（40*20） 61 37 48.26 26.67 44 23 105 53.5 35 25.5
    1½″* 1″（40*25） 61 45 48.26 33.4 44 29 115 57 35 29
    1½″* 1¼″（40*32） 61 54.5 48.26 42.16 44 38 120 60 35 32
    2″* 1″（50*25） 74 45 60.32 33.4 55 29 119 63 38.5 29
    2″* 1¼″（50*32） 74 54.5 60.32 42.16 55 38 128 66 38.5 32
    2″* 1½″（50*40） 74 61 60.32 48.26 55 44 134 69 38.5 35
    2½″* 1¼″（65*32） 90 54.5 73.02 42.16 68 38 143 73.5 45 32
    2½″* 1½″（65*40） 90 61 73.02 48.26 68 44 149 76.5 45 35
    2½″* 2″（65*50） 90 74 73.02 60.32 68 55 160 80 45 38.5
    3″* 1½″（80*40） 107 61 88.9 48.26 83 44 157 85 48 35
    3″* 2″（80*50） 107 74 88.9 60.32 83 55 168 88.5 48 38.5
    3″* 2½″（80*65） 107 90 88.9 73.02 83 68 181 95 48 45
    4″* 2″（100*50） 134 74 114.3 60.32 109 55 188 102 57.5 38.5
    4″* 2½″（100*65） 134 90 114.3 73.02 109 68 201 108.5 57.5 45
    4″* 3″（100*80） 134 107 114.3 88.9 109 83 216 111.5 57.5 48
    5″* 2½″（ 125*65） 162 90 141.3 73.02 134 68 223 122.5 67 45
    5″* 3″（ 125* 80） 162 107 141.3 88.9 134 83 238 125.5 67 48
    5″* 4″（125*100） 162 134 141.3 114.3 134 109 264 135 67 57.5
    6″* 3″（150*80） 192 107 168.28 88.9 160 84 260 140 76.5 48
    6″* 4″（150*100） 192 134 168.28 114.3 160 105 286 149.5 76.5 57.5
    6″* 5″（150*125） 192 162 168.28 141.3 160 132 311 159 76.5 67
    8″* 4″（200*100） 247 134 219.08 114.3 210 86 340 176 102 57.5
    8″* 5″（200*125） 247 162 219.08 141.3 210 105 365 185.5 102 67
    8″* 6″（200* 150） 247 192 219.08 168.28 210 154 391 195 102 76.5
