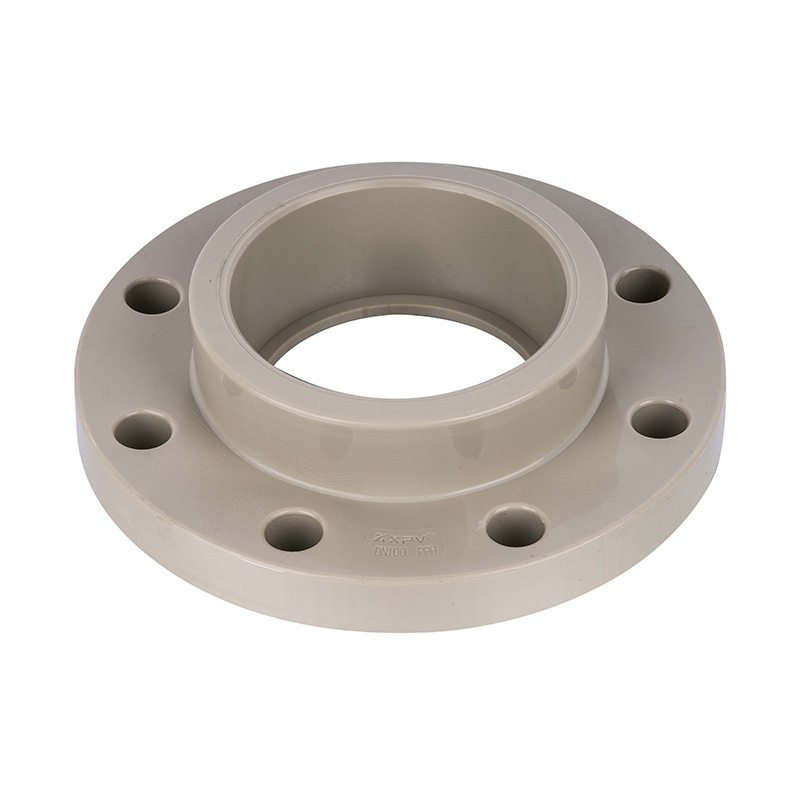

    PPH Integrated Flange DN15-250、DN350-400 15A-250A、350A-400A JIS Standard

    PPH Integrated Flange DN15-250、DN350-400 15A-250A、350A-400A JIS Standard

    Tutus High Quality Beige PPH Socket Flange, 1.0-1.6MPa Impetus operandi DN15-DN400, Universalis Plastic Pipe apta Sewage et Industry Chemical, JIS Standard
    Origin: China
    Nomen notam: KXPV
    Materia: PPH
    Processus: Forged
    Connection: Socket
    Figura: Aequalis
    Caput Code: Quadratus
    Color: Beige
    Magnitudo: DN15-DN400
    Applicationem: Industry
    Packaging: Carton
    Operationis Pressurae: 1.0-1.6MPa (10-25bar)

    Contact Us
    PREV：PPH Blind Flange DN15-150 15A-150A JIS Standard
    DEINDE：PPH Unio Opportunus DN15-100 GB Standard
    App Temperature Bound List
    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Product Features structuralis

    1. De materia habet altitudinem crystallinum .
    Polymerizata ex unico polypropylene monomeris, catena hypothetica monomer ethylenes non continet; the hypothetical chain has high regularity and long service life;
    2. Repugnantia corrosio bonum .
    Obsistere potest corrosioni acidarum et alcali altae-concentratio cum valore pH ab 1 ad 14 vndique intra certum spatium;
    3. Calor repugnans et industria salutaris
    Temperatura applicabilis range est ab -20°C ad 110°C; scelerisque conductivity parvum est et bonum scelerisque velit;
    4. certa nexu
    Vis articulationis liquefactae calidae producti altior quam corporis organi, et iuncturam ob motum vel onus soli non disiungitur;
    5. Bene?
    Productum hoc leve est in pondere, processus simplex glutino, constructione opportuna, humilis altiore impendio constans, et processui complexus tibiarum occurrere potest; PPH systemata pipeline late adhibentur in electroplating, engraving, chemica industria, pharmaceutica, purgamentorum curatio, environmental machinatione aliisque industriis.

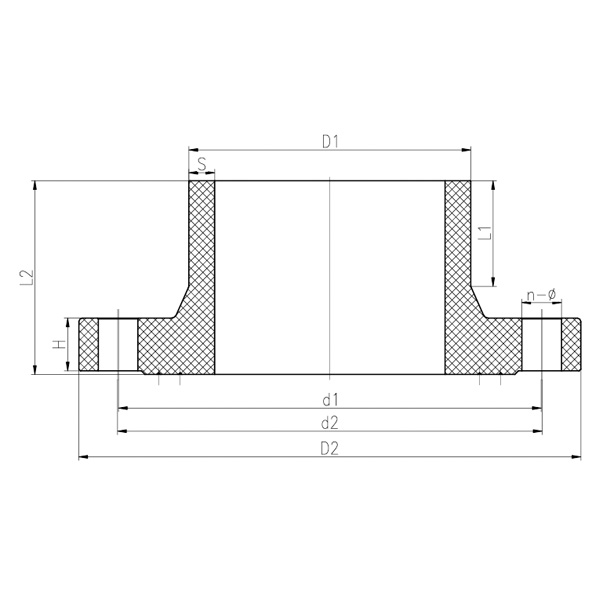

    PPH Integrated Flange

    DN D1 D2 d1 d2 S L1 L2 H n-Ø Attende-adscendens foraminis
    15 20 95 60 70 2.5 50 72 12 4-Ø15X20 PN10/16/US/Iaponia
    20 25 105 70 75 2.7 50 74 14 4-Ø15X17.5 PN10/16/US/Iaponia
    25 32 115 79 85 3 50 78 16 4-Ø15X18 PN10/16/US/Iaponia
    32 40 140 89 100 3.7 50 78 16 4-Ø19X24.5 PN10/16/US/Iaponia
    40 50 150 98 110 4.6 50 80 18 4-Ø19X25 PN10/16/US/Iaponia
    50 63 165 120 125 5.8 50 83 18 4-Ø19x21.5 PN10/16/US/Iaponia
    65 75 185 140 145 6.9 55 88 18 4-Ø19x21.5 PN10/16/US/Iaponia
    80 90 200 150 160 8.2 55 90 20 8-Ø19X24 PN10/16/US/Iaponia
    100 110 229 175 191 10 55 90 20 8-Ø19X27 PN10/16/US/Iaponia
    125 140 254 210 216 12.7 60 110 25 8-Ø18X21 PN10/16/US/Iaponia
    150 160 285 240 241 14.6 60 115 30 8-Ø22X23 PN10/16/US/Iaponia
    250 280 406 350 362 25.4 60 127 35 12-Ø22X28 PN10/16/US/Iaponia
    400 400 597 510 540 36.3 63 160 50 16-Ø26X41 PN10/16/US/Iaponia
