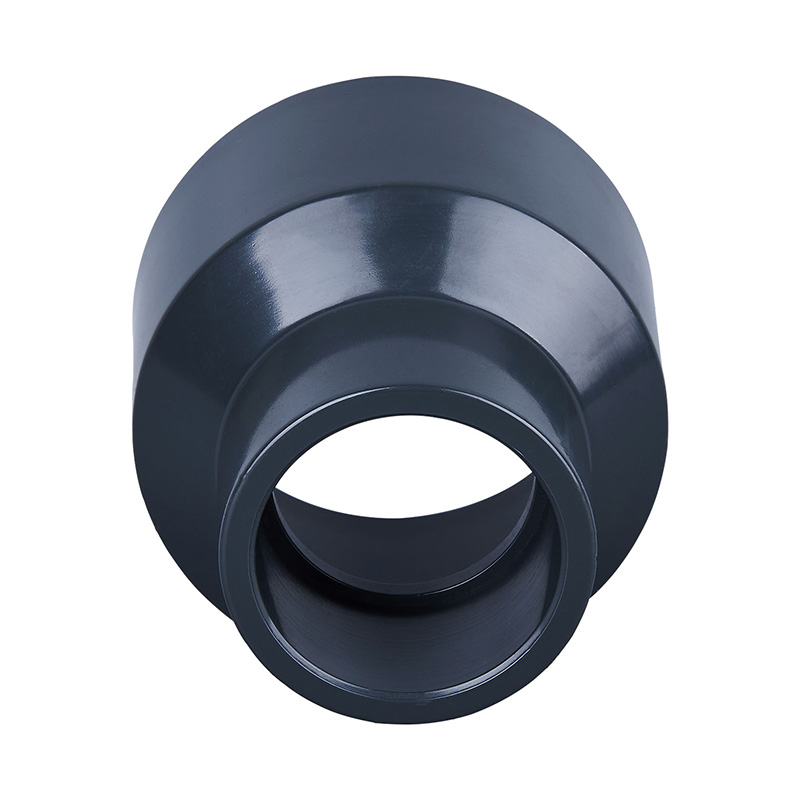

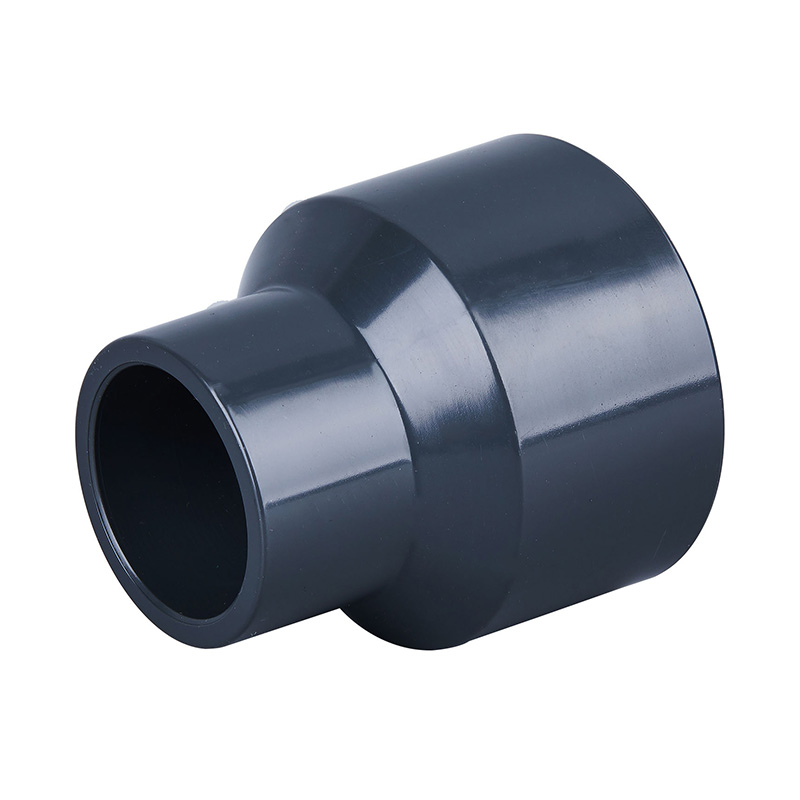

    PVC-U Pipe Reducer DN15*20-600*500 GB Standard

    PVC-U Pipe Reducer DN15*20-600*500 GB Standard

    Contact Us
    PREV：PVC-U Pipe Copulatio DN15-600 GB Standard
    DEINDE：PVC-U End Cap DN15-200 GB Standard
    App Temperature Bound List
    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Product Features structuralis

    1. Leve: PVC-U solum 1/10 pondus ferrei fusi, quod facile est transportare et instituere, sumptibus reducere.
    2. Resistentia chemica superior: PVC-U optimam resistentiam habet acidis et alcali, exceptis acidis validis et alcali prope saturitatem punctum.
    3. Dura: PVC-U optimam tempestatem resistentiam praebet et per bacteria et fungos corrosioni resistit.
    4. Non conductivus: PVC-U non est conductivus nec recipit corrosionem per electrolysin vel electricum currentem, necessitatem processus secundae removens. Est non-flammabilis, et combustio non adminicula, sedulo ignis salutem sollicitudinem.
    5. Humilis resistentia et rate fluit alta: lenis interioris parietis minimizes fluidum fluit detrimentum, et sordes minus probabile est superficiei fistulae lenis adhaerere, sustentationem simplicem et sumptus efficacem faciens.
    6. Securus instruitur et humilis sumptus: Secans et conjunctio sunt simplicia. PVC gluten probavit tutus, certa, facilis ad usus, et sumptus efficens.

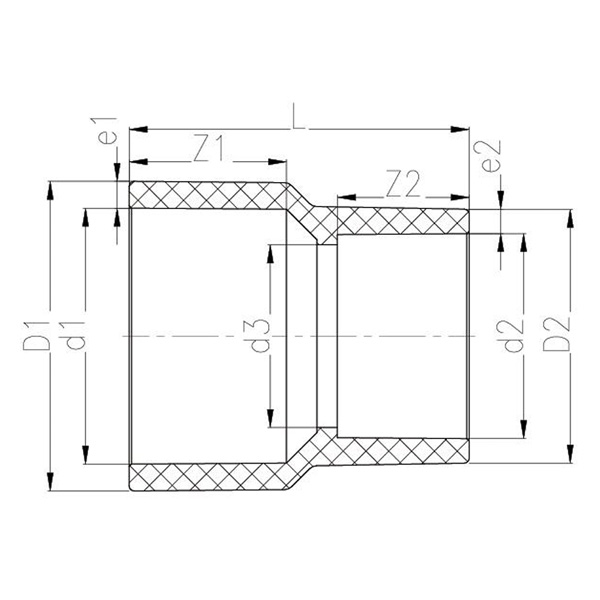

    PVC-U reducer

    DN D1 D2 d1 d2 d3 L Z1 Z2 e1 e2
    300*150 351 180 315 160 154 311.5 163.5 86 18 10
    300*200 351 251 315 225 219 325 163.5 118.5 18 13
    300*250 351 310 315 280 274 336.5 163.5 146 18 15
    350*150 390 184 355 160 154 343 184 86 17.5 12
    350*200 390 249 355 225 214 359 184 119 17.5 12
    350*250 390 308 355 280 270 370 184 146 17.5 14
    350*300 390 346 355 315 304 378 184 164 175 15.5
    400*200 440 249 400 225 214 394 206 119 20 12
    400*250 440 308 400 280 270 405 206 146 20 14
    400*300 440 346 400 315 304 413 206 164 20 15.5
    400* 350 440 390 400 355 340 423 206 184 20 17.5
    450* 300 494 346 450 315 304 454 231 164 22 15.5
    450* 350 494 390 450 355 340 463 231 184 22 17.5
    450* 400 494 440 450 400 386 472 231 206 22 20
    500*300 548 346 500 315 304 494 256 164 24 15.5
    500*350 548 390 500 355 340 504 256 184 24 17.5
    500*400 548 440 500 400 386 513 256 206 24 20
    500*450 548 494 500 450 430 525 256 231 24 22
    600*300 692 346 630 315 304 600 321 164 31 15.5
    600* 350 692 390 630 355 340 609 321 184 31 17.5
    600* 400 692 440 630 400 386 618 321 206 31 20
    600* 450 692 494 630 450 430 630 321 231 31 22
    600*500 692 548 630 500 480 641 321 256 31 24

    DN D1 D2 d1 d2 d3 L Z1 Z2 e1 e2
    20*15 32 27 25 20 16 42 19 16 3.5 3.5
    25*15 40 27 32 20 16 48.5 22 16 4 3.5
    25*20 40 32 32 25 21 49 22 19 4 3.5
    32*20 50 32 40 25 21 57 26 19 5 3.5
    32*25 50 40 40 32 28 57 26 22 5 4
    40*25 61 40 50 32 28 67 31 22 5.5 4
    40* 32 61 50 50 40 36 67 31 26 5.5 5
    50*25 75 40 63 32 28 80.5 38 22 6 4
    50* 32 75 50 63 40 36 80.5 38 26 6 5
    50*40 75 61 63 50 45 81 38 31 6 5.5
    65*25 88 40 75 32 28 93.5 44 22 6.5 4
    65* 32 88 50 75 40 36 93.5 44 26 6.5 5
    65*40 88 61 75 50 45 94 44 31 6.5 5.5
    65*50 88 75 75 63 58 95 44 38 6.5 6
    80*25 105 40 90 32 28 108 51 22 7.5 4
    80* 32 105 50 90 40 36 108 51 26 7.5 5
    80*40 105 61 90 50 45 108.5 51 31 7.5 5.5
    80*50 105 75 90 63 58 109.5 51 38 7.5 6
    80*65 105 88 90 75 69 110.5 51 44 7.5 6.5
    100*40 127 61 110 50 45 130 61 31 8.5 5.5
    100*50 127 75 110 63 58 130 61 38 8.5 6
    100*65 127 88 110 75 69 130 61 44 8.5 6.5
    100*80 127 105 110 90 84 130 61 51 8.5 7.5
    125*50 161 75 140 63 58 143 76 38 10.5 6
    125*65 161 88 140 75 69 146 76 44 10.5 6.5
    125*80 161 105 140 90 82 149 76 51 10.5 7.5
    125*100 161 127 140 110 102 154 76 61 10.5 8.5
    150*65 184 88 160 75 69 162 86 44 12 6.5
    150*80 184 105 160 90 82 165 86 51 12 7.5
    150*100 184 127 160 110 102 170 86 61 12 8.5
    150* 125 184 161 160 140 130 176 86 76 12 10.5
    200*80 260 105 225 90 82 217 119 51 17.5 7.5
    200*100 260 127 225 110 102 221 119 61 17.5 8.5
    200*125 260 161 225 140 130 228 119 76 17.5 10.5
    200*150 260 184 225 160 150 233 119 86 17.5 12
    250*200(φ250*225) 288 260 250 225 218 265 131 119 19 17.5
    250*100(φ280*110) 310 127 280 110 105 272.5 146 61 15 8.5
    250* 125(φ280*14) 310 160 280 140 135 278 146 76 15 10
    250* 150(φ280*160) 310 180 280 160 155 283 146 86 15 12
    250*200(φ280*225) 310 251 280 225 220 297 146 118.5 15 13
    300*100 351 127 315 110 105 300.5 163.5 61 18 8.5
    300*125 351 160 315 140 135 307 163.5 76 18 10
