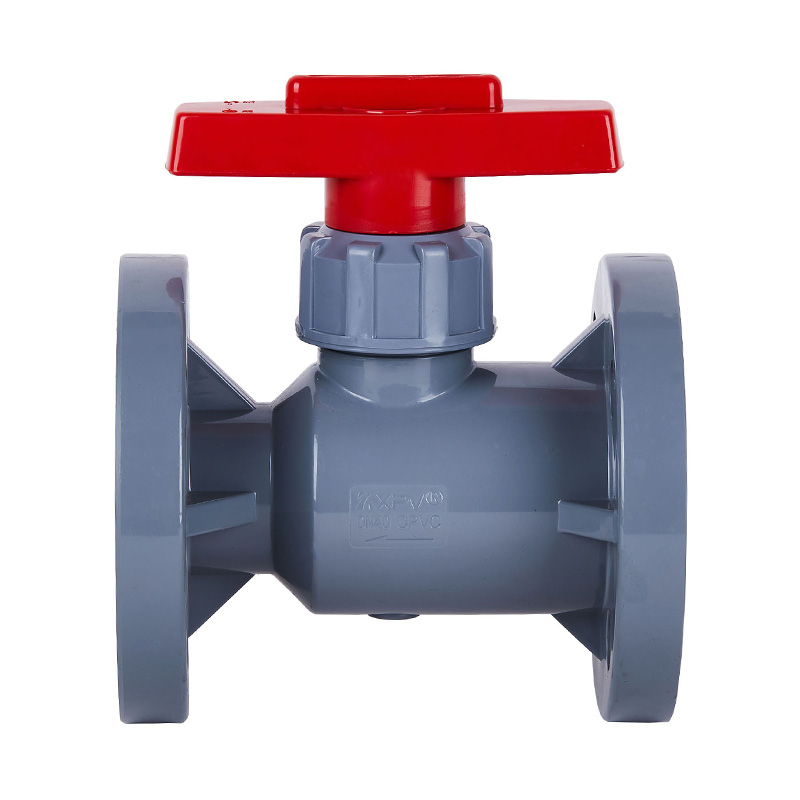

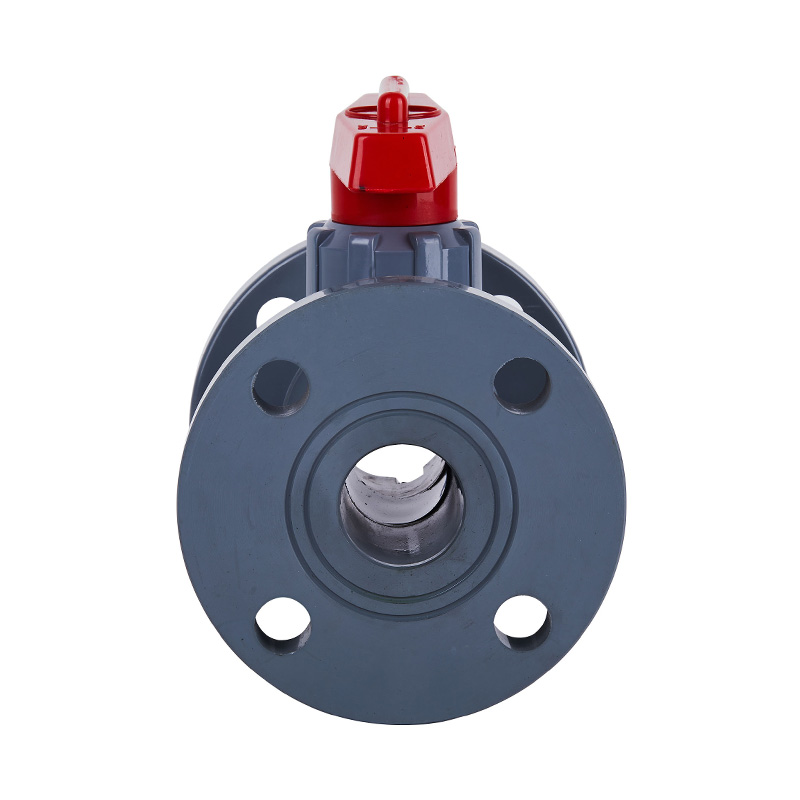

    PVC-C Q41F-10V Flanged Ball Valve DN20-100 20A-100A JIS Standard

    PVC-C Q41F-10V Flanged Ball Valve DN20-100 20A-100A JIS Standard

    Caloris Ressistentes DN20-100 Manual Plastic PVC-C PVC Industrial Valvae Ball Valvae Pipeline Aquae Material, ANSI Standard, JIS Standard.
    Type: Ball Valve, 2-way
    Exemplar: Q41F-10V
    Applicationem: General
    Medium Temperature: High, Low
    Potentia Source: Manual
    Medium: Acid
    Portus Size: DN20-100
    Structura: fixa Ball Valve
    Latin: ANSI
    Corpus Materialium: PVC-C
    Materia signare: PTFE, VITON
    Connection: Flanged finis
    Warranty: 1 Year
    Minimum Order Quantity: 1 Piece
    Delivery Time: 7 days
    Copia capacitatis: 10,000 Pieces/diei

    Pressura Classis: 1.0Mpa（10bar）

    Contact Us
    PREV：PVC-U Q41F-10U Flanged Ball Valve DN20-100 20A-100A JIS Standard
    DEINDE：PPH Q41F-10S Flanged Unionis verae Ball Valvae DN15-100 1/2"-4" ANSI Standard
    Prod* uct Features structuralis

    1. Valvulae globuli series mach**inalis plasticae fiunt ex materiae thermoplasticis corrosio-resistentibus, ut FRPP, PVDF, PVC-C, PVC-U, PPH, forma infusione uno tempore formatae, validam repugnantiam praebentes corrosioni.
    2. Reliable signationem cum torques operating humilis.
    3. Humilis resistentia fluida et apertura velox et claudens.
    4.Simple compages cum speciosa specie.

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

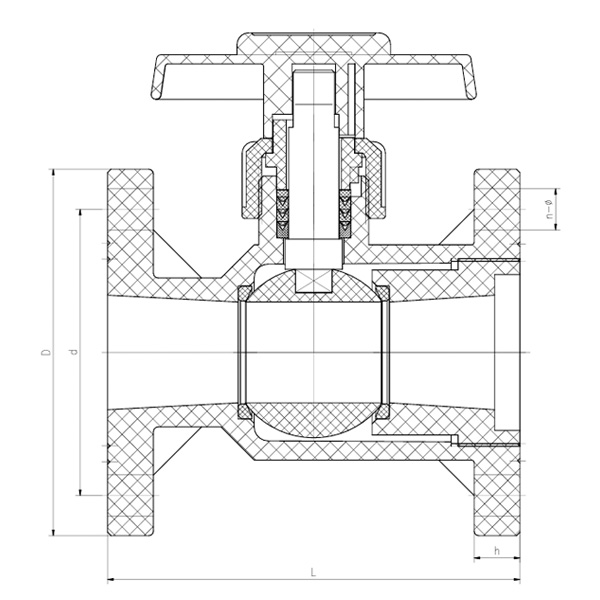

    Valvae Conventus Detail Tractus

    Pars Materia Tabula

    Nec. Nomen Materia
    1 Palpate Admisce materia
    2 retentis Nucis FRPP、PVDF、PVC-U、PVC-C、PPH
    3 Locating anulum FRPP、PVDF、PVC-U、PVC-C、PPH
    4 Stem FRPP、PVDF、PVC-U、PVC-C、PPH
    5 Sigillum caulis PTFE
    6 Signatum pila PTFE
    7 sigillum sede FRPP、PVDF、PVC-U、PVC-C、PPH
    8 Ball FRPP、PVDF、PVC-U、PVC-C、PPH
    9 Corpus FRPP、PVDF、PVC-U、PVC-C、PPH
    Dimension List

    DN (mm) D d L h n Ø
    20(3/4") 105 75 120 17 4 15
    25(1") 120 90 130 16 4 19
    32(1 1/4") 135 100 145 18 4 19
    40(1 1/2") 145 105 168 20 4 19
    50(2") 160 120 180 20 4 19
    65(2 1/2") 180 140 225 22 4 19
    80(3") 195 150 260 25 4 19
    100(4"） 215 175 280 25 8 19
