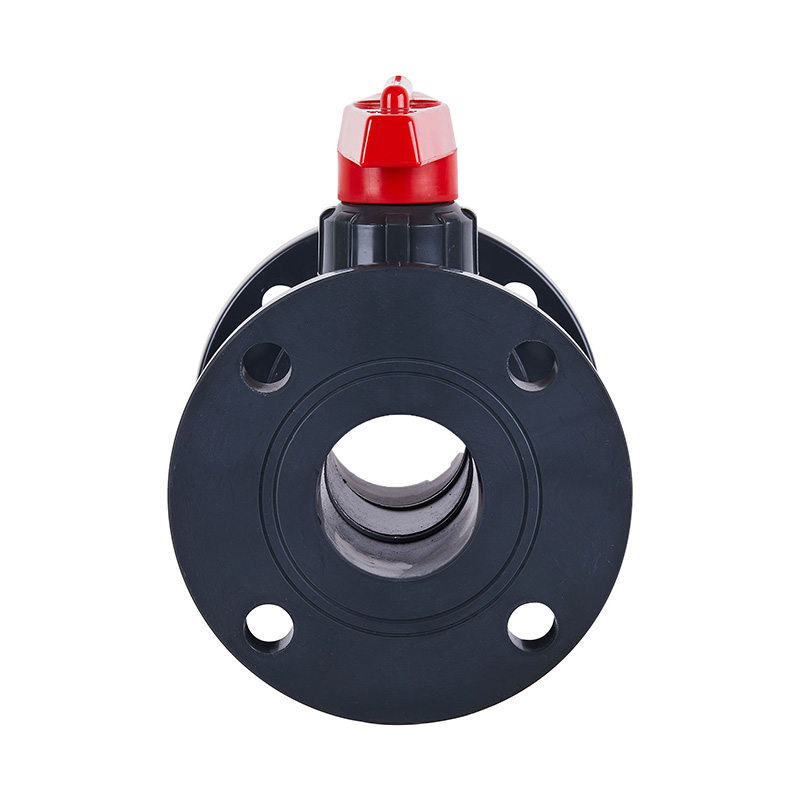

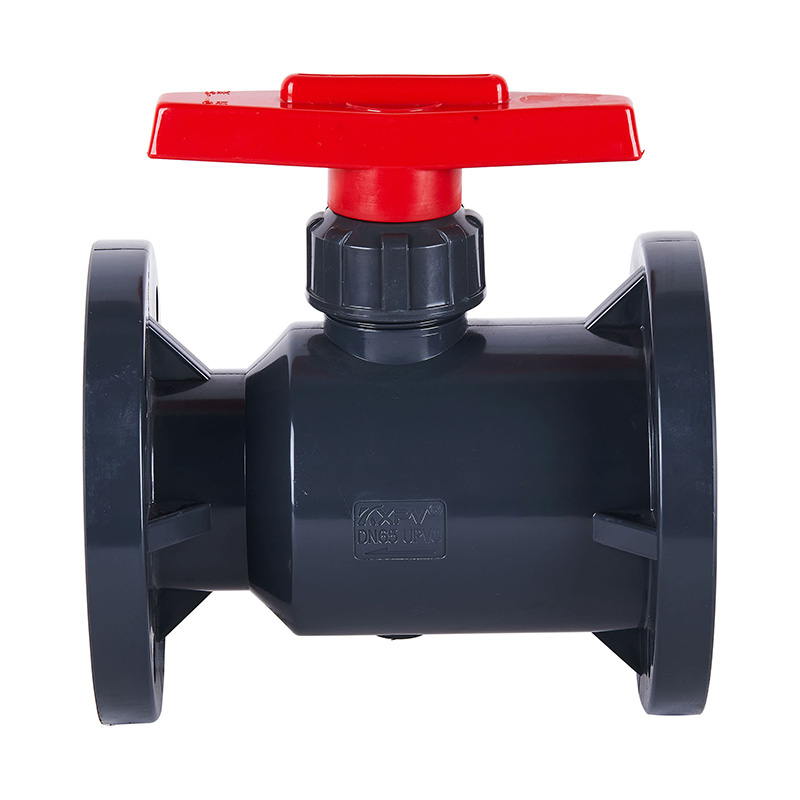

    PVC-U Q41F-10U Flanged Ball Valve DN20-100 20A-100A JIS Standard

    PVC-U Q41F-10U Flanged Ball Valve DN20-100 20A-100A JIS Standard

    PVC-U Flanged Ball Valve, PVC ANSI Standard Industrial Sanitary Plastic Valve, JIS Standard
    Exemplar: Q41F-10U
    Materia: Plastic
    Connection Type: Flanged
    Potentia Modus: Manual
    Pressura exprimens: 10kg
    Locus: Recta per
    Structura: fixa Ball Valve
    Munus: Industrial usus
    Temperatus: High Temperature
    Applicationem: Industrial Usus, Aquae Industrialis Usus
    Size: DN20-100
    Latin: ANSI
    HS Code: 8481804090

    Pressura Classis: 1.0Mpa（10bar）

    Contact Us
    PREV：PVDF Q41F-10F Flanged Ball Valve DN20-100 20A-100A JIS Standard
    DEINDE：PVC-C Q41F-10V Flanged Ball Valve DN20-100 20A-100A JIS Standard
    Prod* uct Features structuralis

    1. Valvulae globuli series mach**inalis plasticae fiunt ex materiae thermoplasticis corrosio-resistentibus, ut FRPP, PVDF, PVC-C, PVC-U, PPH, forma infusione uno tempore formatae, validam repugnantiam praebentes corrosioni.
    2. Reliable signationem cum torques operating humilis.
    3. Humilis resistentia fluida et apertura velox et claudens.
    4.Simple compages cum speciosa specie.

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Valvae Conventus Detail Tractus

    Pars Materia Tabula

    Nec. Nomen Materia
    1 Palpate Admisce materia
    2 retentis Nucis FRPP、PVDF、PVC-U、PVC-C、PPH
    3 Locating anulum FRPP、PVDF、PVC-U、PVC-C、PPH
    4 Stem FRPP、PVDF、PVC-U、PVC-C、PPH
    5 Sigillum caulis PTFE
    6 Signatum pila PTFE
    7 sigillum sede FRPP、PVDF、PVC-U、PVC-C、PPH
    8 Ball FRPP、PVDF、PVC-U、PVC-C、PPH
    9 Corpus FRPP、PVDF、PVC-U、PVC-C、PPH
    Dimension List

    DN (mm) D d L h n Ø
    20(3/4") 105 75 120 17 4 15
    25(1") 120 90 130 16 4 19
    32(1 1/4") 135 100 145 18 4 19
    40(1 1/2") 145 105 168 20 4 19
    50(2") 160 120 180 20 4 19
    65(2 1/2") 180 140 225 22 4 19
    80(3") 195 150 260 25 4 19
    100(4"） 215 175 280 25 8 19
