PVC-C H42F-10V Bottom Valve DN50-200 2'-8' ANSI Standard

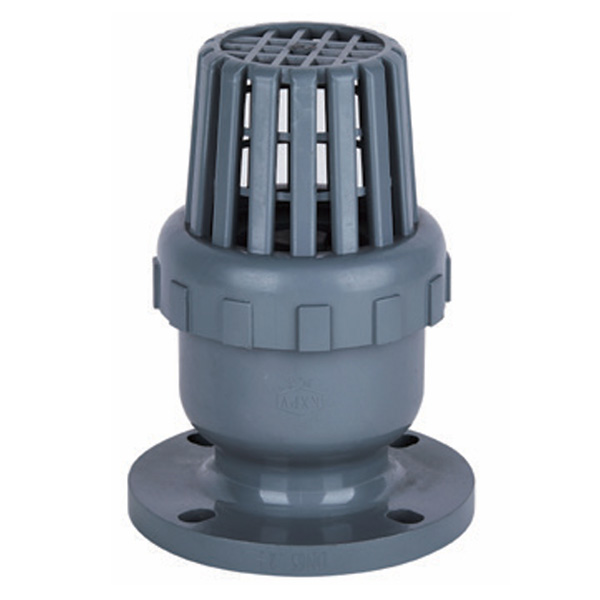

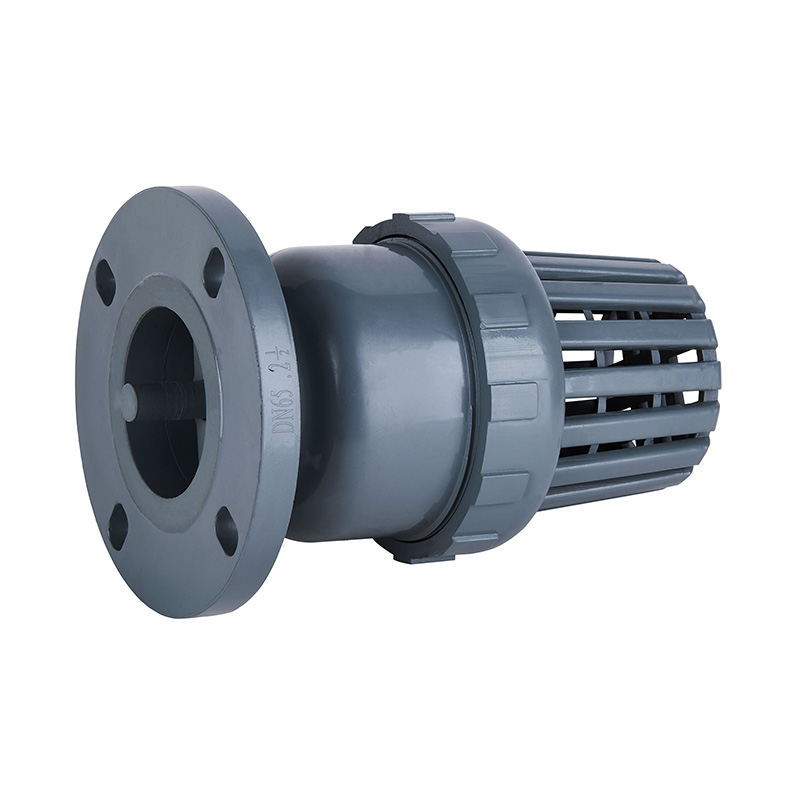

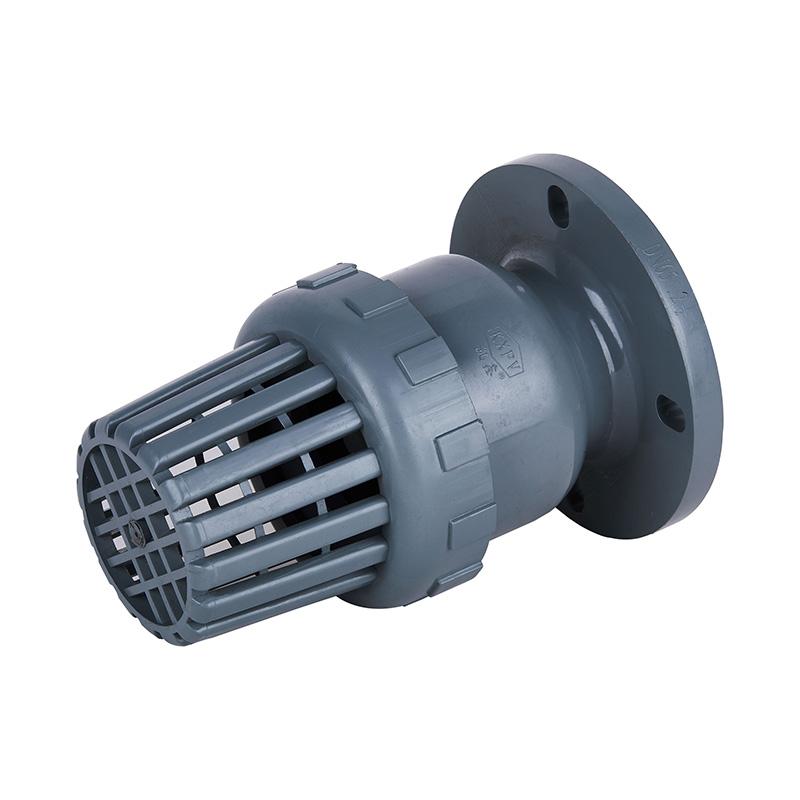

PVC-C H42F-10V Bottom Valve DN50-200 2"-8" ANSI Standard

Gray FRPP Bottom Valve Custom 4 Inches DN50-200 Low-Cest Industrial Plastic Hydraulic Valve for Water Industry ANSI Standard
Type: HYDRAULICUS
Origin: China
Brand: KXPV
Exemplar: H42F-10V
Applicationem: General
Medium Temperature: Medium, Ambient
Potentia Supple: Manuale
Medium: Acid
Portus Size: DN50-200
Structura: Flanged
Product Name: Bottom Valve
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece
Color: Grey
Size: DN50-200

Pressura Classis: 1.0Mpa（10bar）

Contact Us
PREV：PVC-U H42F-10U Bottom Valve DN50-200 2"-8" ANSI Standard
DEINDE：FRPP H42F-10S Bottom Valve DN15-300 GB Standard
App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Product Features structuralis

1. Productio specificationum vagatur ab DN15 ad DN300.
2.DN200 ad DN300 preces in emptorem produci possunt.
3. Excellent cione perficiendi.
4. Low pressura damnum.
5. Bonus effectus hydrau.
6. Simplex structuram et facilem institutionem.

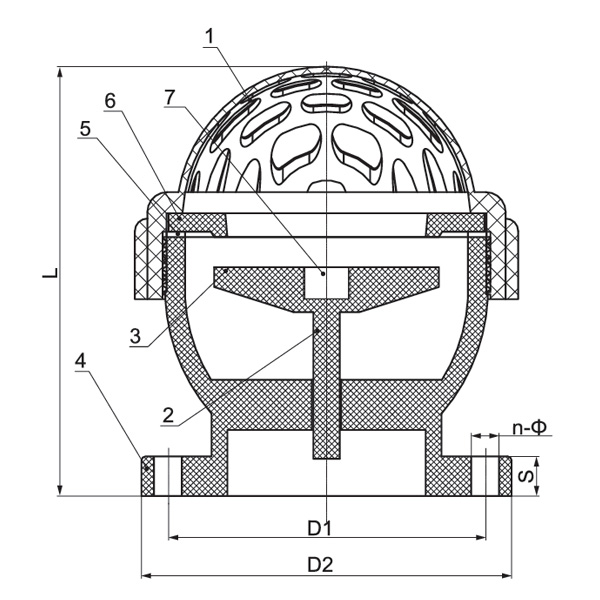

Pars Materia Tabula

Nec. Nomen Materia Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Mesher PVC-C PVC-U PVDF PPH FRPP 1
2 Pistoris PVC-C PVC-U PVDF PPH FRPP 1
3 signantes rubber FPM EPDM FPM EPDM 1
4 Corpus PVC-C PVC-U PVDF PPH FRPP 1
5 signantes rubber FPM EPDM FPM EPDM 1
6 Partitio PVC-C PVC-U PVDF PPH FRPP 1
7 retentis Nucis PVC-C PVC-U PVDF PPH FRPP 1
Dimension List

Specification d (mm) D(mm) L(mm) b(mm) n-Φ(mm)
2"(50) 215 121 160 16 4-Φ17x20
2½» (65) 235 140 170 16 4-Φ15x19
4"(100) 315 191 220 23 8-Φ18x20

Specification d (mm) D(mm) L(mm) b(mm) n-Φ(mm)
5» (125) 330 216 250 28 8-Φ18
6"(150) 330 241 282 30 8-Φ21
8"(200) 380 299 335 32 8-Φ23
