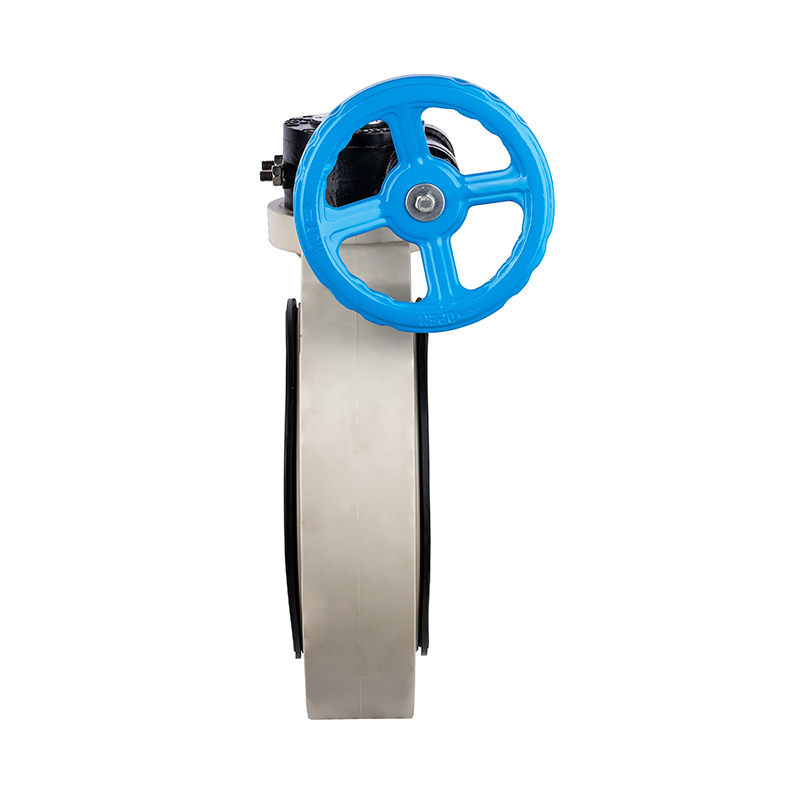

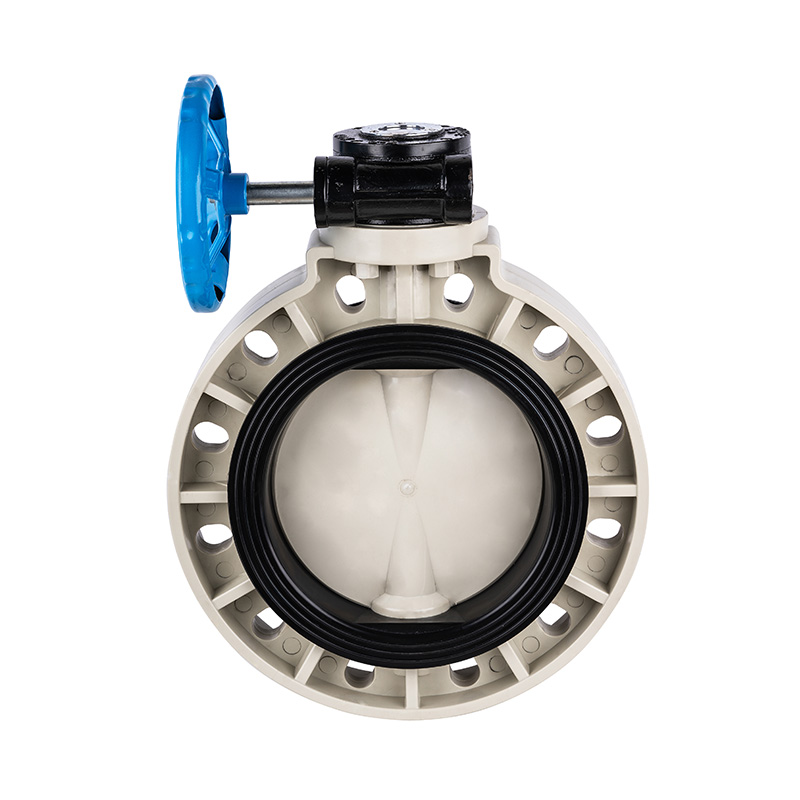

    PPH D371X-10S Worm-Gear Papilio Valvae DN32-1000 GB Standard

    PPH D371X-10S Worm-Gear Papilio Valvae DN32-1000 GB Standard

    PPH vermis calces papilio valvae manualis centrum sigillum molle sigillum DN32-1000 industrialis et domus plastica vectis manubrium valvae
    Modus incessus: Manuale
    Connection Form: Wafer
    Structura: Centrum Obsignatio
    Sigillum Typus: Sigillum coactus
    Valvae caulis: tertio
    Pressura Classis: 1.0Mpa（10bar）
    Laborans Temperature: -20~ 110°C
    Materiam Sigilli Superficies: Mollis obsignatum
    Applicatio: Ritus Industrialis, Aquae Industrialis Ritus
    Valvae Caule: Steel, Steel
    Trademark: KXPV
    Formularium: DN32-1000
    Origin: Ningbo, Zhejiang

    Contact Us
    PREV：FRPP D371X-10S Worm-Gear Papilio Valvae DN32-1000 GB Standard
    DEINDE：PVDF D371X-10F Worm-Gear Butterfly Valve DN32-1000 GB Standard
    Product Features structuralis
    1. Plectrum parvum et leve est, facile disgregat et reparatur, et quovis loco institui potest.
    2. Structura simplex & compacta est, & Aureus operans parvus est, & velociter 90° gyrationis aperitur.
    3. Fluxus notae rectae tendunt ac commensurationem perficiendi bonum est.

    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Pars Materia Tabula

    Nec.

    Nomen

    Materia

    1

    		Rota aluminium offensionis

    2

    		Vermis calces ursi Steel

    3

    		Data Ipate aluminium

    4

    		Exagonum fulmen Steel, StainlessSteel

    5

    		Vermis calces opere aluminium offensionis

    6

    		Vermis calces aluminium offensionis

    7

    		Terminus fulmine Steel, StainlessSteel

    8

    		Stem Steel, StainlessSteel

    9

    		Duplex praevenirent Steel, StainlessSteel

    10

    		Sexangulus nut Steel, StainlessSteel

    11

    		signantes rubber EPDM,FPM
    12 Valvae Plate FRPP, PVDF, PVC-C, PVC-U, PPH
    13 Corpus FRPP, PVDF, PVC-C, PVC-U, PPH

    Vermis calces Type Gloria Valvae Conventus Detail Tractus

    Pars Material Tabula

    NO.

    partes Nomen

    Materia

    Qty.

    1

    		Rota ferrea

    1

    2

    		Vermis calces ferrea

    1

    3

    		Pin Steel

    1

    4

    		Nucis Cup FRPP

    4

    5

    		Corpus FRPP, PVDF, PVC-C, PVC-U, PPH

    1

    6

    		Valvae Plate FRPP, PVDF, PVC-C, PVC-U, PPH

    1

    7

    		signantes rubber EPDM，FPM

    1

    8

    		Stem Steel, StainlessSteel

    1

    Dimension List

    DN(mm) D1 D2 D3 T n-Φ
    GB JIS ANS''I''' GB JIS ANS''I'''
    32 (11/4") 140 100 100 88.9 33 35 4-Φ17 4-Φ17 4-Φ17
    40 (11/2") 150 110 105 98.4 41.5 39 4-Φ19X25 4-Φ19X25 4-Φ19X25
    50(2") 160 125 120 120.7 50 40 4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
    65(21/2") 180 145 140 139.7 64 42 4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
    80(4") 200 160 150 152.4 77 42 8-Φ19X25 8-Φ19X25 4-Φ19X20
    100(4") 225 180 175 190.5 96 52 8-Φ19X32 8-Φ19X32 8-Φ19X32
    125(5") 255 210 210 215.9 120 61 8-Φ23X33 8-Φ23X33 8-Φ23X33
    150(6") 290 240 240 241.3 145 71 8-Φ23X34 8-Φ23X34 8-923X34
    200(8") 340 295 290 298.5 196.5 81 8-Φ23X33.5 12-Φ23X27 8-Φ23X33.5
    250(10") 420 350 355 362 245.5 110 12-Φ23.5X32 12-Φ23.5X32 12-Φ23.5X32
    300(12") 500 400 431.8 291.5 115 12-Φ28X48 12-Φ28X48
    350 (14") 550 460 476.3 340 127 16-Φ26 12-Φ33
    400(16") 619 515 510 539.8 399 140 16-Φ36X52 16-Φ36X52 16-Φ36X52
    450 (18") 655 565 565 577.9 446 150 20-Φ25 20-Φ27 16-Φ33
    500(20") 705 620 620 635 494 150 20-Φ26X33 20-Φ27X33 20-26X33
    600(24") 816 725 749.3 570 170 20-Φ28X38 20-Φ28X38
    700(28") 910 840 840 670 185 24-Φ33X44 24-Φ33X44
    800(32") 1055 960 950 977.9 755 240 24-Φ44.5X65 28-Φ36X52 24-Φ44.5X65
    1000(40") 1230 1160 1160 935 236 28-Φ36X52 28-Φ39


    DN(mm) D1 D 2 D3 T n-Φ
    GB JIS ANS''I''' GB JIS ANS I
    40 (11/2") 148 110 105 98.4 41.5 39 4-Φ19X25 4-Φ19X25 4-Φ19X25
    50(2") 162 125 120 120.7 50 40 4-Φ19X26.5 4-Φ19X25.6 4-Φ19X25.6
    65(21/2") 180 145 140 139.7 64 42 4-Φ19X26.5 4-Φ19X25.6 4-Φ19X25.6
    80(3") 198 160 150 152.4 77 42 8-Φ19X25 8-Φ19X24 4-Φ19X20
    100(4") 225 180 175 190.5 96 52 8-Φ19X32 8-Φ19X32 8-Φ19X32
    125(5") 255 210 210 215.9 120 61 8-Φ23X33 8-Φ23X33 8-Φ23X33
    150(6") 285 240 240 241.3 145 71 8-Φ23X34 8-Φ23X34 8-Φ22X34
    200(8") 340 295 290 298.5 196.5 81 8-Φ23X33.5 12-Φ23X27 8-Φ22X33.5
