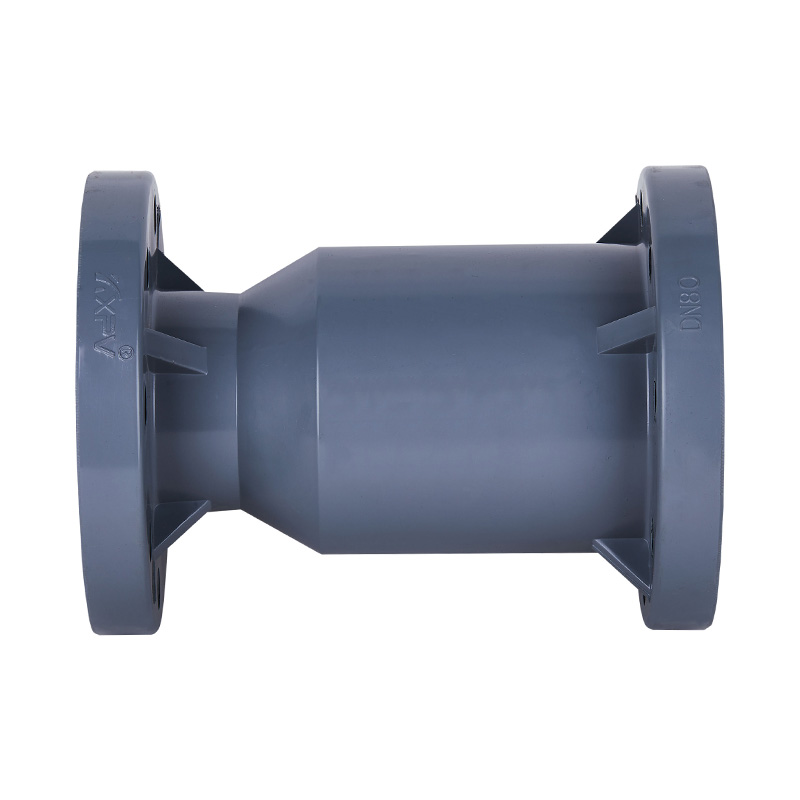

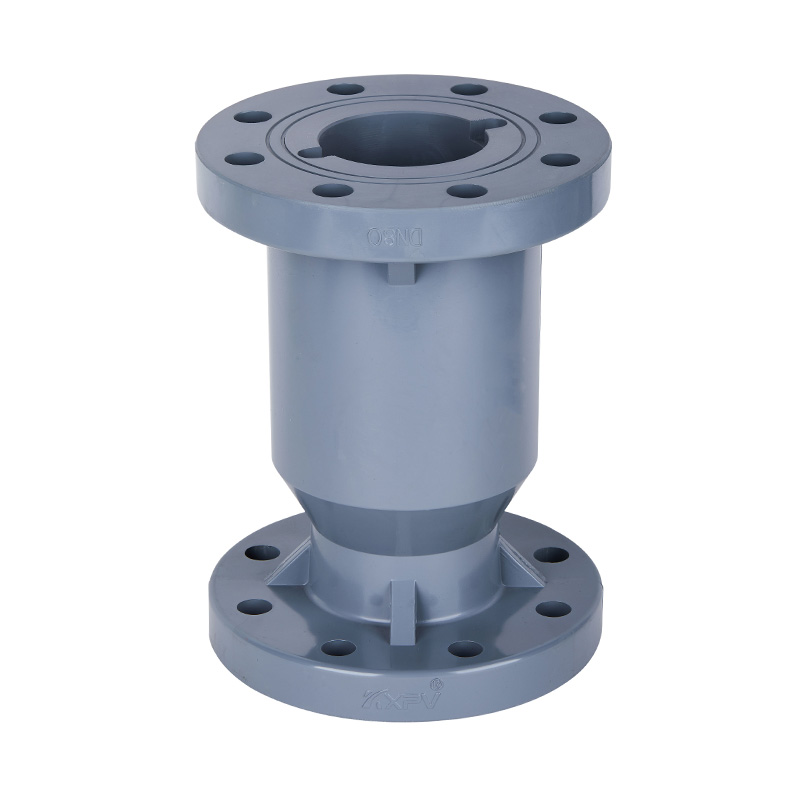

PVC-C H41F-10V Perscriptio Verticalis Valvae DN15-300 GB Standard

PVC-C H41F-10V Perscriptio Verticalis Valvae DN15-300 GB Standard

Factory Price PVC-C Vertical Ball Reprehendo Valvae Flang Finit DN15-DN30 plastica manus industriae rota reprehendo pila valvulae pro purgamentorum
Typus: Plastic Valvulae
Origin: Ningbo, Zhejiang
Nomen notam: KXPV
Exemplar Number: H41F-10V
Applicationem: General
Temperature Media: Medium Temperature, Normal Temperature
Potentia: Manuale
Media: Acid
Portus Size：DN15-DN300
Structura: Moderare
Product nomen: Vertical reprehendo valvae
Connection: Fines Flange
Medium: Acid
Pressura Classis: 1.0Mpa（10bar）
Operatio: Manus Rota
Corpus materiale: Plastic
Delivery Time: 7 Days
MOQ: 1 Piece

Contact Us
PREV：PVC-U H41F-10U Perscriptio Verticalis Valvae DN15-300 GB Standard
DEINDE：FRPP H44F-10S adductius Type Valvae DN15-300 GB Standard
Prod* uct Features structuralis

1. Corrosio Repugnantiae
Tota valvula facta est ex nova materia plastica. variis instrumentis acidicis et alcalinis resistentiam validam praebet.

2. Maximum Domine Rate
Rationalis consilium valvae resistentiam per fistulam reducit, media ad lenis permittens, pressurae detrimentum extenuando et rate fluit altam procurans.

3. Non-Redi euismod
Simplex structura eam minus obnoxiam aliis factoribus facit, unde in praestantibus non redditis effectus.

4. Parvus et PERFUSORIUS
Valvae compacta altiore figura idoneum reddit ad institutionem in spatiis angustiis.

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

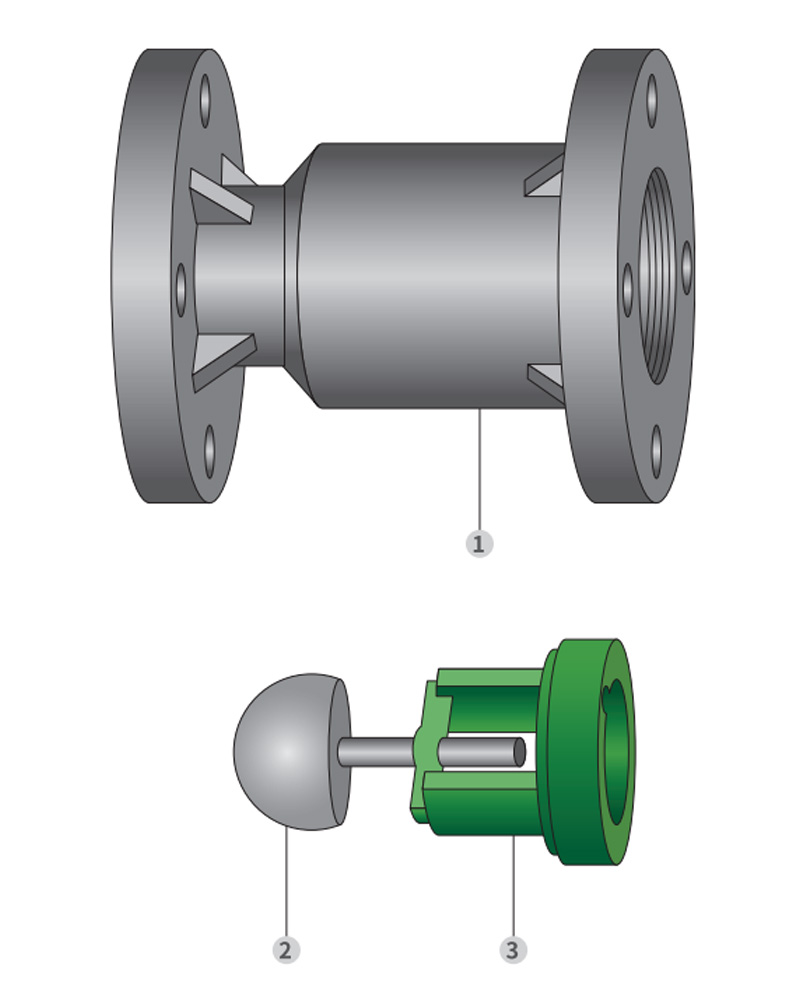

Pars Materia Tabula
Nec. Nomen Materia
1 Corpus FRPP, PVDF, PVC-C, PVC-U, PPH
2 Core pila FRPP, PVDF, PVC-C, PVC-U, PPH
3 sigillum stent FRPP, PVDF, PVC-C, PVC-U, PPH

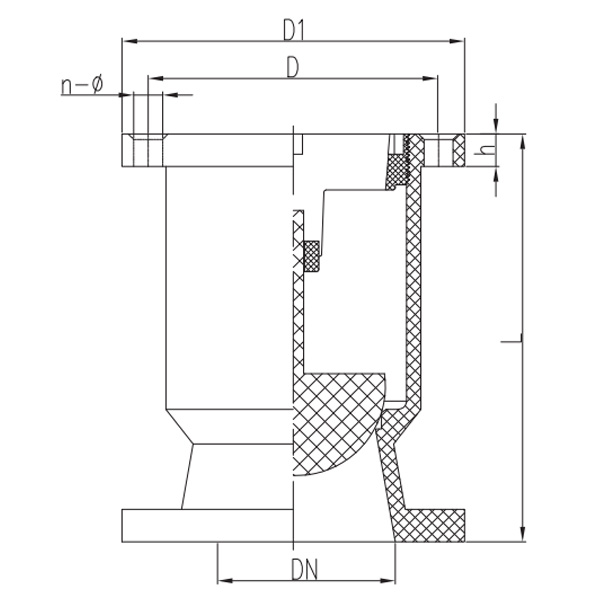

Ball Valvae Conventus Detail Tractus

Dimension List

DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
15(1/2") 105 65 70 120 15 4-Φ14 4-Φ15
20(3/4") 105 75 75 120 16 4-Φ14 4-Φ15
25(1") 115 85 90 130 16 4-Φ14 4-Φ19
32 (11/4") 135 100 100 145 18 4-Φ18 4-Φ19
40 (11/2") 145 110 168 20 4-Φ18
50(2") 160 125 180 20 4-Φ18
65(21/2") 180 145 225 22 4-Φ18
80(3") 195 160 255 25 8-Φ18
100(4") 215 180 190.5 280 25 8-Φ18 8-Φ18
125(5") 245 210 210 215.9 350 30 8-Φ18 8-Φ23 8-Φ22
150(6") 280 240 240 241.3 400 30 8-Φ22 8-Φ23 8-22
200(8") 335 295 290 298.5 400 35 8-P22 12-p23 8-Φ22
250(10") 390 350 355 362 450 38 12-Φ22 12-Φ25 12-Φ26
300(12") 445 400 400 450 38 12-Φ22 16-Φ25
