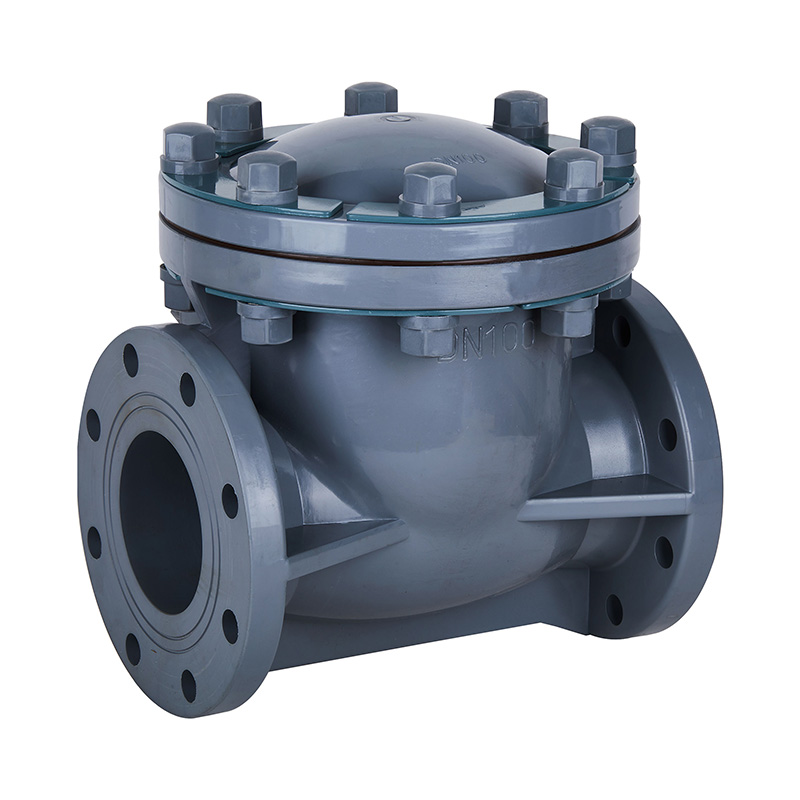

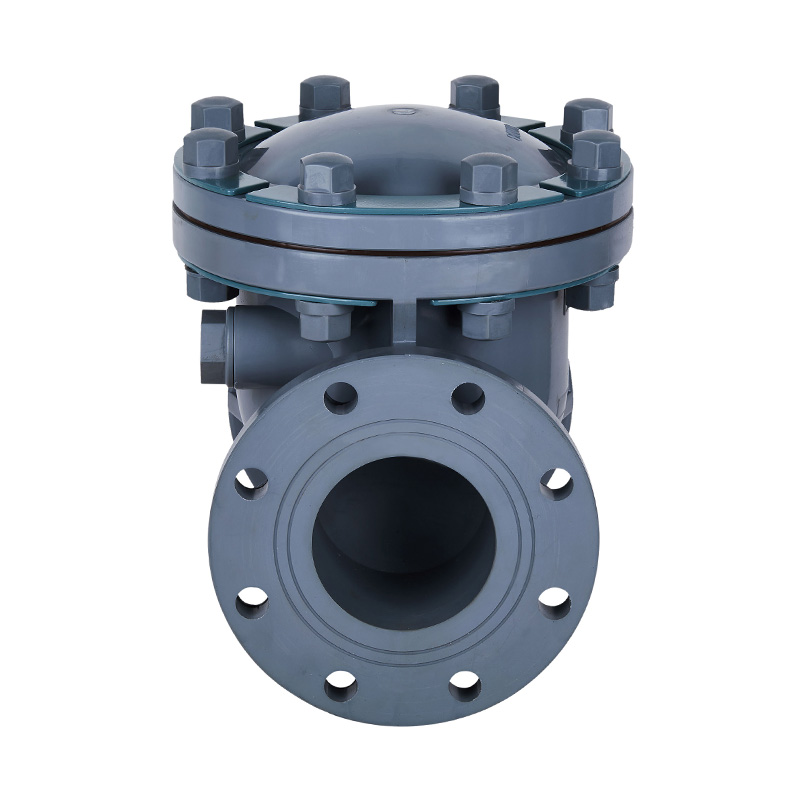

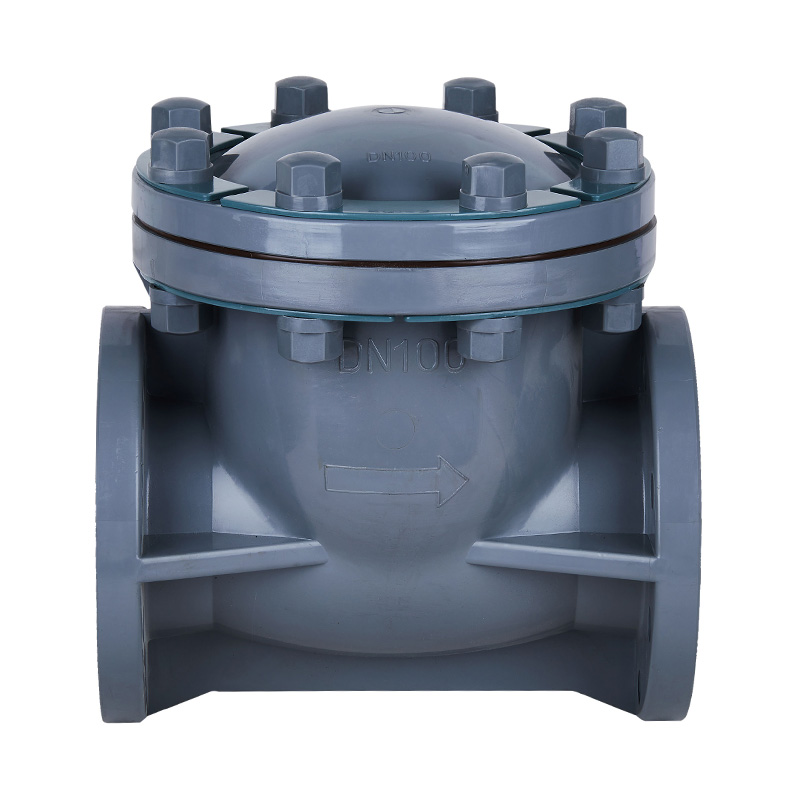

PVC-C H44F-10V Swing Type Check Valve DN15-300 1/2'-12' ANSI Standard

PVC-C H44F-10V Swing Type Check Valve DN15-300 1/2"-12" ANSI Standard

Summus Quality Grey PVC-C Adductius » Valvae DN15-DN300 PN16 VI-Inch Plastic laganum , Valvae pro Chemical et Industrial Usus ANSI Standard
Origin: China
Brand: KXPV
Exemplar: H44F-10V
Applicationem: General
Materia: Plastic
Medium Temperature: Medium, Ambient
Pressura: Medium Pressura
Potentia Supple: Manuale
Medium: Acid
Portus Location: DN15-DN300
Structura: Valvae
Product Name: Wafer
Color: Grey
Packaging: Carton
Delivery Time: 7 Days
Minimum Order Quantity: 1 Piece

Pressura Classis: 1.0Mpa（10bar）

Contact Us
PREV：PVC-U H44F-10U Adductius Typus Valvae DN15-300 1/2"-12" ANSI Standard
DEINDE：FRPP H41F-10S Vita Type Valvae DN40-80 GB Standard
Product Features structuralis

1. Prevents liquorum regressus, soleatus et alia instrumenta tutans.
2. Ut valvae cantileverae perscriptio, minimam resistentiam fluido generat.
3. Ex omnibus materiis plasticis factum, praestantem corrosionem resistentiam praebens acidicis, alkalinis, aliisque humoribus mordax.
4. Valvae corpus a fistula removeri potest, et cappa valvae ad inspectionem et conservationem internam aperiri potest.

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Pars Materia Tabula
Nec. Nomen Materia Qty.
PVC-C PVC-U PVDF PPH FRPP
1 Corpus PVC-C PVC-U PVDF PPH FRPP 1
2 Bonnet PVC-C PVC-U PVDF PPH FRPP 1
3 signantes rubber FPM EPDM FPM EPDM 1
4 ianua PVC-C PVC-U PVDF PPH FRPP 1
5 retinens stupra PVC-C PVC-U PVDF PPH FRPP 1
6 Rocker PVC-C PVC-U PVDF PPH FRPP 1
7 Screw Steel SS Steel Steel 6-16
8 Connectens virga PVC-C PVC-U PVDF PPH FRPP 1
9 Nucis Steel SS Steel Steel 6-32
10 Platen Steel SS Steel Steel 1

Dimension List

Specification d (mm) D(mm) L(mm) b(mm) n-Φ(mm)
1/2" (15) 60 115 160 18 4-Φ16
3/4"(20) 70 115 160 18 4-Φ16
1"(25) 79 115 160 18 4-Φ16
1½»(40) 98 145 170 20 4-Φ16
2"(50) 121 160 200 21 4-Φ19
2½» (65) 140 180 240 25 4-Φ19
3»(80) 152 197 265 26 8-Φ19
4"(100) 191 215 300 26 8-Φ19
5» (125) 216 250 350 30 8-Φ22
6"(150) 241 280 400 30 8-Φ22
8"(200) 299 340 500 30 8-Φ22
10"(250) 362 390 575 38 12-Φ25
