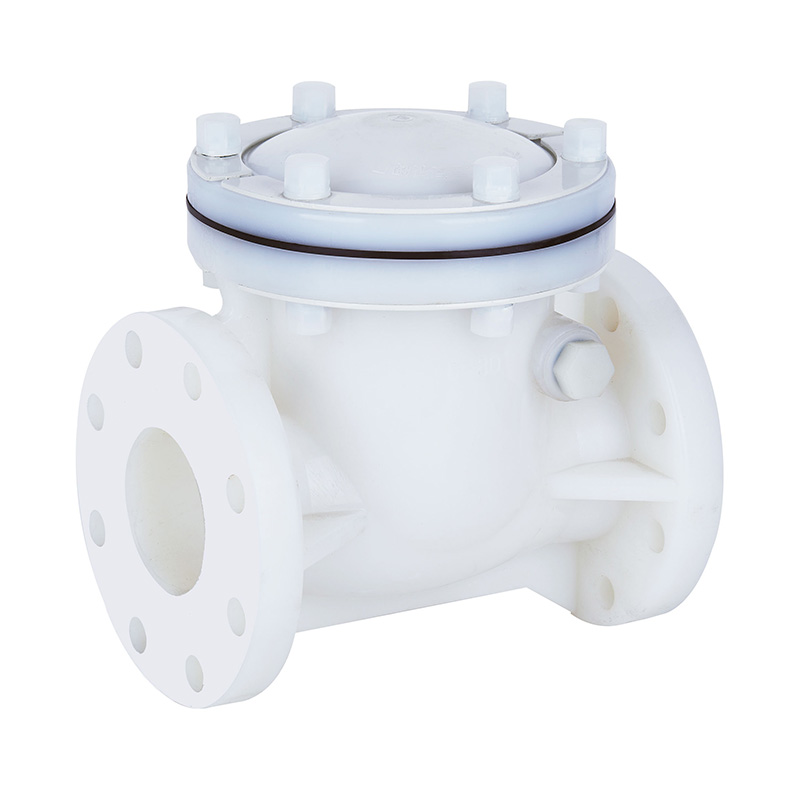

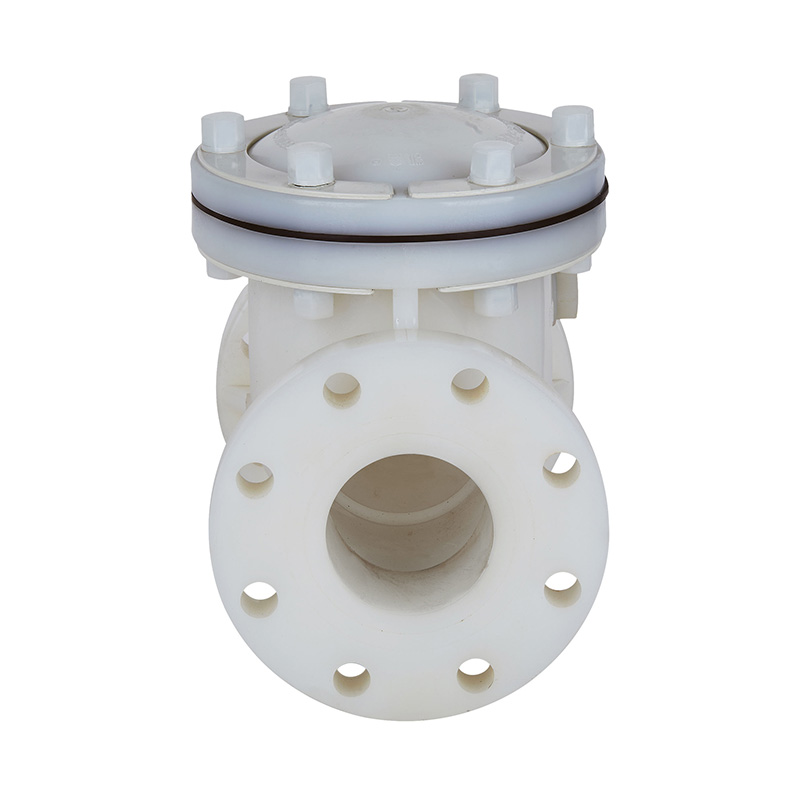

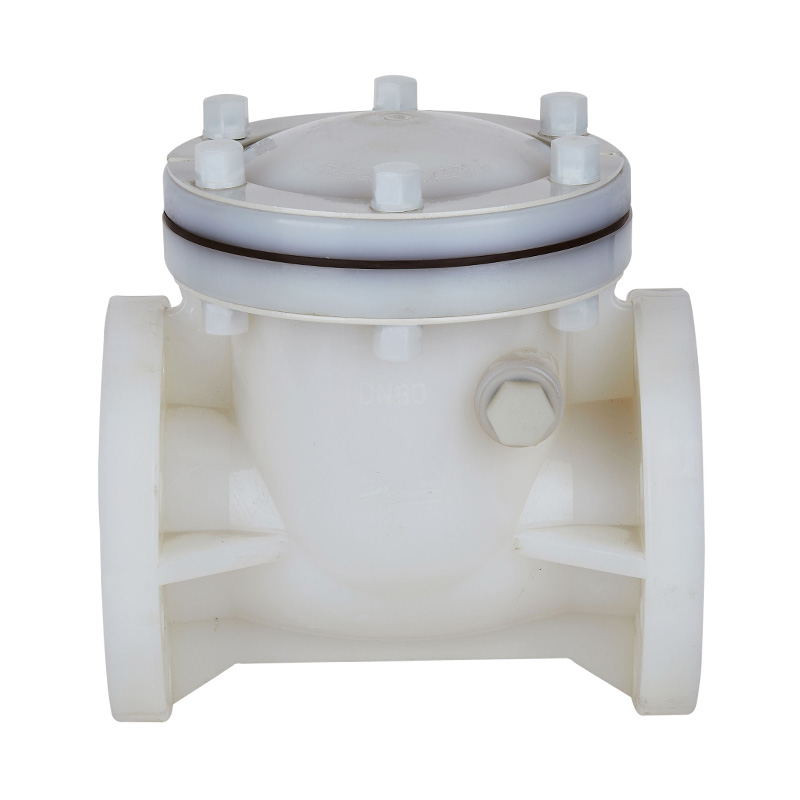

PVDF H44F-10F Swing Type Check Valve DN15-300 GB Standard

PVDF H44F-10F Swing Type Check Valve DN15-300 GB Standard

PVDF Wafer adductius Valvae DN15-DN300 Industrial et Sanitaria Plastica Valvae
Typus: Plastic Valvulae
Origin: China
Nomen notam: KXPV
Exemplar Number: H44F-10F
Applicationem: General
Temperature Media: Medium Temperature, Normal Temperature
Potentia: Manuale
Media: Acid
Portus Magnitudo: DN15-DN300
Structura: Moderare
Product nomen: Wafer
Color: Alba
Sarcina: lobortis Box
Delivery Time: 7 Days
MOQ: 1 Piece

Pressura Classis: 1.0Mpa（10bar）

Contact Us
PREV：PPH H44F-10S Swing Type Check Valvae DN15-300 GB Standard
DEINDE：PVC-U H44F-10U Type Perscriptio Valvae DN15-300 GB Standard
Prod* uct Features structuralis

1. Ad impediendam phaenomenon liquidi contra-currentis ad custodiam sentinam instrumenti.
2.Quia cantileveram valvulam reprimendam est, minor resistentia fluit.
3. Omnibus materiis plasticis utens, praestantem resistentiam praebet humoribus mordentibus sicut acida et alcali.
4. Non solum valvae corpus a fistula removent, sed etiam mitram ad inspectionem et conservationem internam aperiunt.

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Pars Materia Tabula

Nec.

Nomen

Materia

1

Cap nut

FRPP

2

Bonnet

FRPP, PVDF, PVC-C, PVC-U, PPH

3

Rocker

FRPP, PVDF, PVC-C, PVC-U, PPH

4

Capping

FRPP, PVDF, PVC-C, PVC-U, PPH

5

signantes anulum

EPDM,FPM

6

sigillum nucis

FRPP, PVDF, PVC-C, PVC-U, PPH

7

Connectens virga

FRPP, PVDF, PVC-C, PVC-U, PPH

8

Corpus

FRPP, PVDF, PVC-C, PVC-U, PPH

9

Exagonum fulmen

Steel, StainlessSteel

10

O inaures!

EPDM,FPM

11

Exagonum fulmen

FRPP, PVDF, PVC-C, PVC-U, PPH

12

implens plece

Steel, StainlessSteel

13

Sexangulus nut

Steel, StainlessSteel

Type adductius

Dimension List

DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI
15(1/2") 115 65 70 160 18 4-Φ14 4-Φ15
20(3/4") 115 75 75 69.9 160 18 4-Φ14 4-Φ15 4-Φ16
25(1") 115 85 90 79.4 160 18 4-Φ18 4-Φ19 4-Φ16
32 (11/4") 145 100 100 170 20 4-Φ18 4-Φ19
40 (11/2") 145 110 105 98.4 170 20 4-18 4-Φ19 4-Φ16
50(2") 160 125 120 120.7 200 21 4-Φ18 4-Φ19 4-Φ18
65(21/2") 180 145 140 139.7 245 25 4-Φ18 4-Φ19 4-Φ18
80(3") 195 160 150 152.4 265 26 8-Φ18 8-Φ19 4-Φ18
100(4") 230 180 175 190.5 300 26 8-Φ18 8-Φ19 8-Φ18
125(5") 250 210 210 215.9 350 30 8-Φ18 8-Φ23 8-Φ22
150(6") 280 240 240 241.3 400 30 8-Φ22 8-Φ23 8-Φ22
200(8") 340 295 290 298.5 500 30 8-P22 12-Φ23 8-Φ22
250(10") 390 350 355 362 575 38 12-Φ22 12-Φ25 12-Φ26
300(12") 445 400 400 575 38 12-p22 16-Φ25
