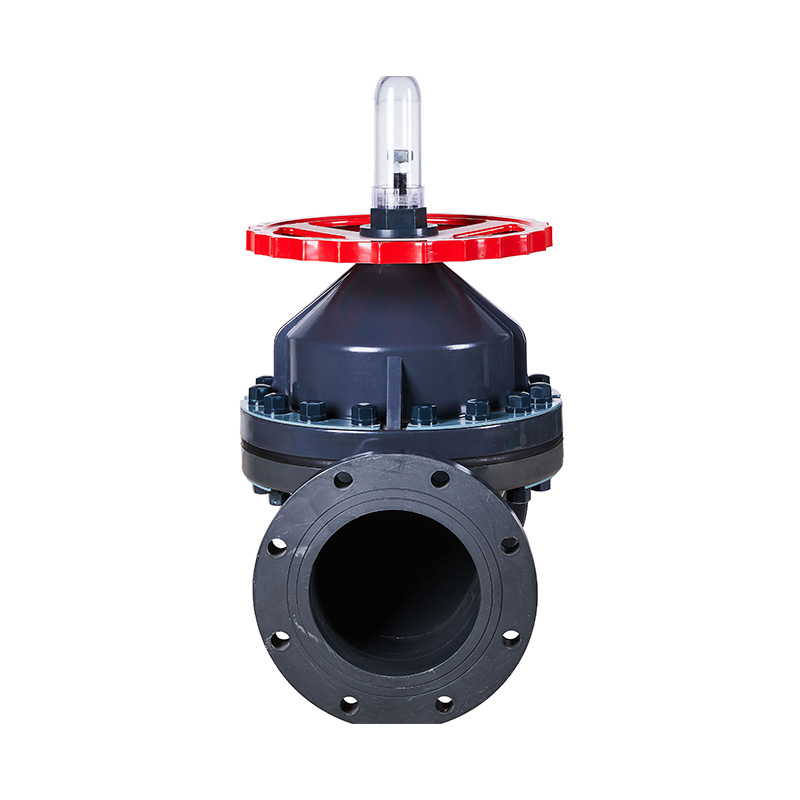

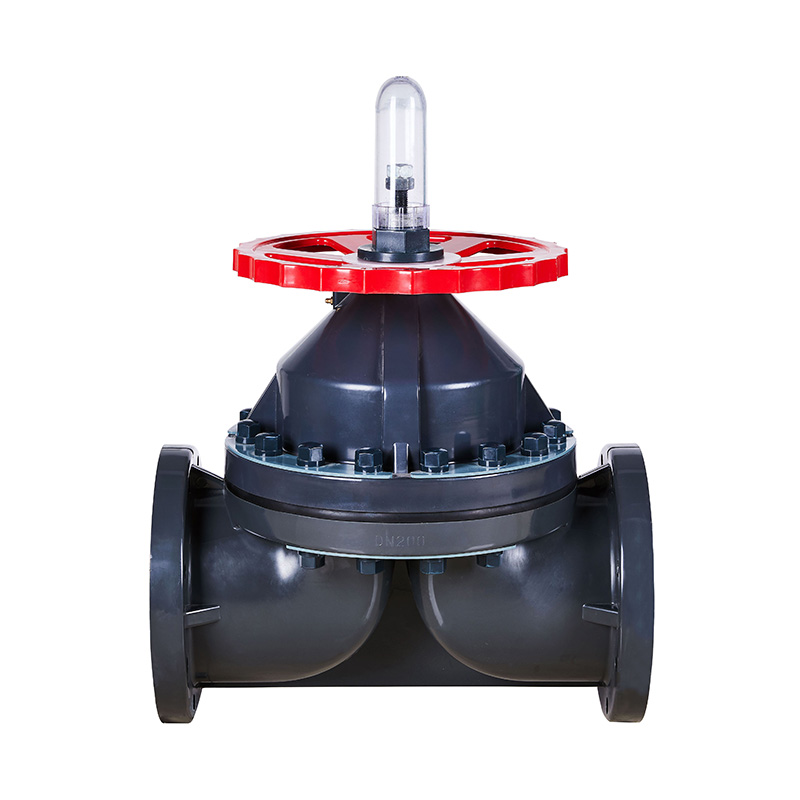

UPVC LABIUM Type Diaphragma valvae DN15-300

UPVC LABIUM Type Diaphragma valvae DN15-300

Calidum venditionis officinas directum DN15-DN250 temperaturae altae Ultimae designationis Novae UPVC Flange Plastic Diaphragma valvae chemica planta

Applicationem: General

Temperature of Media: High Temperature, Medium Temperature

Potentia: Manual

Media: Acid

Portus Size: DN15-DN250

Structura: Diaphragma

Productum nomen: UPVC valvae septum

Connection: Flange desinit

Testimonium: ISO9001

Medium:Acid

Opus pressura: 0-10bar

Valvae type: I-modo

Sigillum: EPDM F46

Delivery Time: 7 Days

MOQ:1 Piece

0086 180 6712 3173 Contact Us
PREV：CPVC LABIUM Type Diaphragma valvae DN15-300
NEXT：No next article
  • Descriptio
  • Additional Information
  • Pelagus features structurarum

    1. Sigillum diaph*ragma ex F46 vel PFA， numerus plicarum est ≥120000 septies et corrosio resistentiae aequiparatur F4.

    2. Adoptatio cochleae structurae elevatio - vis aperta et occlusio ingens est ac stabilitas bona est.

    App temperatus tenetur album

    Materia Medium temperatus°C Materia Medium temperatus°C
    CPVC -20℃~ 95℃ PPH -20℃~ 110℃
    UPVC -0℃~ 65℃ PVDF -40℃~ 150℃
    FRPP -14℃~ 90℃

    Diaphragmaa Valvae Conventus Detail Tractus

    Nec. Nomen Materia
    1 Operculum limit AS
    2 Stud Steel，StainlessSteel.
    3 retentis Nucis FRPP
    4 elementum FRPP
    5 Rota Alloy materia
    6 Platen Steel，StainlessSteel
    7 Duplex bulla ac Nucis Steel，StainlessSteel
    8 Bonnet FRPP、PVDF、UPVC、CPVC、PPH
    9 Iugum Nut Ht300 Steel
    10 Stem Steel，StainlessSteel
    11 Disc FRPP、PVDF、UPVC、CPVC、PPH、Steel、StainlessSteel、C.I.FRP
    12 Flim EPDM、FPM
    13 Diaphragm F46.PFA
    14 Corpus FRPP、PVDF、UPVC、CPVC、PPH
    15 Platen Steel，StainlessSteel

    Operantes pressura et opus temperatus album

    Calibe/MPa/℃

    FRPP

    PVDF

    UPVC

    CPVC

    14-40

    41-60

    61-100

    40-60

    61-90

    91-140

    20-40

    41-60

    61-80

    0-40

    41-60

    61-90

    15(1/2")

    0.8

    0.8

    0.7

    1

    0.9

    0.7

    0.8

    0.8

    0.7

    0.7

    0.7

    0.6

    20(3/4")

    0.8

    0.8

    0.7

    1

    0.9

    0.7

    0.8

    0.8

    0.7

    0.7

    0.7

    0.6

    25(1")

    0.8

    0.8

    0.7

    1

    0.9

    0.7

    0.8

    0.8

    0.7

    0.7

    0.7

    0.6

    32 (11/4")

    0.7

    0.7

    0.6

    1

    0.9

    0.7

    0.7

    0.7

    0.6

    0.7

    0.7

    0.6

    40 (11/2")

    0.7

    0.7

    0.6

    0.8

    0.7

    0.5

    0.7

    0.7

    0.6

    0.7

    0.7

    0.5

    50(2")

    0.7

    0.7

    0.6

    0.8

    0.6

    0.5

    0.7

    0.7

    0.6

    0.7

    0.7

    0.5

    65(21/2")

    0.7

    0.7

    0.6

    0.8

    0.5

    0.4

    0.7

    0.7

    0.6

    0.7

    0.7

    0.5

    80(3")

    0.7

    0.7

    0.6

    0.7

    0.5

    0.4

    0.7

    0.7

    0.6

    0.7

    0.7

    0.5

    100(4")

    0.7

    0.7

    0.6

    0.6

    0.5

    0.4

    0.7

    0.7

    0.6

    0.7

    0.6

    0.5

    125(5")

    0.5

    0.5

    0.4

    0.5

    0.4

    0.3

    0.5

    0.5

    0.4

    0.5

    0.5

    0.4

    150(6")

    0.5

    0.5

    0.4

    0.5

    0.3

    0.2

    0.5

    0.5

    0.4

    0.5

    0.4

    0.3

    200(8")

    0.3

    0.3

    0.2

    0.4

    0.25

    0.2

    0.3

    0.3

    0.2

    0.3

    0.3

    0.25

    250 (10")

    0.3

    0.3

    0.2

    0.4

    0.25

    0.2

    0.3

    0.3

    0.2

    0.3

    0.3

    0.2

    Dimension List

    DN (mm)

    D1

    D

    		L h

    n

    Φ

    GB

    JIS

    ANSI

    GB

    JIS

    ANSI

    GB

    JIS

    ANSI

    15(1/2")

    95

    65

    70

    2.38

    125

    14

    4

    4

    4

    14

    15

    16

    20 (3/4")

    105

    75

    75

    2.76

    135

    18

    4

    4

    4

    14

    15

    16

    25 (1)

    115

    85

    90

    3.13

    145

    18

    4

    4

    4

    14

    19

    16

    32 (11/4")

    135

    100

    100

    3.45

    160

    18

    4

    4

    4

    18

    19

    16

    40 (11/2")

    145

    110

    105

    3.88

    180

    20

    4

    4

    4

    18

    19

    16

    50 (2)

    160

    125

    120

    4.74

    210

    21

    4

    4

    4

    18

    19

    19

    65 (21/2")

    180

    145

    140

    5.49

    250

    22

    4

    4

    4

    18

    19

    19

    80 (3)

    195

    160

    150

    6

    300

    24

    8

    8

    4

    18

    19

    19

    100 (4")

    215

    180

    175

    7.5

    350

    26

    8

    8

    8

    18

    19

    19

    125 (5")

    245

    210

    210

    8.5

    400

    30

    8

    8

    8

    18

    23

    22

    150 (6")

    280

    240

    240

    9.51

    455

    30

    8

    8

    8

    22

    23

    22

    200 (8")

    335

    295

    290

    11.75

    570

    35

    8

    12

    8

    22

    23

    22

    250 (10")

    390

    350

    355

    14.25

    680

    38

    12

    12

    12

    22

    25

    25

    300 (12")

    445

    400

    400

    17

    680

    38

    12

    16

    12

    22

    25

    25

Vide overview
UPVC LABIUM Type Diaphragma valvae DN15-300

Portans Somnium tuum Ad Qualitas Mundi est Vita

Ducimus Company In hoc campo, Praevidemus Imprimis Solutiones Pro nostra Omnis Customers
Valvae diaphragmatis genus est valvae quae diaphragmate flexibili utitur ad transitum e valvae operantis mechanismo separandum. Diaphragma, quod proprie fit ex materia Flexilis vel alia flexibili, cohaeret cum caule per corpus valvae transeunte. Cum caulis sursum vel deorsum movetur, saeptum comprimit vel deprimit, quod vicissim aperit vel claudit transitum.
Diaphragma valvulae saepe adhibentur in applicationibus ubi opus est ut transitus e valvae operantis mechanismo segregare possint ad contagione vel ultrices praecavendam. Late adhibentur in industria chemica, pharmaceutica, cibi et potus. Etiam in purgationibus, sanitariis et sterilibus medicamentis late utendum est. Etiam in applicationibus uti possunt, ubi fluidum moderatum laesura vel corrosiva est, sicut diaphragma ex materiae repugnantibus his conditionibus fieri potest.
Valvulae diaphragmate ordinantur ad longum servitium vitae et humilis dominii sumptus. In promptu sunt multae materiae, nexus et aestimationes probationum. Valvulae diaphragma egregium compromissum offerunt inter fidem, sumptus et effectus.
