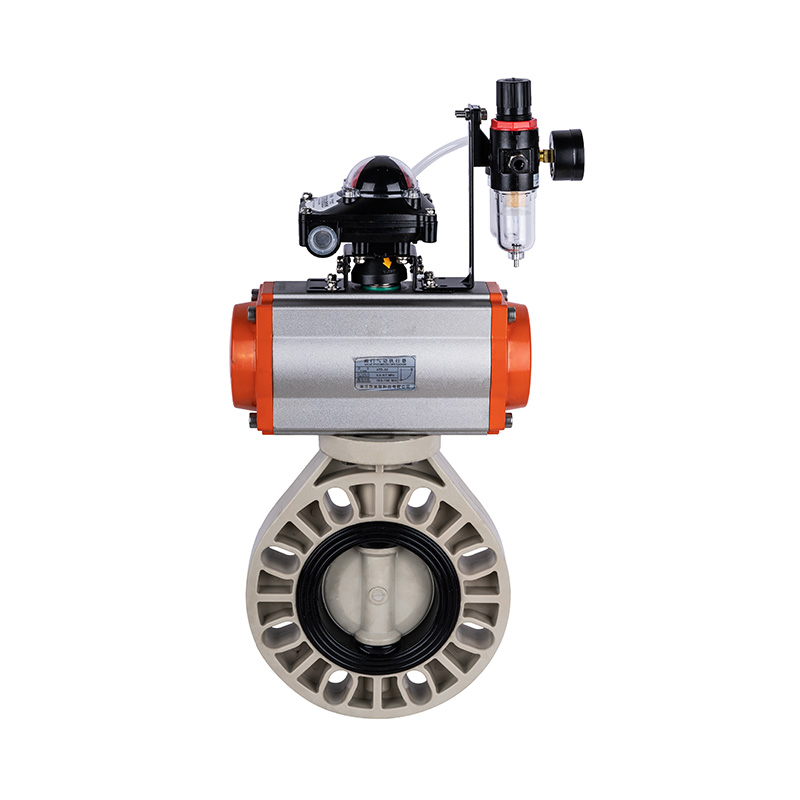

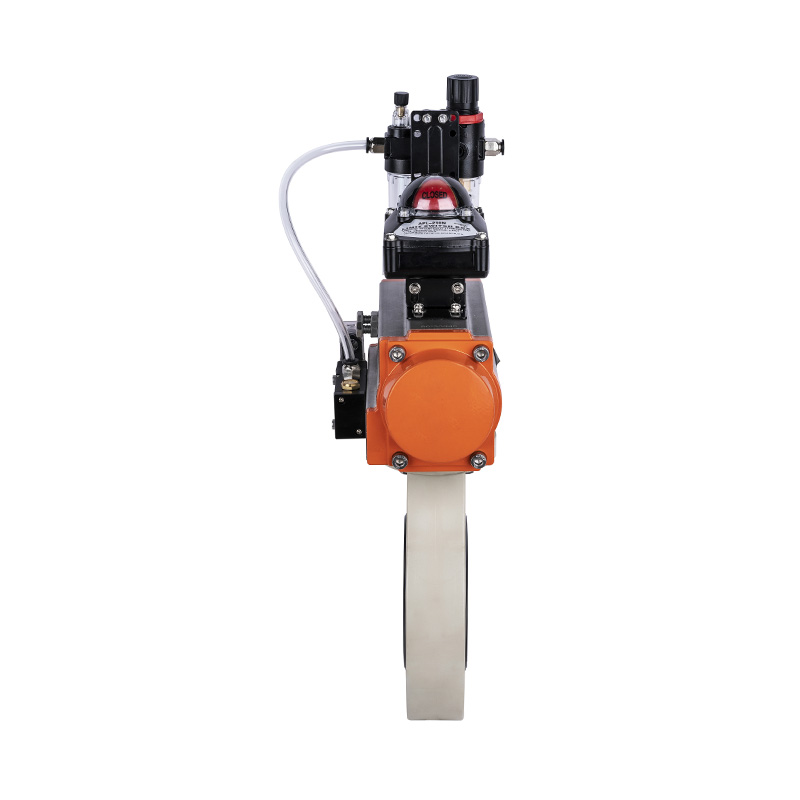

PPH D671X-10S Pneumaticum Papilio Valve DN40-1000 40A-1000A JIS Standard

PPH D671X-10S Pneumaticum Papilio Valve DN40-1000 40A-1000A JIS Standard

PPH Pneumatica Automatic Butterfly Valve, Centrum Sigillum Mollis Sigillum, DN40-1000, Industrialis et Hospitii Plastic Valve, JIS Standard
Potentia Source: Pneumatica
Connection Type: Wafer
Structura: Sigillum Centrum
Signantes Type: Sigillum coactus
Stem: Standard
Pressura Classis: 1.0Mpa（10bar）
Laborans Temperature: -20~ 110°C
Superficiem Material signantes: Mollis Sigillum
Applicationem: Industrial Usus, Aquae Industrialis Usus
Caulis Material: Steel, Steel
Brand: KXPV
Specificatio: DN40-1000
Origin: Zhejiang, Ningbo

Contact Us
PREV：FRPP D671X-10S Pneumaticum Papilio Valve DN40-1000 40A-1000A JIS Standard
DEINDE：PVDF D671X-10F Pneumaticum Papilio Valve DN40-1000 40A-1000A JIS Standard
App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Product Features structuralis

1. Valvulae papilionum series machinalis plasticae fiunt ex FRPP, PVDF, PVC-C, PVC-U, PPH, et aliae materiae thermoplasticae corrosio-resistentes, in iniectione unius processus effictae, praebentes resistentiam validam corrosionis.
2. Flexilis corrosio repugnans adhibita est ut valvae obsignationis efficiendi curandae, idoneam ad media viscositatem transportandam efficiant.
3. Valvae simplicem structuram cum 90° rotatione habet ad vivos aperiendi et claudendi, faciles institutionis ac bonae institutionis effectus.
4. Actus potest remotus per centrum moderari vel moderari, permittens valvulam moderari ratem fluxum et refluentem medii, operandi commodiorem, efficientem ac laboris impensas faciendi, dum in tuto curatorum situs procurat.

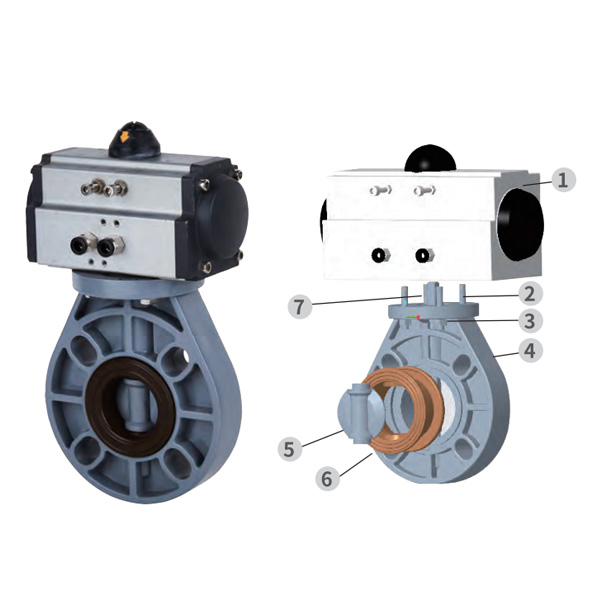

Pars Materia Tabula

Nec. Nomen Materia
1 Actus pneumaticus Aluminium alloy
2 Stud Steel, StainlessSteel
3 Sexangulus nut SS Steel、Steel
4 Corpus FRPP, PVDF, PVC-C, PVC-U, PPH
5 Valvae Plate FRPP, PVDF, PVC-C, PVC-U, PPH
6 signantes rubber EPDM,FPM
7 Stem Steel, StainlessSteel

Dimension List

DN (mm) D1 D2 D3 L H n-ø
GB JIS ANSI GB JIS ANSI
40(1 1/2"） 150 110 105 3.88 45 40 280 4-ø19X25 4-ø19X25 4-ø19X25
50(2") 160 125 120 4.74 51 42 300 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
65(2 1/2"） 180 145 140 5.49 66 47 310 4-ø19X26.5 4-ø19X26.5 4-ø19X26.5
80(3") 200 160 150 6 79 45 400 8-ø19X25 8-ø19X24 4-ø19X25
100(4"） 220 180 175 7.5 98.5 55 410 8-ø19X32 8-ø19X32 8-ø19X32
125(5") 250 210 210 8.5 125 65 500 8-ø23X33 8-ø23X33 8-ø23X33
150 (6). 290 240 240 9.51 148 75 530 8-ø23X34 8-ø23X34 8-ø22X34
200(8"） 340 295 290 11.75 201 85 600 8-ø23X33.5 12-ø23X27 8-ø23X33.5
250(10") 395 350 355 14.25 245.5 110 650 12-ø23X32.5 12-ø25X32.5 12-ø25X32.5
00(16") 597 515 510 21.26 399 140 950 16-ø27X43 16-ø27 16-ø30X43
450 (18") 635 560 565 22.76 446 150 1050 20-ø26X28.5 20-ø26X28.5 16-ø32X34.5
500(20"） 700 620 620 25 494 150 1140 20-ø26X44 20-ø26X44 20-ø32X44
700(28"） 928 820 840 34.02 670 185 1530 24-ø31X44 24-ø33 24-ø35
800(32") 1060 950 950 38.5 755 220 1690 24-ø41X60 28-ø33X38 24-ø41X60
1000(40"） 1210 1160 1160 46.26 935 236 1800 28-ø36X52 28-ø39 32-ø41
