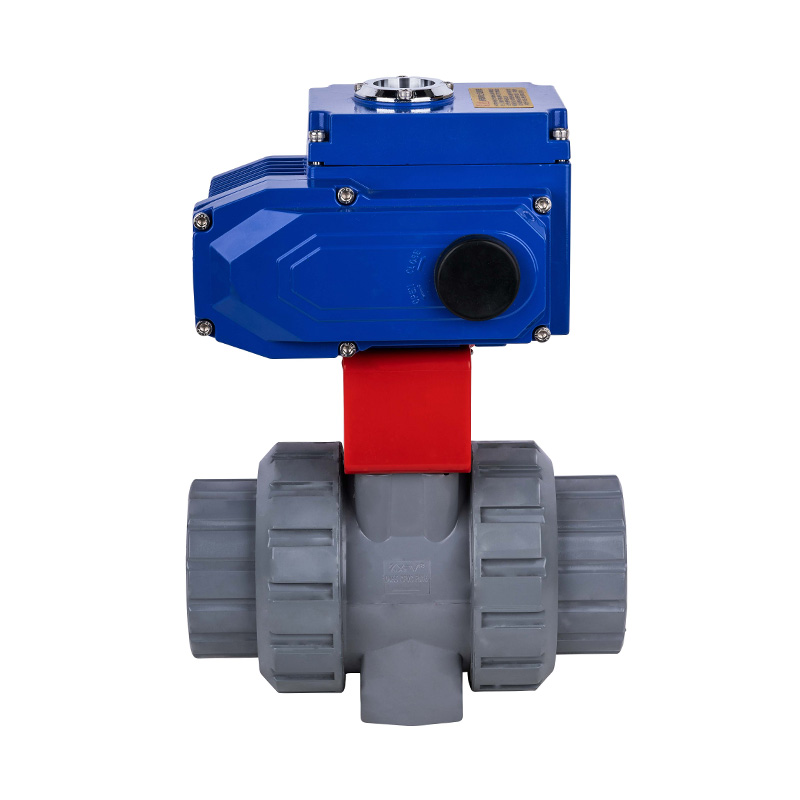

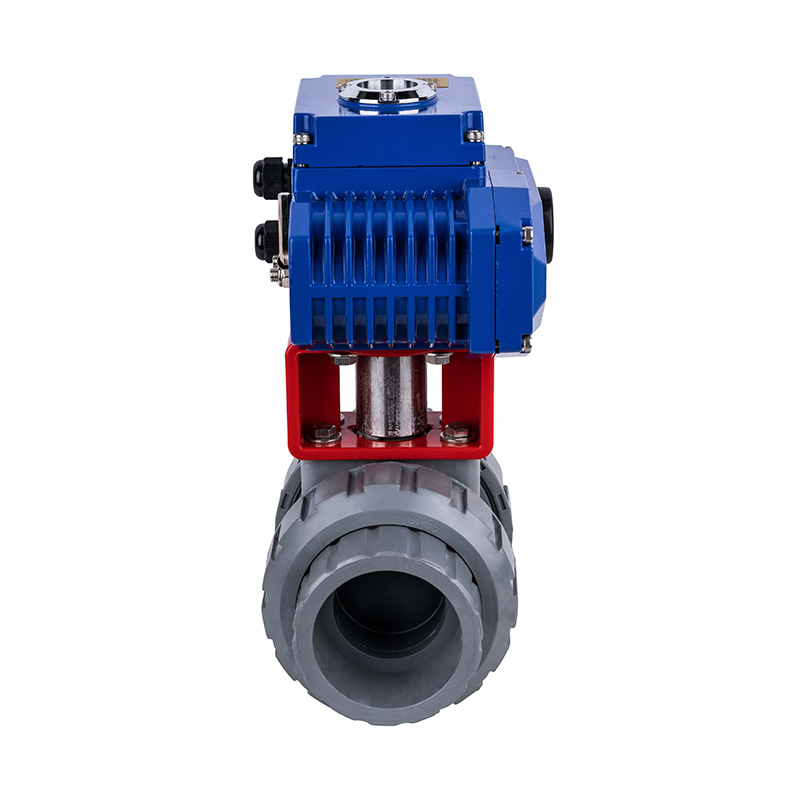

    PVC-C D961F-10V Electric Duplex Unionis Ball Valve DN15-100 1/2'-4' ANSI Standard

    PVC-C D961F-10V Electric Duplex Unionis Ball Valve DN15-100 1/2"-4" ANSI Standard

    Excellent Quality Ultra-Durable Electric Socket Ball Valve, High-Temperature Electric Ball Valve, Apta Chemical Industry ANSI Standard
    Exemplar: D961F-10V
    Materia: Plastic
    Connection Type: Custom
    Operatio Modus: Manual
    Pressura nominal: 10kg
    Influunt Path: Recta per
    Structura: fixa Ball Valve
    Munus: Per-transeat Valvae
    Temperatus: High Temperature
    Applicationem: Industrial Usus, Aquae Industry Usus
    Brand: KXPV
    Size: DN15-DN100
    Origin: Zhejiang, Ningbo

    Pressura Classis: 1.0Mpa（10bar）

    Contact Us
    PREV：PVC-U D671X-10V Pneumaticum Papilio Valve DN32-1000 1-1/4"-30" ANSI Standard
    DEINDE：PVC-U D961F-10U Electric Duplex Unionis Ball Valve DN15-100 1/2"-4" ANSI Standard
    App Temperature Bound List

    Materia Medium temperatura Materia Medium temperatura
    PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
    FRPP -20℃~ 120℃ PPH -20℃~ 110℃
    PVDF 40℃~ 150℃

    Product Features structuralis

    1. Valvulae globuli series machinativae fiunt ex FRPP, PVDF, PVC-C, PVC-U, PPH, et aliae materiae thermoplasticae corrosioni-resistentes, in unum processum iniectionis effictae, fortem corrosionem praebentes resistentiam.
    2. Sedis emissiones PTFE apte adaptari potest.
    3. Duplex consilium O-anulus tutelam rimam praebet duplicem.
    4. Valvae lineamenta sunt species exquisitae, superficies laevis, processus subtilis, et designatio plenae fluxus.
    5. Actus potest remote per centrum moderari vel moderari, permittens valvulam moderari ratem fluens et refluxus medii, operandi commodiorem, efficientem et reducendi impensas operandi, dum pro salute curatorum on-site.

    Pars Materia Tabula

    Nec. Nomen Material Qty.
    PVC-C PVC-U
    1 Electro-pneumaticum subsidium Alloy materia 1
    2 Stem PVC-C PVC-U 1
    3 Corpus PVC-C PVC-U 2
    4 Sigillum sede O-annulum 1 FPM EPDM 1
    5 sigillum sede PVC-C PVC-U 1
    6 sigillum sede O-ring 2 FPM EPDM 2
    7 sigillum sede O-ring 3 FPM EPDM 2
    8 Sten seal PTFE PTFE 2
    9 Ball PVC-C PVC-U 1
    10 c press PVC-C PVC-U 2
    11 Unio American Standard Fitting PVC-C PVC-U 2
    12 StemO inaures FPM EPDM 2
    13 StemConnectors Alloy materia 1

    Dimension List

    Specification D(mm) D1(mm) L(mm) Z(mm) H(mm) Φ1(mm) L1XL1(mm) L2(mm) n-Φ1(mm)
    1/2" (15) 50 21.34 110 22.5 87.8 Φ50 11x11 13 4-Φ6.5
    3/4"(20) 58 26.67 126 25.5 97.5 Φ50 11x11 13 4-Φ6.5
    1"(25) 70 33.4 140 29 106.6 Φ50 11x11 13 4-Φ6.5
    1¼"(32) 85 42.16 160 32 123.5 Φ50 14x14 17 4-Φ6.5
    1½»(40) 98 48.26 170 35 138.5 Φ50 14x14 17 4-Φ6.5
    2"(50) 124 60.32 190 38.5 163.5 Φ50 14x14 17 4-Φ6.5
    2½»(65) 135 73.02 230 45 191 Φ70 17x17 21 4-Φ9
    3»(80) 158 88.9 280 48 222.5 Φ70 17x17 21 4-Φ9
    4"(100) 192 114.3 340 57.5 261.5 Φ70 Φ102 22x22 21 4-Φ9 4-Φ11
