PVC-C D971X-10V Papilio Electric Valve DN32-1000 1-1/4'-30' ANSI Standard

PVC-C D971X-10V Papilio Electric Valve DN32-1000 1-1/4"-30" ANSI Standard

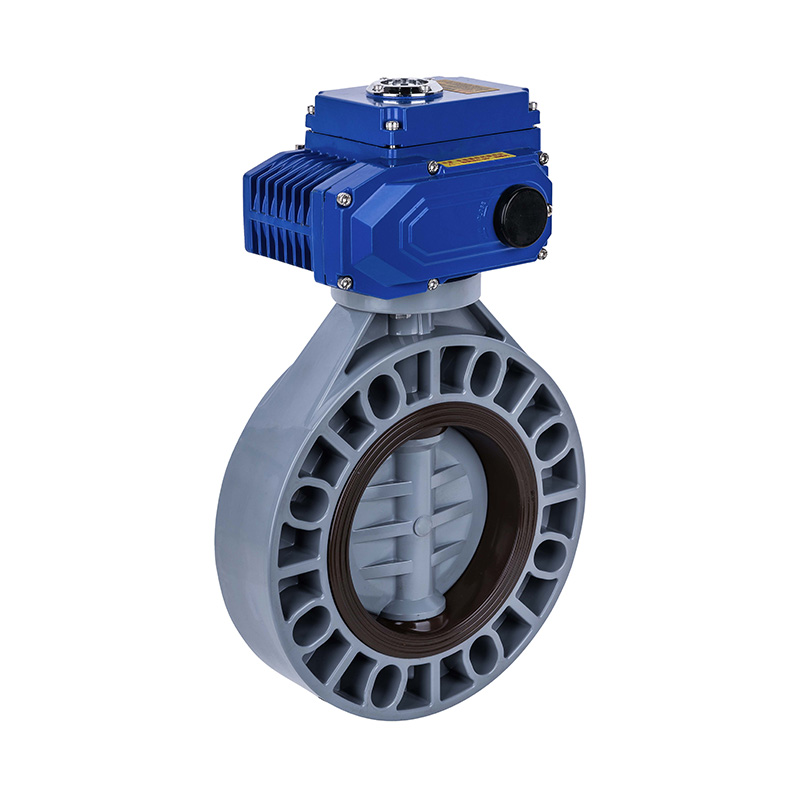

PVC-C Electric Actuated Butterfly Valve, Centre Sigillum Soft Seal DN32-1000, Industrial and Residential Plastic Butterfly Valve ANSI Standard
Modus operationis: Lorem
Connection Type: Wafer
Structura: Sigillum Centrum
Sigillum Typus: Sigillum coactus
Stem: Standard
Pressura Classis: 1.0Mpa（10bar）
Temperature: -20~95°C
Sigillum Material: Mollis Sigillum
Applicationem: Industrial Usus, Aquae Industry Usus
Caulis Material: Steel, Steel
Brand: KXPV
Size: DN32-1000
Origin: Zhejiang, Ningbo

Contact Us
PREV：PVDF D971X-10F Butterfly Valve Electric DN32-1000 1-1/4"-30" ANSI Standard
DEINDE：PVC-U D971X-10U Papilio Electric Valve DN32-1000 1-1/4"-30" ANSI Standard
App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Product Features structuralis

1. Valvulae papilionum series machinalis plasticae fiunt ex FRPP, PVDF, PVC-C, PVC-U, PPH, et aliae materiae thermoplasticae corrosio-resistentes, in iniectione unius processus effictae, praebentes resistentiam validam corrosionis.
2. Flexilis corrosio repugnans adhibita est ut valvae obsignationis efficiendi curandae, idoneam ad media viscositatem transportandam efficiant.
3. Valvae simplicem structuram cum 90° rotatione habet ad vivos aperiendi et claudendi, faciles institutionis ac bonae institutionis effectus.
4. Actus potest remote per centrum moderari vel moderari, permittens valvulam moderari ratem fluxum et refluentem medii, operandi commodiorem, efficientem ac laboris impensas faciendi, dum in tuto curatorum situs procurat.

Pars Materia Tabula

Nec. Nomen Materia Qty.
CPVC UPVC PVDF PPH FRPP
1 Corpus CPVC UPVC PVDF PPH FRPP 1
2 Disc CPVC UPVC PVDF PPH FRPP 1
3 signantes rubber FPM EPDM FPM EPDM 1
4 Stem Steel 1

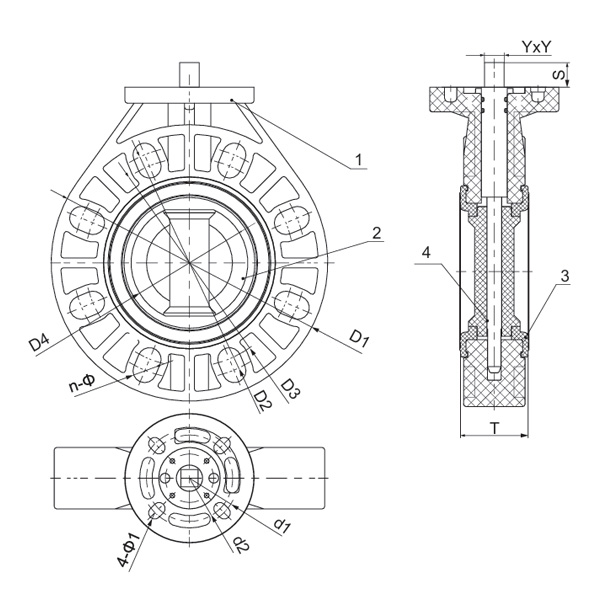

Dimension List

Specification D1(mm) D2(mm) D3(mm) D4(mm) T(mm) n-Φ(mm) YxY (mm) S(mm) d1 (mm) d2(mm) 4-Φ1(mm)
1¼"(32) 140 106 89 33 35 4-Φ17 11x11 12 50 50 4-Φ7
1½»(40) 148 110 98 41.5 39 4-Φ19 14x14 12 72 68 4-Φ10
2"(50) 162 125 110 48.5 43 4-Φ19 14x14 12 72 68 4-Φ10
2½»(65) 180 145 130 63 45 4-Φ19 14x14 16 72 68 4-Φ10
3»(80) 198 160 150 75.5 45 8-Φ19 14x14 16 72 68 4-Φ10
4"(100) 225 191 170 95 56.5 8-Φ19 17x17 18 80 70 4-Φ10
5» (125) 255 216 200 120 65 8-Φ23 17x17 18 80 70 4-Φ10
6"(150) 285 241 225 143.5 75 8-Φ23 17x17 23 80 70 4-Φ10
8"(200) 340 299 295 195 85 8-Φ23 22x22 23 80 70 4-Φ10
10"(250) 423 366 350 245.5 110 12-Φ23x32 22x22 30 102 102 4-Φ12
12"(300) 495 436 400 291.5 115 12-Φ23x42 22x22 30 102 102 4-Φ12
14 (350) 555 470 460 340 127 16-Φ22 12-Φ29 22x22 35 102 102 4-Φ12
16"(400) 607 540 515 399 140 16-Φ23x45 27x27 35 140 140 4-Φ18
18"(450) 645 583 565 446 150 20-Φ28.5 16-Φ34.5 27x27 40 165 165 4-Φ22
20"(500) 708 640 615 494 150 20-Φ26x41 36x36 40 165 165 4-Φ22
24"(600) 820 750 725 570 170 20-Φ35x47 36x36 40 254 254 4-Φ22
