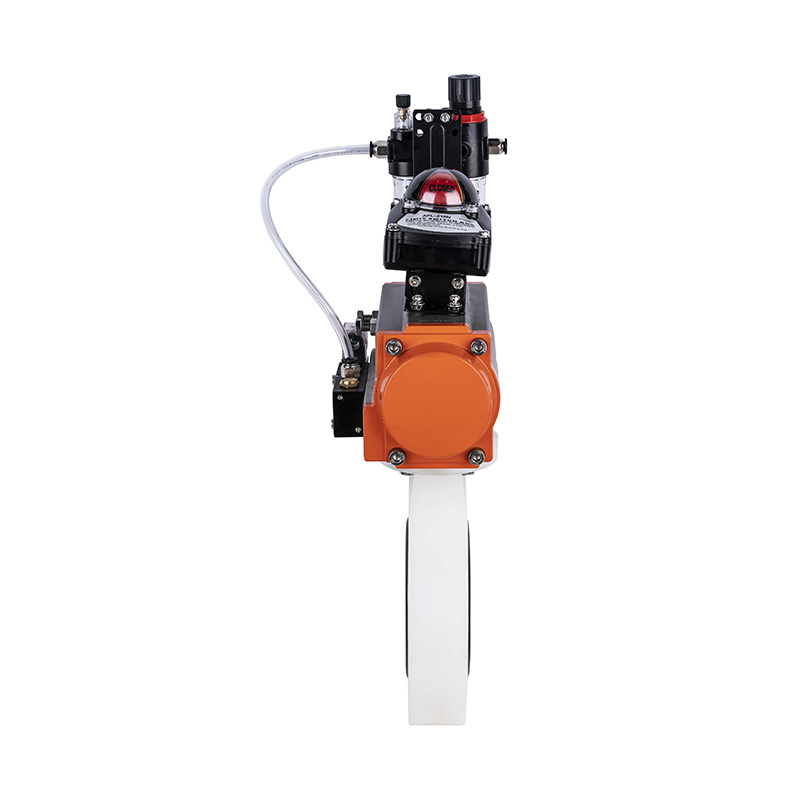

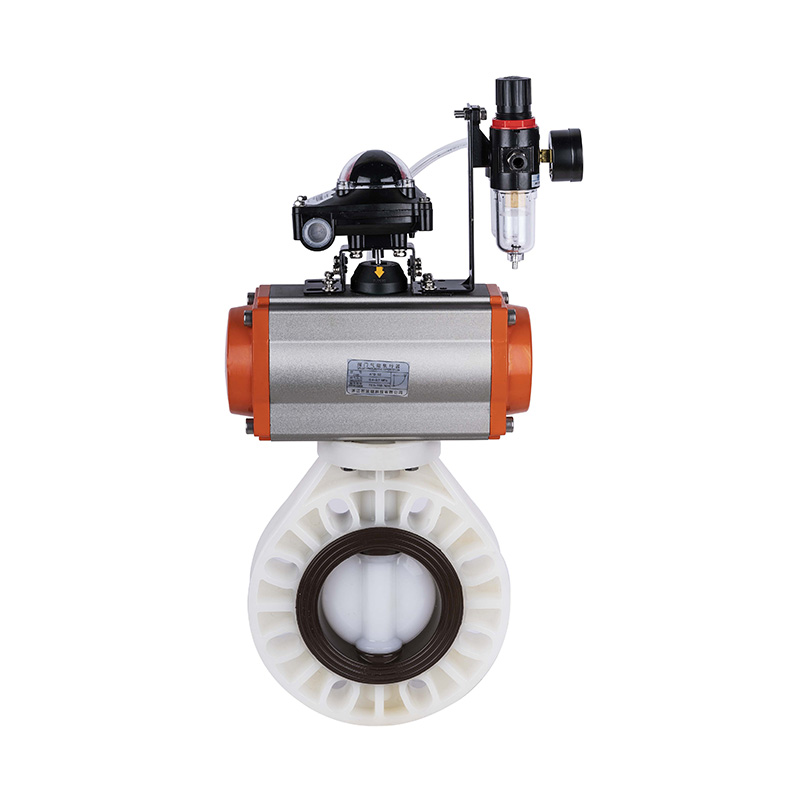

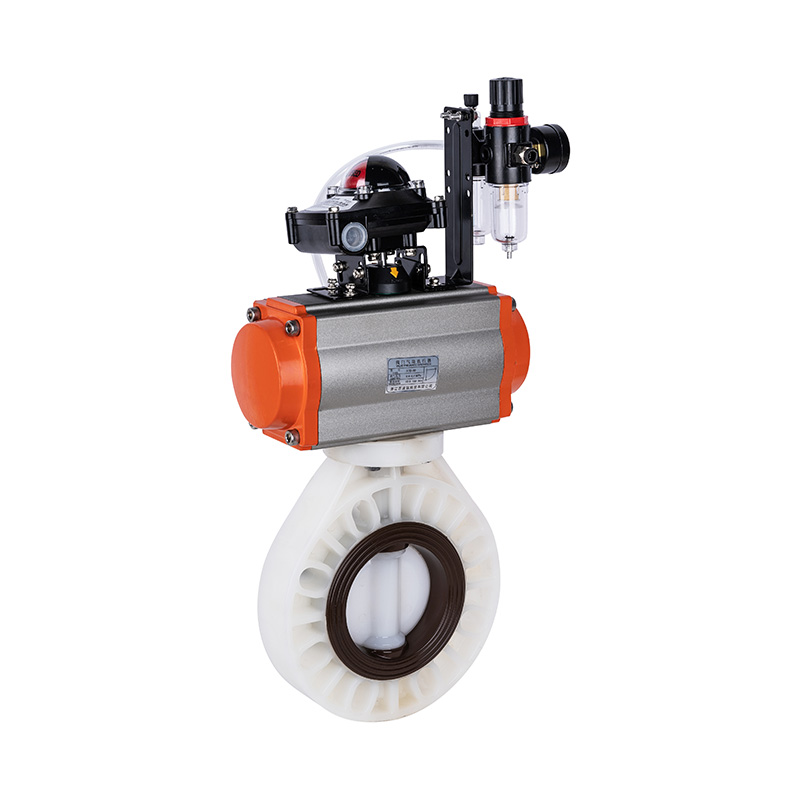

PVDF D671X-10F Pneumaticum Gloria Valvae DN32-1000 GB Standard

PVDF D671X-10F Pneumaticum Gloria Valvae DN32-1000 GB Standard

PVDF Pneumaticum Automatic Butterfly Valvae, Centrum Sigillum, Sigillum molle, DN32-1000, Industriale et hospitii Plastic Butterfly Valvae
Modus actus: Automatic
Connection Type: Wafer
Structura: Sigillum Centrum
Sigillum Typus: Sigillum coactus
Valvae Stem: Standard
Pressura Classis: 1.0Mpa（10bar）
Laborans Temperature: -40~150°C
Sigillum Superficies Material: Mollis Sigillum
Applications: Industrial, Aquae Industrial
Valvae Caule: Steel, Steel
Nomen notam: KXPV
Formularium: DN32-1000
Originis locus: Ningbo, Zhejiang

Contact Us
PREV：FRPP D671X-10S Pneumaticum Papilio Valve DN32-1000 GB Standard
DEINDE：PVC-C D671X-10S Pneumaticus Gloria Valve DN32-1000 GB Standard
App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

Product Features structuralis

1. Hae valvulae papiliones plasticae machinatrices ex corrosione thermoplasticorum repugnantium injectiones effinguntur ut FRPP, PVDF, PVC-C, PVC-U, PPH praebentes repugnantiam validam.
2. Flexilis corrosio-resistentis valde adhibetur ut sigillum strictum adhibeatur, ea apta ad instrumenta viscositatis transferenda.
3. Formant structuram simplicem, 90° rotationem ad vivos aperiendas et claudendas, facilem institutionem et optimam aptabilitatem.
4. Actus potest remote per centrum moderari vel moderari, permittens aperitionem et claudendam valvae fluere ac refrenare instrumentorum communicationis. Hoc maiorem opportunitatem et celeritatem praebet, laboris impensas minuit, opificum salus in tuto collocetur.

Pars Materia Tabula

Nec. Nomen Materia
1 Actus pneumaticus Aluminium alloy
2 Stud Steel, StainlessSteel
3 Sexangulus nut SS Steel、Steel
4 Corpus FRPP, PVDF, PVC-C, PVC-U, PPH
5 Valvae Plate FRPP, PVDF, PVC-C, PVC-U, PPH
6 signantes rubber EPDM,FPM
7 Stem Steel, StainlessSteel

Dimension List

DN(mm) D1 D2 D3 T H n-Φ
GB JIS ANSI GB JIS ANSI
32 (11/4") 140 100 100 88.9 33 35 270 4-Φ17 4-Φ17 4-Φ17
40 (11/2") 150 110 105 98.4 41.5 39 280 4-Φ19X25 4-Φ19X25 4-Φ19X25
50(2") 160 125 120 120.7 50 40 300 4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
65(21/2") 180 145 140 139.7 64 42 310 4-Φ19X26.5 4-Φ19X26.5 4-Φ19X26.5
80(3") 200 160 150 152.4 77 42 400 8-Φ19X25 8-Φ19X25 4-Φ19X20
100(4") 225 180 175 190.5 96 52 410 8-Φ19X32 8-Φ19X32 8-Φ19X32
125(5") 255 210 210 215.9 120 61 500 8-Φ23X33 8-Φ23X33 8-Φ23X33
150(6") 290 240 240 241.3 145 71 530 8-Φ23X34 8-Φ23X34 8-Φ23X34
200(8") 340 295 290 298.5 196.5 81 600 8-Φ23X33.5 12-Φ23X27 8-Φ23X33.5
250(10") 420 350 355 362 245.5 110 650 12-Φ23.5X32 12-Φ23.5X32 12-Φ23.5X32
300(12") 500 400 431.8 291.5 115 750 12-Φ28X48 12-Φ28X48
350 (14") 550 460 476.3 340 127 850 16*Φ26 12-Φ33
400(16") 619 515 510 539.8 399 140 950 16*Φ36X52 16* Φ 36X52 16*Φ36X52
450 (18") 655 565 565 577.9 446 150 1050 20-Φ25 20-Φ27 16* Φ 33
500(20") 705 620 620 635 494 150 1140 20-Φ26X33 20-Φ27X33 20-Φ26X33
600(24") 816 725 749.3 570 170 1290 20-Φ28X38 20-Φ28X38
700(28") 910 840 840 670 185 1530 24-Φ33X44 24-Φ33X44
800(32") 1055 960 950 977.9 755 240 1690 24-Φ44.5X65 28-Φ36X52 24-Φ44.5X65
1000(40") 1230 1160 1160 935 236 1800 28- Φ 36X52 28-Φ39
