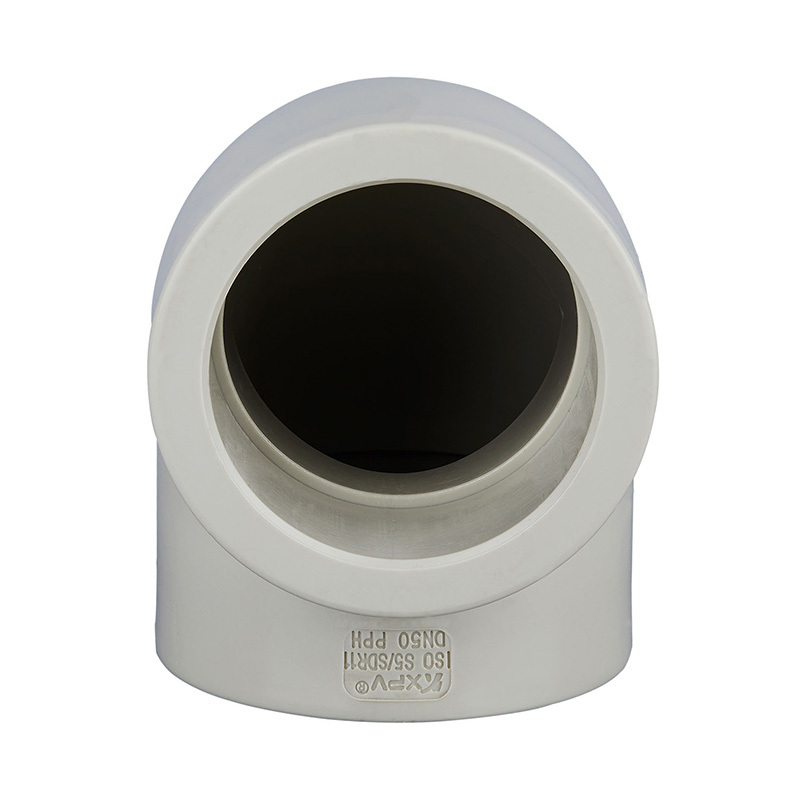

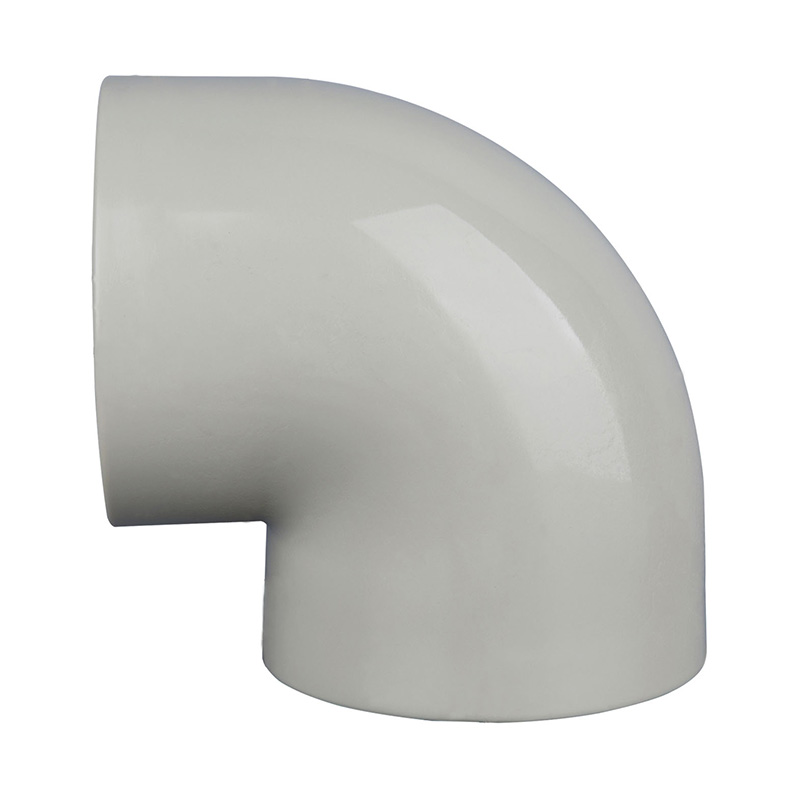

PPH 90 ° Cubitus DN15-600

PPH 90 ° Cubitus DN15-600

Alta Quality Gray CPVC 90 Gradus Cubitus Aequalis figurae DN15-DN600 1.0-1.6Mpa Operationis Pressurae Plastic Pipe Opportunus Chemical Et Aquae industriae

Locus Origin: China

Nomen notam: KXPV

Technicae: Forged

Connection: nervum

Figura: Aequalis

Materia: CPVC

Color: Grey

Caput Code: Quadratus

Color: Grey

Magnitudo: DN15-DN600

Applicationem: Industry

Sarcina: lobortis Box

Operationis Impetus: 1.0-1.6Mpa (10-25bar)

Supple Facultates: 10000 Piece / Pieces per Month

PREV：PPH 45 ° Cubitus DN15-600
NEXT：PPH Pipes DN15-600 0086 180 6712 3173 Nobis loquere
  • Descriptio
  • Additional Information

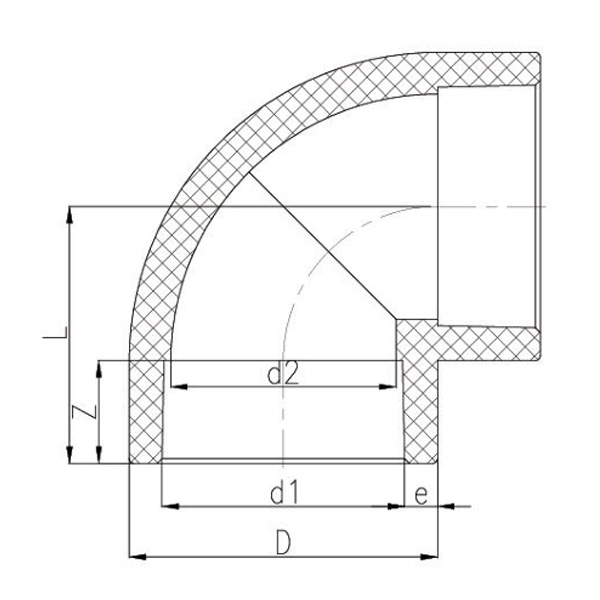

  • CPVC 90 ° Cubitus Main Connection Dimension

    DN

    D1

    d1

    d2

    L

    Z

    DN15

    26

    20

    16

    28

    15

    DN20

    31

    25

    20

    32

    18

    DN25

    39

    32

    27

    38

    20

    DN32

    51

    40

    35

    47.5

    22

    DN40

    64

    50

    45

    57

    25

    DN50

    81

    63

    57

    68.5

    28

    DN65

    93

    75

    68

    77.5

    31

    DN80

    110

    90

    80

    90

    35

    DN100

    134

    110

    100

    108

    41
