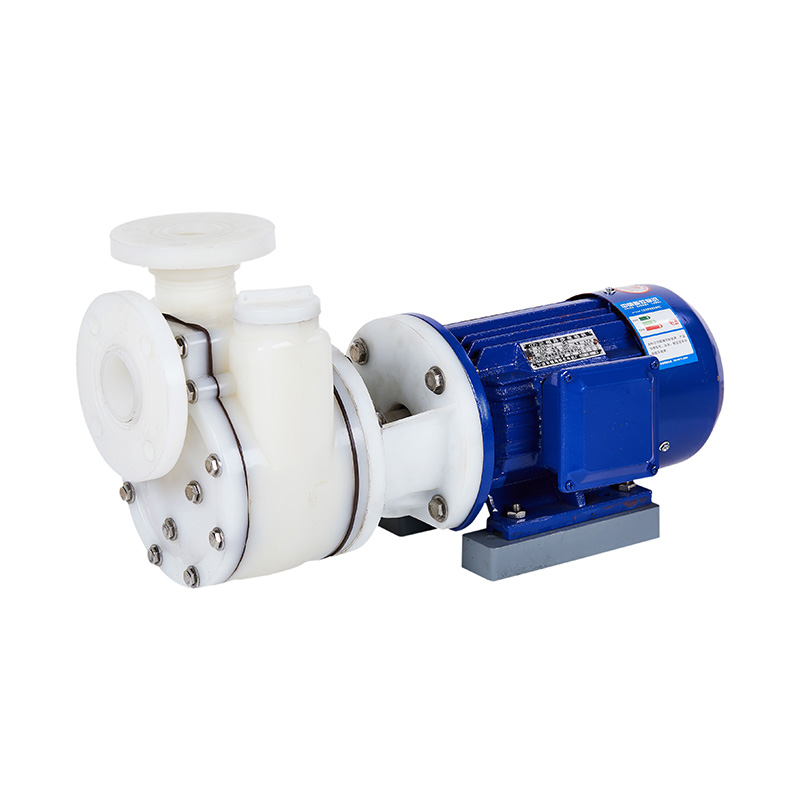

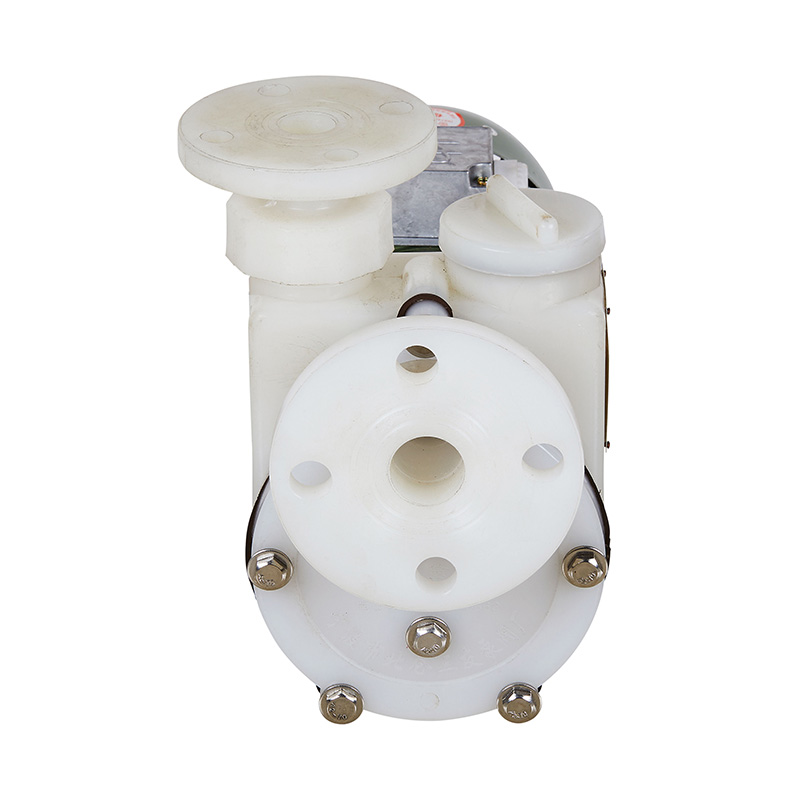

FVZ Direct Type Self-Priming Pump

FP Series Corrosio resistens Plastic Self-priming Pump (Direct Connection Type) High Pressure Automatic Industrial RPP Direct Type Self Priming Water Pump for Water Treatment and Chemical usage

Nomen notam: KXPV

Origin: Zhejiang, China

Applicatio: Aquae curationis Solutiones, Chemical

Pressura: consuetudo, Pressura

Materia: RPP

Color: Viridis

Structura: Dirige Type Pump Centrifuga

Outlet Size: consuetudo

Potentia: Electric

Product nomen: Centrifugae Pump

Type: Direct

Size:25FPZ-8D(0.55KW)--- 100FPZ-32D(15kw)

Delivery time: 7 days

MOQ: 1piece

Usus: Industry

Supple Ability: 10000 Piece/Picies per Month

PREV：FPZ Shaft Type Self-Priming Pump
NEXT：No next product 0086 180 6712 3173 Nobis loquere

Descriptio
Additional Information

PVDF & FRPP Pumps Specification

Nostrae officinas speciales in productione quattuor seriei (FV, FP, FVZ, FPZ) quattuor seriei (FV, FP, FVZ, FPZ) sentinarum centrifugarum PVDF et FRPP et sentinarum propriarum primarum. acidum validum, oxidizer validum, halogen, hydrocarbonum aromaticum, media chemica sicut adeps, menstrua chlorinata, temperatura practica ad 40° C ad 140°C. Sentinam FRPP apta est ad salia valida alcali, acido & alcali salibus et eius derivatis communiter. Nam secundarium sentinam pellunt generalem Y genus motoris industriae salutaris, et temperatura operans est -40 ° C - 90 ° C . Explosio probatio motoris tantum suppletur. cum iuxta requisition.With specialibus requisitis ad currendum, levandum, rotandum celeritatem et potentiam, nostra officina technicam servitutem praebere potest ad occursum exigentiae emptoris.

ANTLIA FORMA

Centrifugae Pump / Self-Priming Pump O lacinia purus

Installation Sustentacionem

1. Post longum spatium vecturae, ante institutionem sentinam cohibenda, utrum partes machinae sentinae integrae sint, ligatores laxae sunt, et rursus adstringi debet ad reprimendum concentricis scapi sentinae et scapus motoriis. . Si qua laxus est, corrigi debet. Sentinam ante institutionem maxime parcere debet; hastile connexum et crines in situ dextro arcte componi debent.

2. Sentinae corpus omne PVDF et FRPP resinae iniectio fingunt, ut lineae limbi et exitus fistulae sustentationem vel structuram suspensionis habeant, non nisi per iuncturas flangores sustineri debent. Pipelinum limbum non plus quam 2pcs 90° cubitum habere debet. FP, FV typus sentinae centrifugae in fine suctionis tubi anterioris instituetur ut sentinam liquido impleatur antequam sentinam incipias. COLLUM suctio vel valvae fundi colum columellae instituentur, vel colum erit. in limbum institui, ne sundres in sentinam resorbeantur et ut sentinam apte operari possint.

3. Omnis nexus sit arcta et sine lacus aëris, secus sentinam non recte operatur et designatum fluere ac levare debet.

Self-Priming Pump

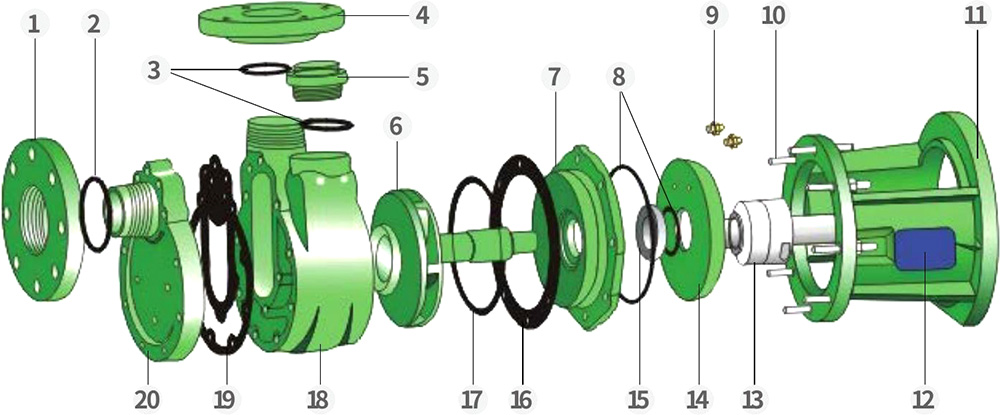

Direct Connection Type Self-priming Pump Conventus Detail Drawing

Pars Materia Tabula

Nec.	Nomen	Material
1	LABIUM lingua	FRPP, PVDF
2	Annulus	EPDM'FPM
3	Annulus	EPDM,FPM
4	Sentinam corpus	FRPP, PVDF
5	Liquor injectin operculo	FRPP, PVDF
6	Impeller hastile	FRPP/Steel PVDF Steel
7	Retro Cover	FRPP, PVDF
8	Annulus	EPDM,FPM
9	Aquam frigidam operimentum	Steel
10	Duplex praevenirent	Ferrum, Diver
11	Suppot	aluminium
12	Date laminam	FRPP, PVDF
13	Mechanica sigillum movet	Sic
14	Refrigescit operculo	FRPP
15	Mechanica sigillum static	Sic
16	Sigillum cinematographicum	EPDM'FPM
17	Annulus	EPDM,FPM
18	Sentinam corporis sui primm	FRPP, PVDF
19	ianua	EPDM'FPM
20	Aurelius	FRPP, PVDF

Fpv Self-Priming Pump

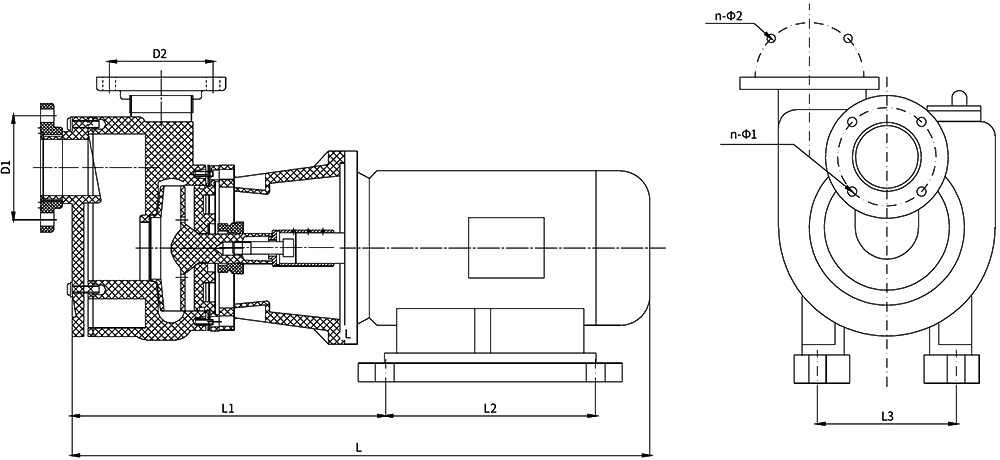

DIMENSIA LIST UNIT：mm

Typus/ Dimension			Installed magnitudine				LABIUM lingua		Sentinam corpus
			L	LI	L2	L3	D1(Φ)	n-Φ1	D2	n-Φ2
25F	p	(D) -8	500	300	145	110	25	Shrink	Φ25	Shrink
	v
32F	p	(D)-11	500	300	145	110	32	Shrink	Φ25	Shrink
	v
40F	p	(D) -18	560	320	145	140	110	4-Φ18	100	4-Φ18
	v
50F	p	(D)-22	590	320	145	140	125	4-Φ18	110	4-Φ18
	v
80F	p	(D) -30	750	415	140	325	160	8-Φ18	145	4-Φ18
	v
80F	p	(D) -32	750	415	140	325	160	8-Φ18	145	4-Φ18
	v
