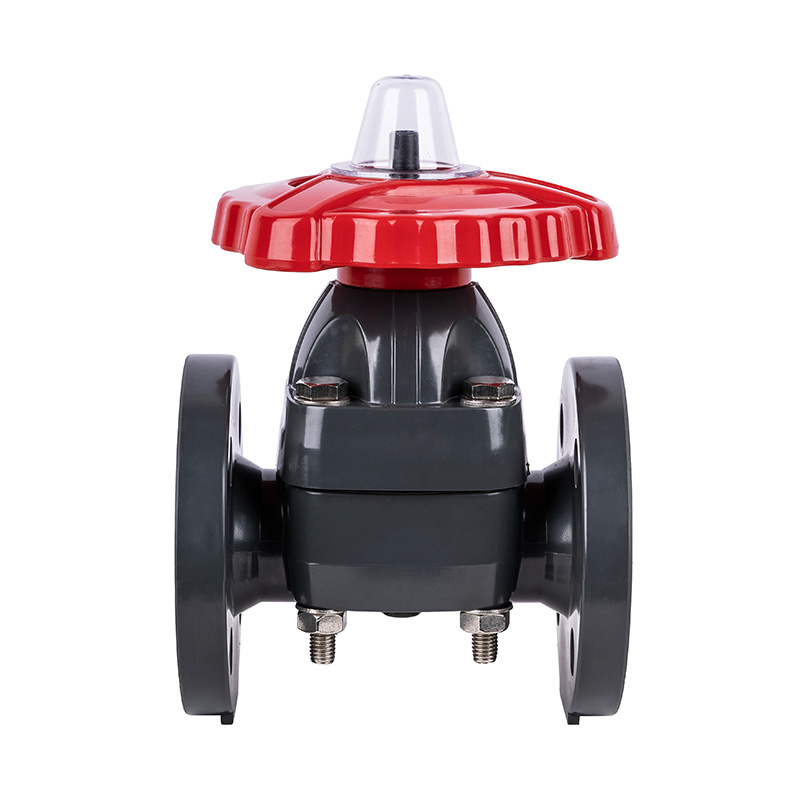

PVC-U G41F-10U Flanged Type Diaphragma Valvae DN15-300 GB Standard

PVC-U G41F-10U Flanged Type Diaphragma Valvae DN15-300 GB Standard

Hot-vendere officinam directam DN15-DN300 summus temperatus, tardus designatus PVC-U valvae plasticae diaphragmatis pro planta chemica
Applicationem: General
Temperature of Media: High Temperature, Medium Temperature
Potentia: Manual
Media: Acid
Magnitudines Portus: DN15-DN300
Structuren: Diaphragma
Product Name: PVC-U Diaphragma valvae
Connection: Fines Flange
Certification: ISO9001
Pressura Classis: 1.0Mpa（10bar）
Valvae Type: I-modo
Sigillum: EPDM F46
Delivery Time: 7 Days
MOQ: 1 piece

Contact Us
PREV：PVC-U G41F-10U Typus Diaphragmatis Valvae Diaphragmatis DN15–300 1/2"-12" ANSI Standard
DEINDE：PVDF G41F-10F Flange Type Diaphragma Valvae DN15-300 GB Standard
Prod*uct Features structuralis
1. Sigillum diaphragma ex F46 vel PFA constituitur, numerus plicarum est ≥120000 temporum, et corrosio resistentiae F4 aequiparatur.
2. Adoptatio cochleae structuram tollens, vis aperiendi et claudendi est ingens ac stabilitas bona.

App Temperature Bound List

Materia Medium temperatura Materia Medium temperatura
PVC-C -20℃~ 95℃ PVC-U -5℃~ 45℃
FRPP -20℃~ 120℃ PPH -20℃~ 110℃
PVDF 40℃~ 150℃

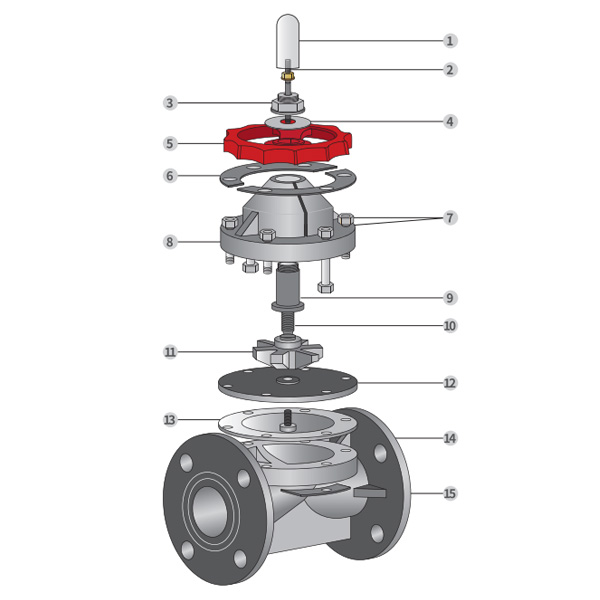

Diaphragmaa Valvae Conventus Detail Tractus
Nec. Nomen Materia
1 Operculum limit AS
2 Stud Steel, StainlessSteel
3 retentis Nucis FRPP
4 elementum FRPP
5 Rota Alloy materia
6 Platen Steel, StainlessSteel
7 Duplex bulla ac Nucis Steel, StainlessSteel
8 Bonnet FRPP, PVDF, PVCC, PVC-U, PPH
9 Iugum Nut Steel, aeris Ht300 Steel
10 Stem Steel, StainlessSteel
11 Valvae Plate conjecit iron、FRPP, PVDF, PVC-U, PVC-C, PPH、
Steel, StainlessSteel、C.1.FRP
12 Flim EPDM,FPM
13 Diaphragm F46.PFA.PTFE
14 Corpus FRPP, PVDF, PVCC, PVC-U, PPH
15 Platen Steel, StainlessSteel

Operantes Impetus Et Operationis Temperature List

INGENIUM/MPa/℃

FRPP

PVDF

PVC-U

PVC-C

14-40

41-60

61-100

40-60

61-90

91-140

20-40

41-60

61-80

0-40

41-60

61-90

15(1/2")

0.8

0.8

0.7

1

0.9

0.7

0.8

0.8

0.7

0.7

0.7

0.6

20(3/4")

0.8

0.8

0.7

1

0.9

0.7

0.8

0.8

0.7

0.7

0.7

0.6

25(1")

0.8

0.8

0.7

1

0.9

0.7

0.8

0.8

0.7

0.7

0.7

0.6

32 (11/4")

0.7

0.7

0.6

1

0.9

0.7

0.7

0.7

0.6

0.7

0.7

0.6

40 (11/2")

0.7

0.7

0.6

0.8

0.7

0.5

0.7

0.7

0.6

0.7

0.7

0.5

50(2")

0.7

0.7

0.6

0.8

0.6

0.5

0.7

0.7

0.6

0.7

0.7

0.5

65(21/2")

0.7

0.7

0.6

0.8

0.5

0.4

0.7

0.7

0.6

0.7

0.7

0.5

80(3")

0.7

0.7

0.6

0.7

0.5

0.4

0.7

0.7

0.6

0.7

0.7

0.5

100(4")

0.7

0.7

0.6

0.6

0.5

0.4

0.7

0.7

0.6

0.7

0.6

0.5

125(5")

0.5

0.5

0.4

0.5

0.4

0.3

0.5

0.5

0.4

0.5

0.5

0.4

150(6")

0.5

0.5

0.4

0.5

0.3

0.2

0.5

0.5

0.4

0.5

0.4

0.3

200(8")

0.3

0.3

0.2

0.4

0.25

0.2

0.3

0.3

0.2

0.3

0.3

0.25

250 (10")

0.3

0.3

0.2

0.4

0.25

0.2

0.3

0.3

0.2

0.3

0.3

0.2

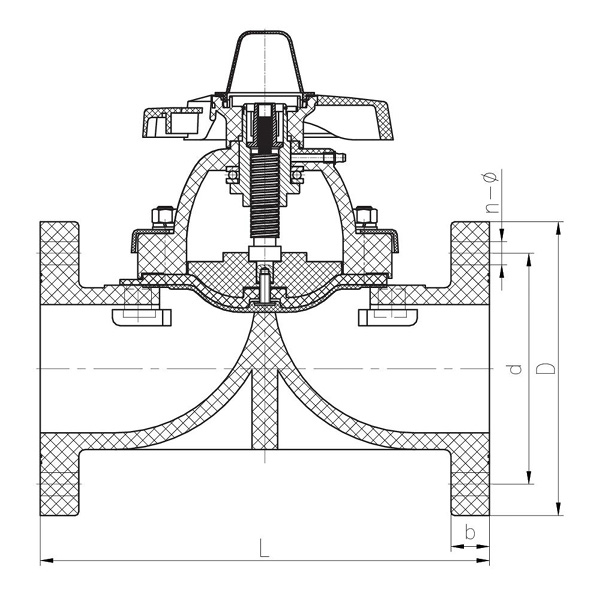

Dimension List

DN(mm) D d L b n-Φ
GB JIS ANSI GB JIS ANSI GB JIS ANSI GB JIS ANSI GB JIS ANSI
15(1/2") 95 95 95 65 70 60.3 125 125 125 14 18 14 4-Φ14 4-Φ15 4-Φ16
20(3/4") 100 100 100 75 75 69.9 135 120 135 18 18 18 4-Φ14 4-Φ15 4-Φ16
25(1") 115 125 115 85 90 79.4 145 130 130 18 18 18 4-Φ14 4-Φ19 4-Φ16
32 (11/4") 135 135 135 100 100 88.9 160 160 160 18 20 18 4-Φ18 4-Φ19 4-Φ16
40 (11/2") 145 140 145 110 105 98.4 180 180 180 20 20 20 4-Φ18 4-Φ19 4-Φ16
50(2") 160 155 160 125 120 120.7 210 210 210 22 22 22 4-Φ18 4-Φ19 4-Φ18
65(21/2") 180 175 180 145 140 139.7 250 250 250 24 22 24 4-Φ18 4-Φ19 4-Φ18
80(3") 195 185 195 160 150 152.4 300 280 300 24 22 24 8-Φ19.5 8-Φ19 4-Φ18
100(4") 229 210 229 180 175 190.5 350 340 350 28 24 28 8-Φ19X21 8-Φ19 8-Φ18
125(5") 245 210 210 215.9 400 30 8-Φ18 8-Φ23 8-Φ22
150(6") 280 240 240 241.3 455 30 8-Φ23X27 8-Φ23X27 8-Φ23X27
200(8") 335 295 290 298.5 570 40 8-Φ22.5 12-Φ23 8-Φ22
250(10") 390 350 355 362 680 38 12-Φ23 12-Φ25 12-Φ26
300(12") 445 400 400 680 38 12-Φ23 16-Φ25
